Meyn 0100-5 - The Bottom Cam; Position of the Cams; In Feed Side

Disassembly/assembly and adjustments
42 © Meyn Food Processing Technology B.V.
7.2.2.5 The bottom cam

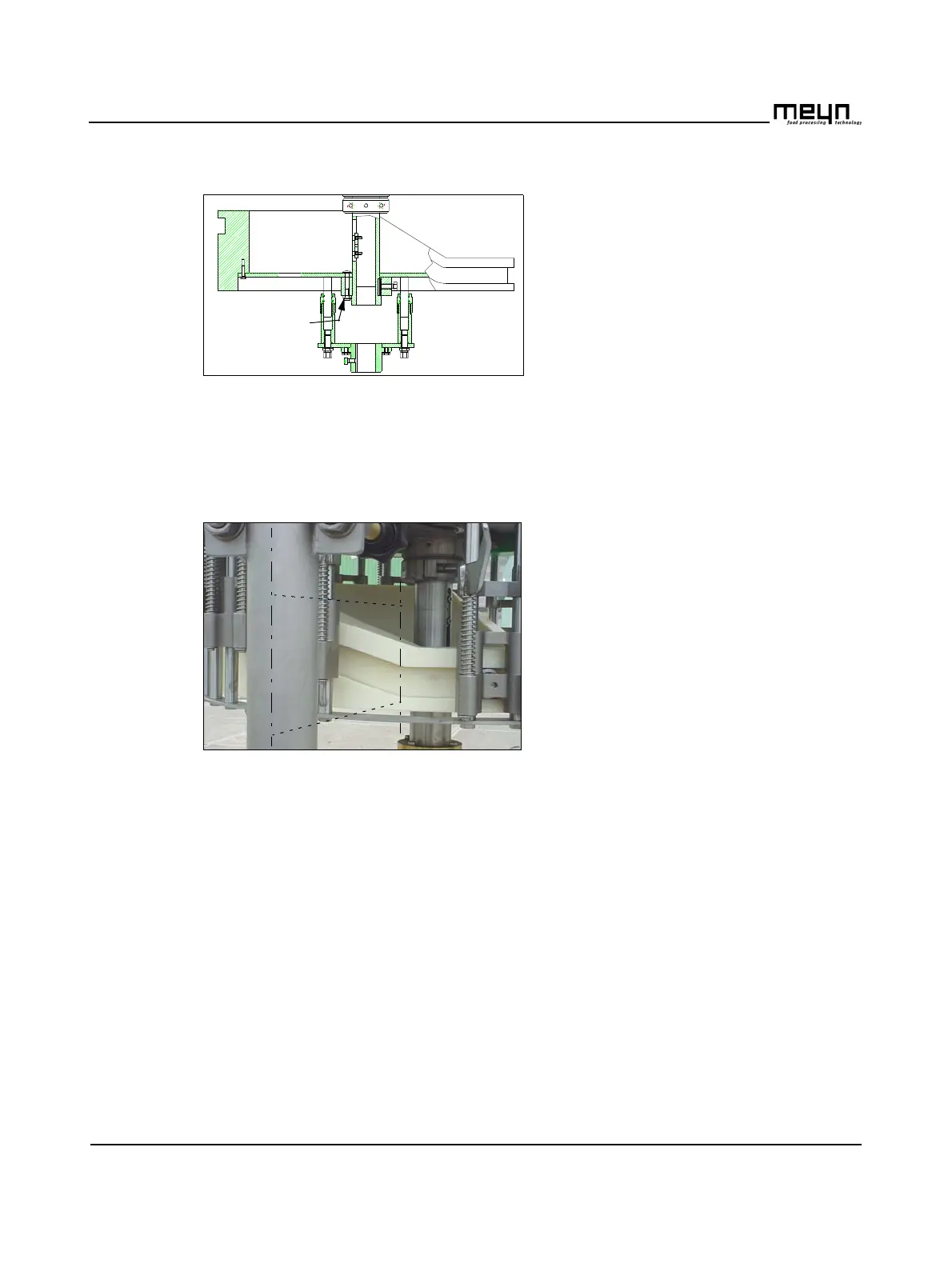

Figure 7.14 Adjust the bottom cam.
Adjust the bottom cam.
• Loosen four nuts (A).
• Turn the cam in the desired position.
• Tighten the nuts (A).
7.2.3 Position of the cams
7.2.3.1 In feed side
Figure 7.15 Out feed side
• The bend (A) in the curve must be in
line with the centre line (B) of the water
pipe.
A
A
B
B
