Meyn 0100-5 - Back Plate Cam

Disassembly/assembly and adjustments
44 © Meyn Food Processing Technology B.V.
7.2.3.3 Back plate cam

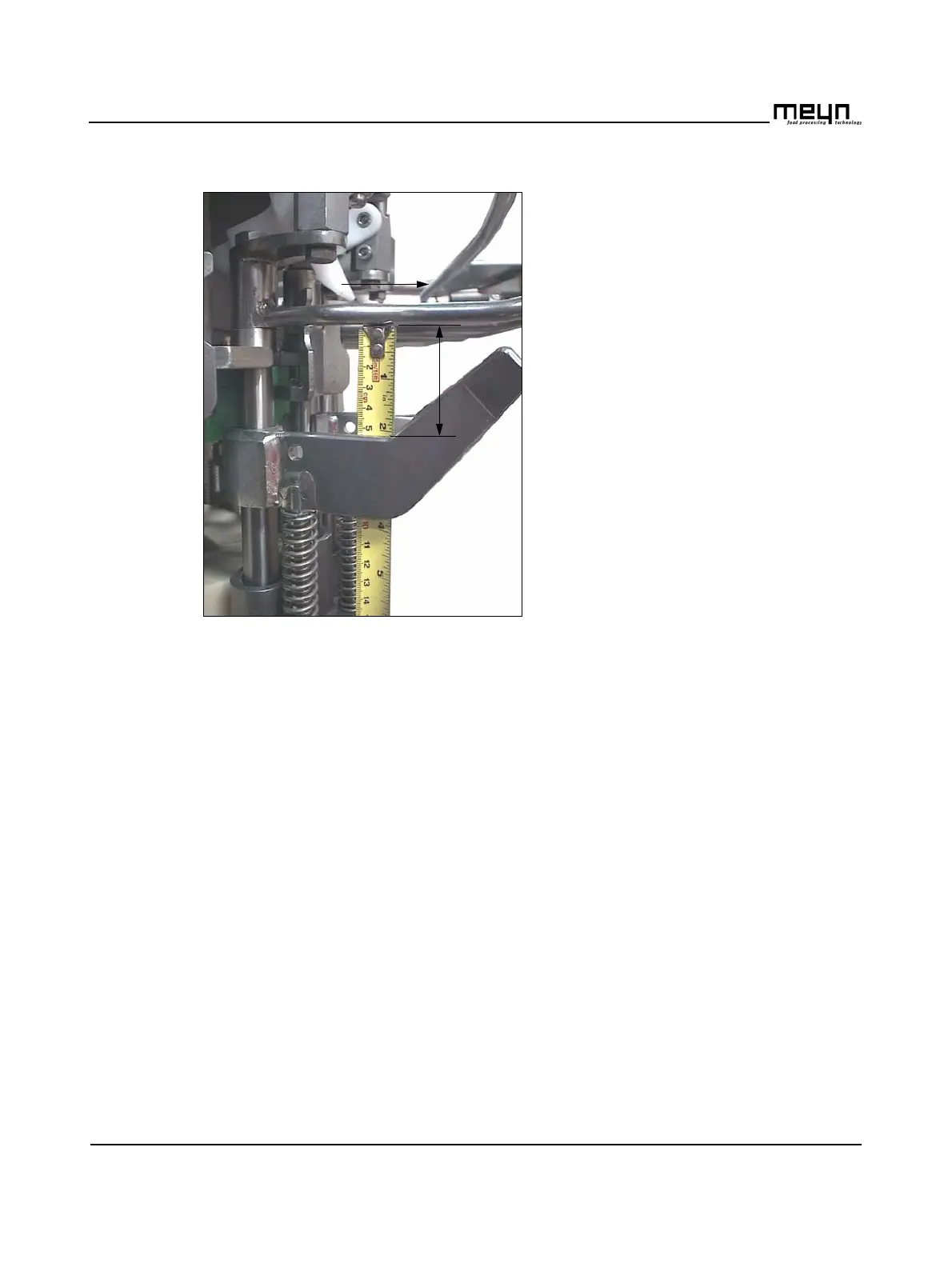

Figure 7.17 Back plate cam
Back plate cam
• The back plate should start to come
out (A) when the distance leg loop, top
lifting unit (X) is approximately 2 inch
(51 mm).
X
A
