Disassembly/assembly and adjustments
© Meyn Food Processing Technology B.V. 45

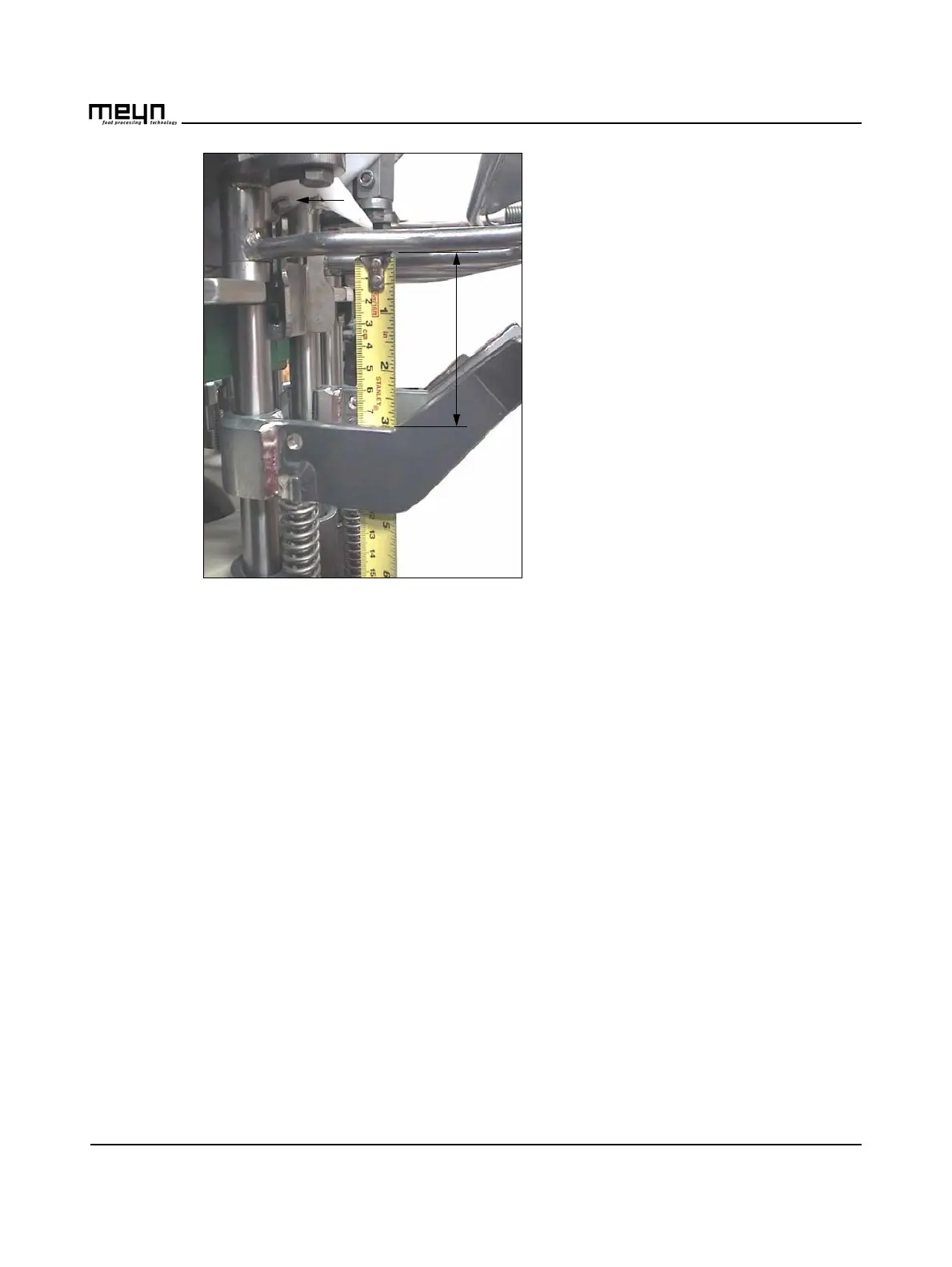

Figure 7.18 Tail clip cam
Tail clip cam
• The tail clip should start to go in when
the distance bottom leg loop:
Top lifting unit is approximately 3 inch
(76 mm).
X
A
