MGE UPS Systems EX-11RT - Rack Configuration; And Optional Transformer Module; System Dimensions and Weights

Installation and User Manual
1.2.2 Rack Configuration

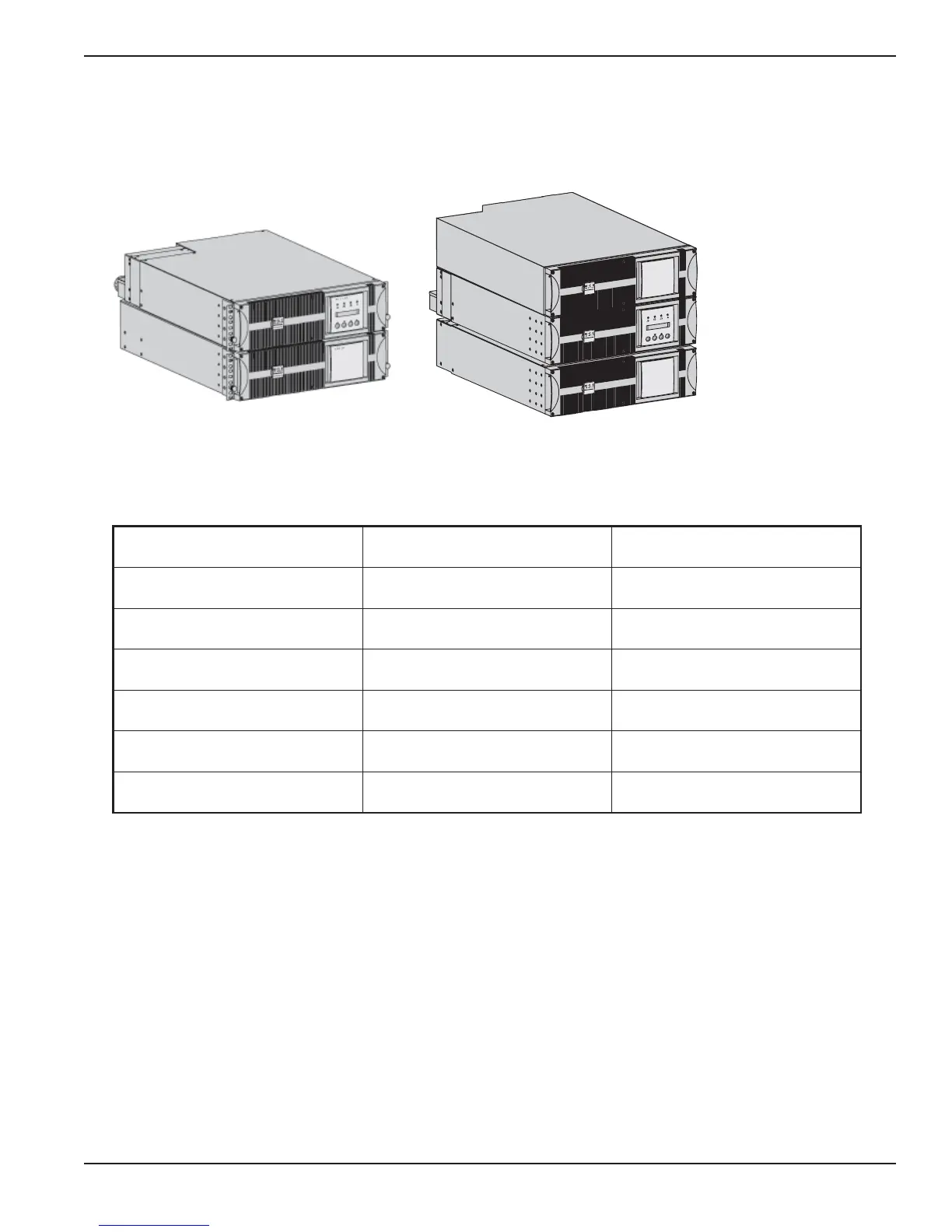

Figure 1-2: Rack Configuration with Power Module, Battery Module, and optional Transformer Module.
Table 1-6: System Dimensions and Weights.
(*) For depth constraint applications, a shorter version of I/O Box for Power Module is available. With this
version of I/O Box, the overall depth of the EX 5/7/11RT is only 24.75” (629mm). Call Customer Care
Center at 1-800 438-7373 for more details.
Introduction 1 — 586-86000-00 B00
POWER MODULE
(EX 5/7/11 RT)
BATTERY MODULE
(EXB 5/7/11 RT)
w
w
w
.
m
g
e
u
p
s
.
c
o
m
w
w
w
.
m
g
e
u
p
s
.
c
o
m
O
F
F
O
N
EX 11 R
T
E
XB
RT
w
w
w
.m
g
e
u
p
s
.
c
o
m
EX RT
Tran s
former
POWER MODULE
(EX 5/7/11 RT)
BATTERY MODULE
(EXB 5/7/11 RT)
TRANSFORMER MODULE
Standard Configuration Configuration with Transformer
Model Dimensions (HxWxD) Weights
EX 5/7RT Power Module
(3U) 5.16” x 17.49” x 26.25”(*)
(131 x 444 x 667mm)
49.6 lbs (22.5 kg)
EX 11RT Power Module
(3U) 5.16” x 17.49” x 26.25”(*)
(131 x 444 x 667mm)
60.6 lbs (27.6 kg)
EXB 5/7RT Battery Module
(3U) 5.16” x 17.49” x 25”
(131 x 444 x 635mm)
142 lbs (64.5 kg)
EXB 11RT Battery Module
(3U) 5.16” x 17.49” x 25”
(131 x 444 x 635mm)
151 lbs (68.5 kg)
EX RT Transformer Module
(3U) 5.16” x 17.49” x 25”
(131 x 444 x 635mm)
173 lbs (78.5 kg)
CLA Charger Module (3U) 5.16” x 17.5” x 25 26.5 lbs (12 kg)
