6.7. Print Stations

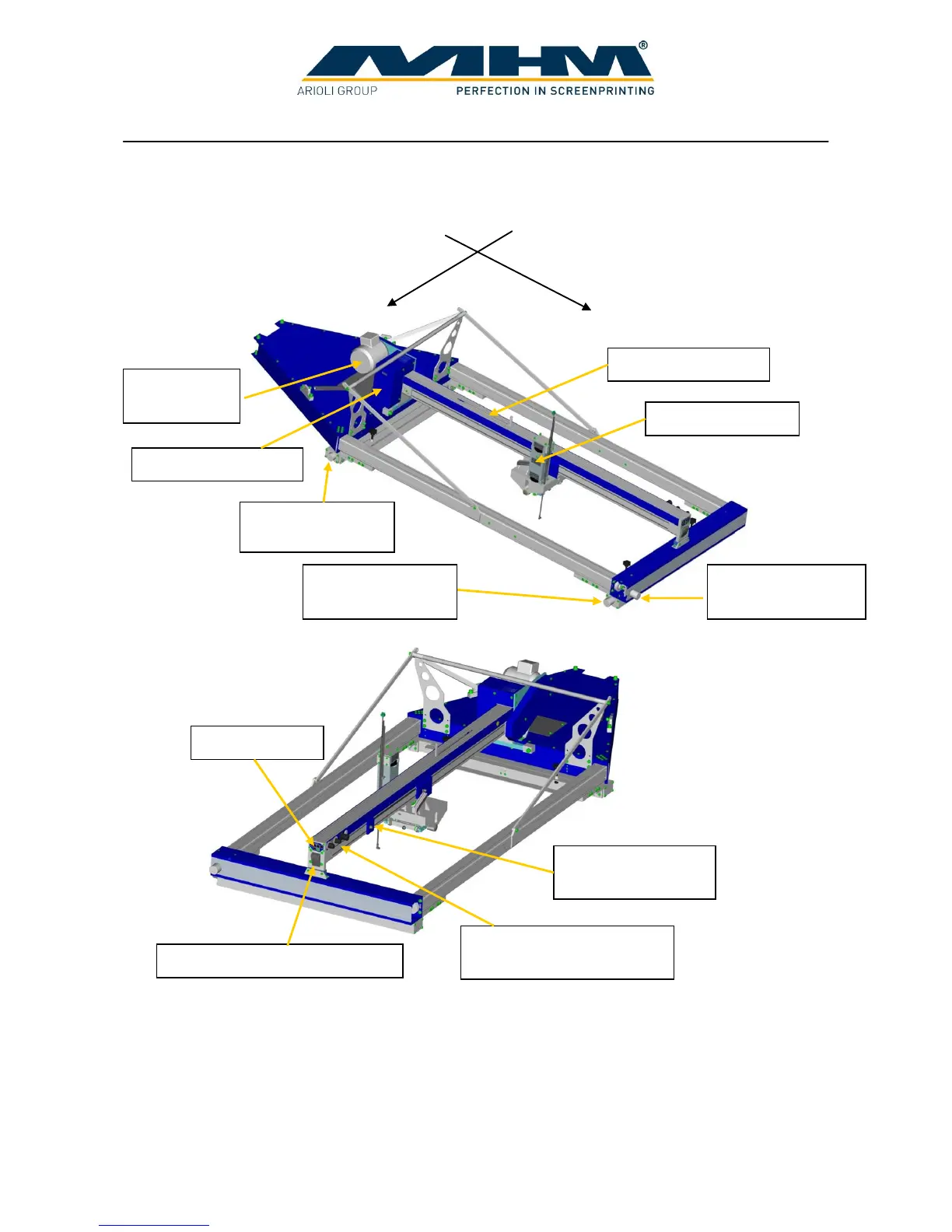

6.7.1. Overview Print Stations
The print stations are used for printing individual colours on to textiles/garments. The Synchroprint
3000 may be ordered with a maximum of up to 18 print stations. The following sections include a
detailed description of the individual components.
Squeegee
drive motor
Frequency converter
Squeegee carriage
Squeegee/print arm
Squeegee stroke
length adjustment
Screen adjustment
Left/right - rear
Screen adjustment
Forward/backward
Control keypad
Squeegee carriage speed &
pressure controls
Squeegee/print arm lock-down
X-axis
Y-axis
Screen adjustment
Left/right - front
