Operating Instructions - Synchroprint 3000 (Manual-Registration Version)
________________________________________________________________________________
Operating Instructions - Synchrprint 3000 (Manual-Registration Version) V1-1 Page 25 of 49
6.8. Additional equipment

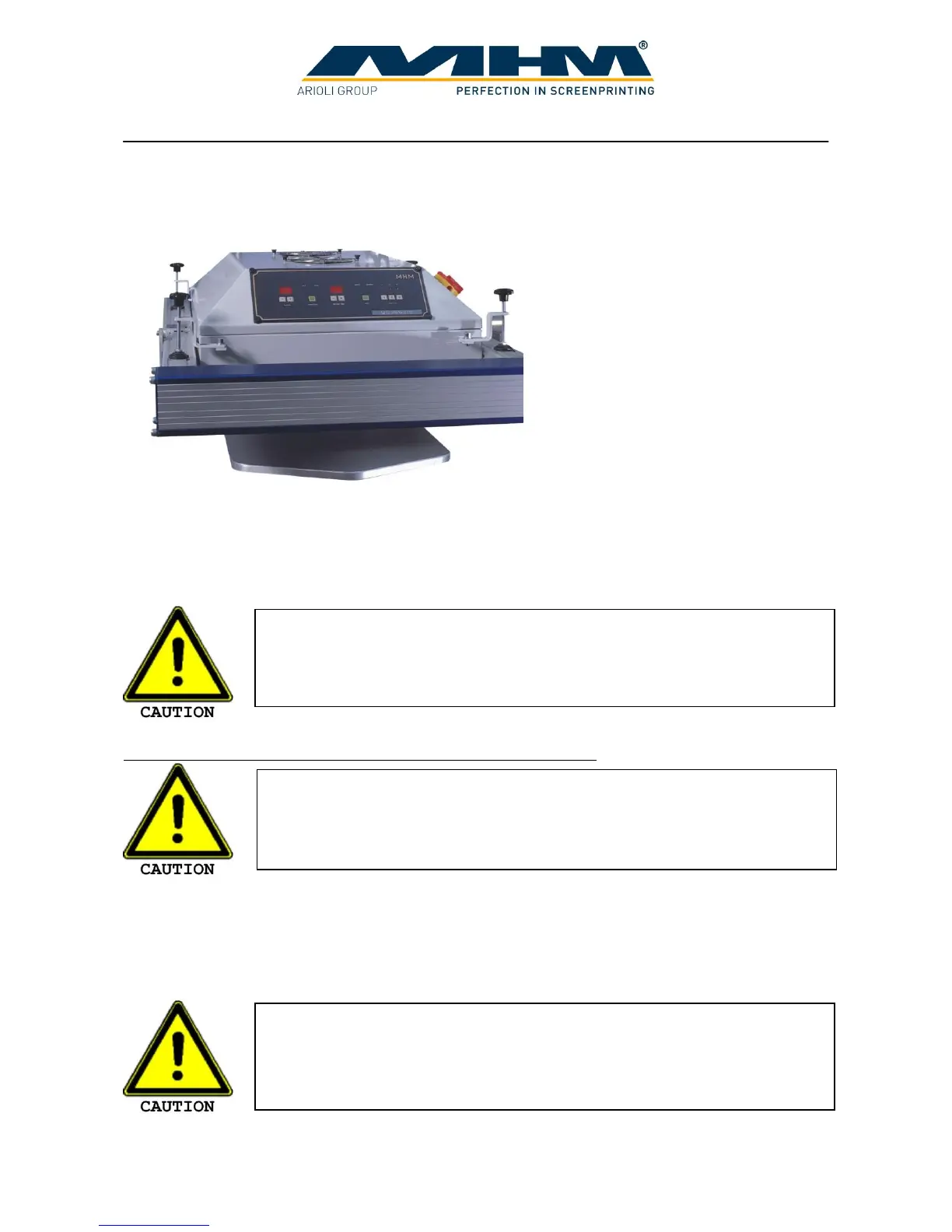

6.8.1. Flash Cure Units
Flash cure units may be installed into either an empty station or a print station. The flash cure unit
must be powered by a separate supply, which should comply with the electrical data supplied by the
manufacturer (see data sheet for flash cure units). When installing into an empty station the unit is
controlled through a data lead which connects to a socket located at the rear of the station. When
installing into a print station this socket is located at the rear of the squeegee/print arm.
Procedure for the installation of a flash cure unit into a print station
Move the squeegee carriage back to its furthest rear stop position before installing the flash cure
unit into the print station. Subsequently, the electrical supply and data lead should be connected. An
empty/blank screen frame (without mesh) should be loaded in the position of a normal screen in
order to push and hold the screen holders away from the heated area to prevent any damage.
Before inserting a flash cure unit into a print station the respective print station
must be deactivated from the main control panel.
The pallets are only warranted to withstand temperatures of up to a maximum
of 150° C. Exceeding this temperature will result in cancellation of the
warranty for the pallets.
When connecting the flash cure unit make absolutely sure to keep the all
cables away from any moving parts (especially the turntable/moving pallets
etc). Failure to do so may result in damage to the cable along with serious
electrical damage to the flash cure unit and machinery.
