Operating Instructions - Synchroprint 3000 (Manual-Registration Version)
________________________________________________________________________________
Operating Instructions - Synchrprint 3000 (Manual-Registration Version) V1-1 Page 34 of 49

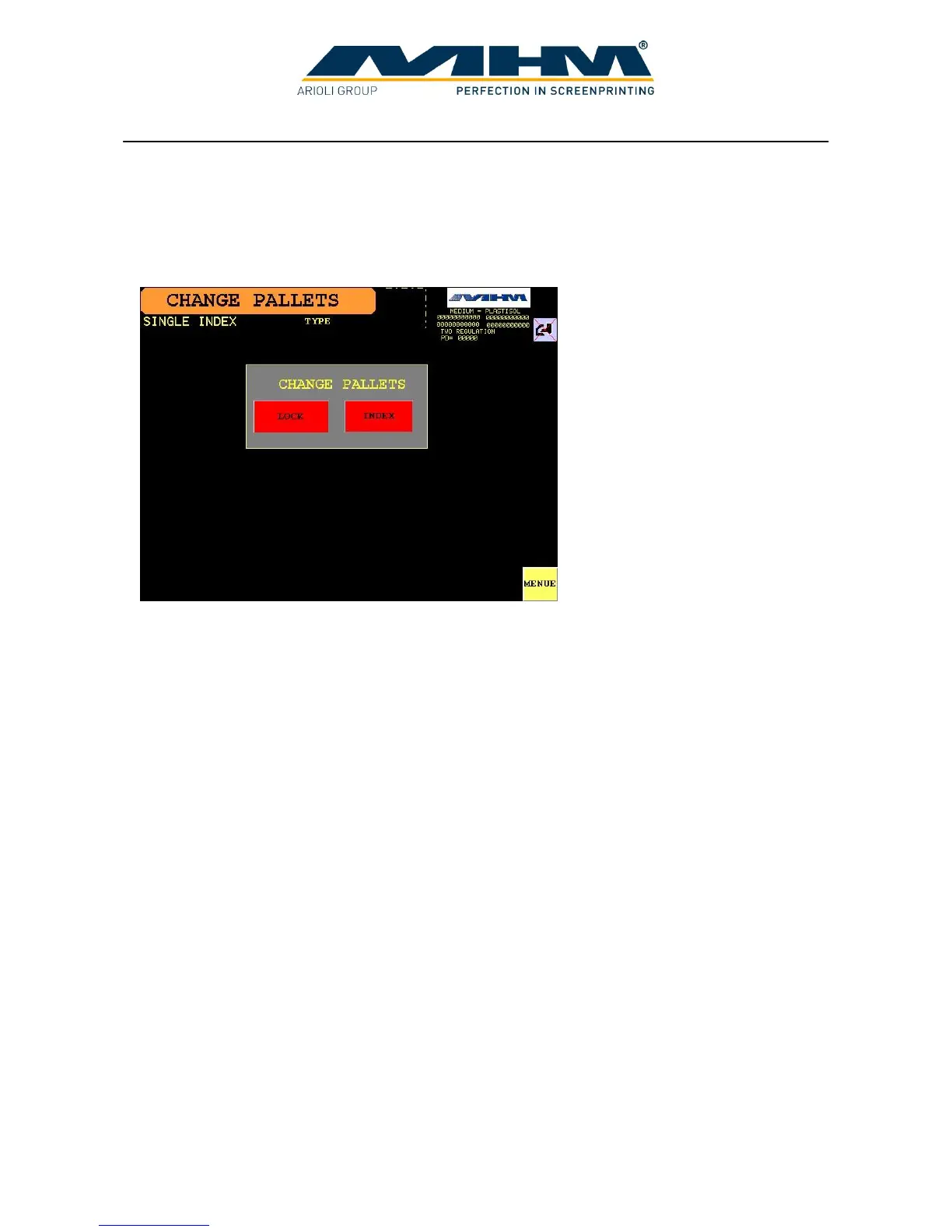

7.6.1. Command screen ‘CHANGE PALLETS’
This screen allows the operator to lock or release the pallets by the touch of a single key and
rotate/index the turntable to facilitate remarkably fast pallet changeover.
LOCK This key locks or releases the pallets at the load/unload stations
simultaneously.
INDEX Once ‘unlock’ is activated, pressing this key will immediately lock the
pallets and rotates the turntable by a double index, and unlock the next
two pallets to be changed. If ‘lock’ is activated, then one index/rotation
will be carried out.
MENU Press to exit this screen and revert back to the ‘MENU’ screen.
