MHSC CDVR33 - Fireplace Location

10 69D0023
Y
E
A
B
C
D
F
Y
X
CDV Series Gas Fireplace
PRE-INSTALLATION INFORMATION
FIREPLACE LOCATION
Plan for the installation of your appliance. This includes determining where the unit is to be installed,
the vent conguration to be used, framing and nishing details, and whether any optional accessories
(i.e. blower, wall switch, or remote control) are desired. Consult your local building code agency to
ensure compliance with local codes, including permits and inspections.
The following factors should be taken into consideration:
• Clearance to side-wall, ceiling, woodwork, and windows. Minimum clearances to combustibles

• This replace may be installed along a wall, across a corner, or use an exterior chase. See Figure
6 for suggested locations.
• Location should be out of high trafc areas and away from furniture and draperies due to heat
from appliance.
• Never obstruct the front opening of the replace.
• Do not install in the vicinity where gasoline or other ammable liquids may be stored.
• Vent pipe routing. See Venting section found in this manual for allowable venting congura-
tions.
• These units can be installed in a bedroom. See National Fuel Gas Code ANSI Z233.1/NFPA 54
— (current edition), the Uniform Mechanical Code — (current edition), and Local Building Codes
for specic installation requirements.

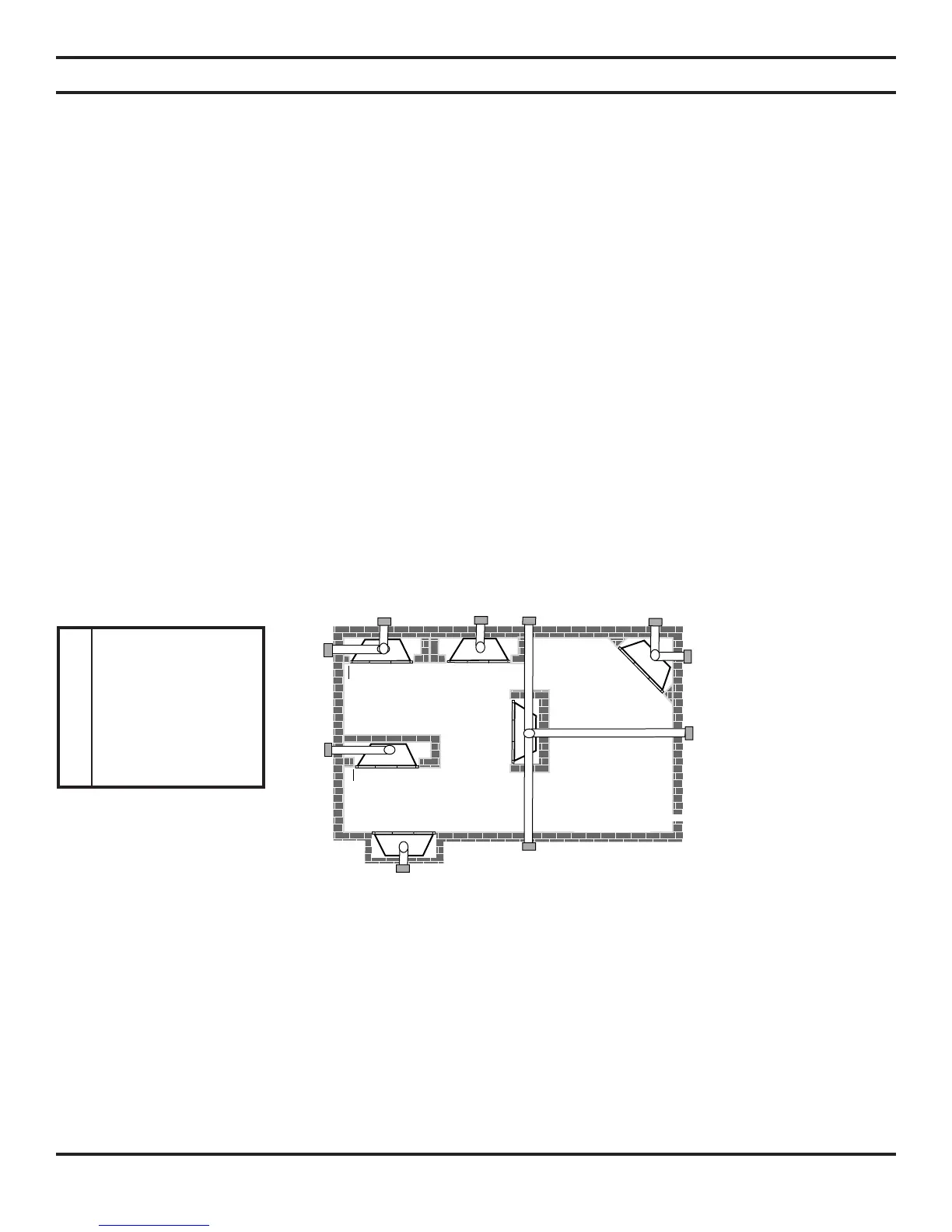

Figure 6 - Locating Gas Fireplace
A Flat on Wall
B Cross Corner
C Island**
D Room Divider*
E Flat on Wall Corner*
F Chase Installation
Y 4" Minimum
** Island (C) and room divider (D) installation is possible as long as the horizontal portion of vent system (X)
does not exceed 20'. See Installing Horizontal Termination Conguration on pages 18 and 19.
* When you install your replace in (D) room divider or (E) at on wall corner positions (Y), a minimum of 4"
clearance must be maintained from perpendicular wall and front of replace.
