MHSC CDVR33 - Vent Components

52 69D0023
CDV Series Gas Fireplace
VENT COMPONENTS
H
O
T
1
3
4
5
6
7
8
9
10
2

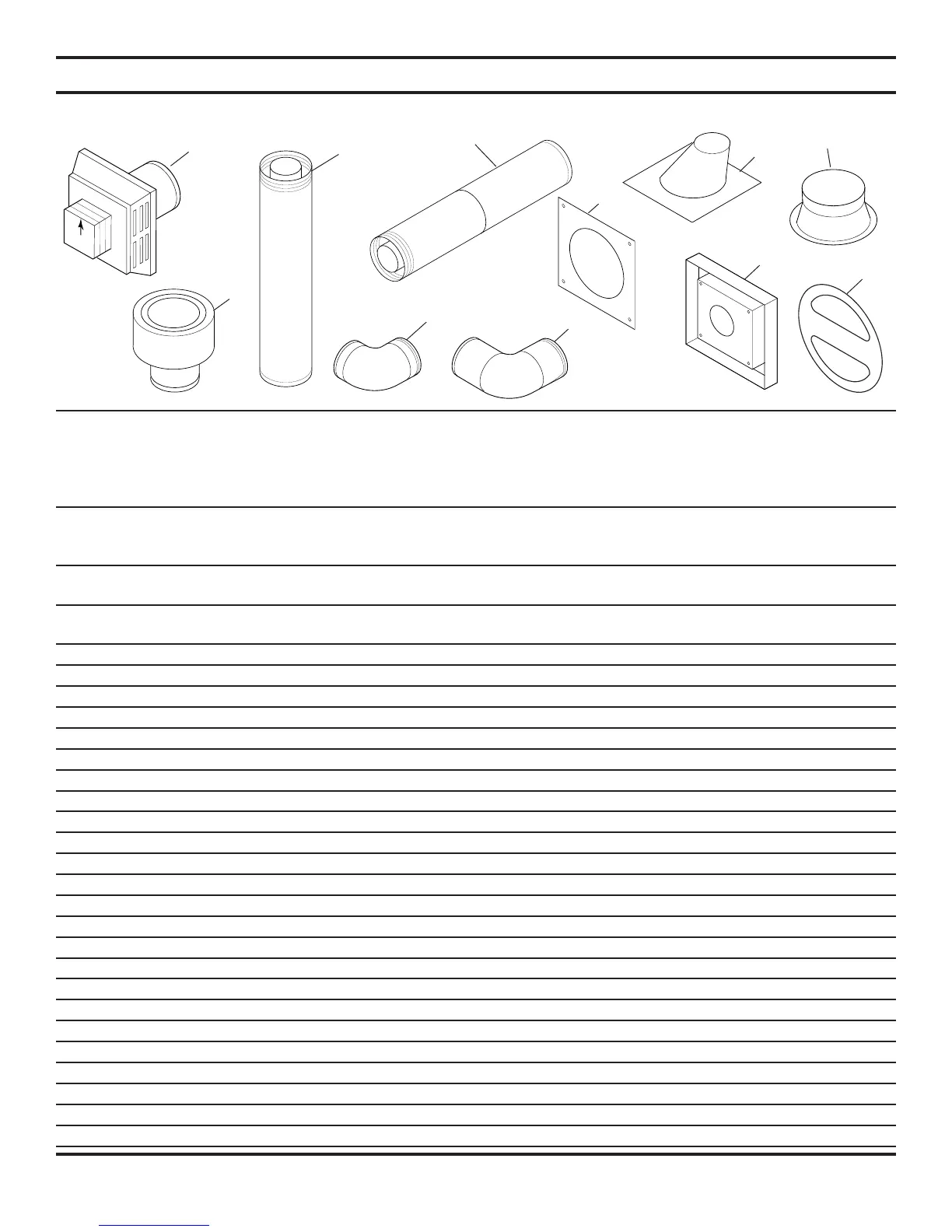

ILLUSTRATED PARTS LIST
11
Current Old
     
Duravent Duravent
      
      
1 1 Side wall Flexible Pipe Termination Kit BHSFTKA BHSFTK --
Includes termination cap with built-in vinyl siding standoff, heat
deector, restop, 20" to 48" exible pipe and adapter
2 1 Thru-roof Flexible Pipe Termination Kit with ex adapter 24" rigid TRFK -- --
pipe, storm collar, cap and roof support 4" x 6
5
/8"
1 1 Horizontal Square Termination Cap with built-in vinyl siding standoff, BHRTK BHRTK --
heat deector and restop
1 1 Square Horizontal Termination Cap 46DVA-HC 985 4DT-HC
1 1 Round Horizontal Termination Cap 46DVS-HRCS -- --
1 1 Sconce Termination Cap (aluminum) 46DVA-HSC -- --
2 1 Low-Prole Vertical Termination Cap 46DVA-VC 980 4DT-VC
3 6 6" Pipe Length (galvanized) 46DVA-06 908 4DT-06
3 6 9" Pipe Length (galvanized) 46DVA-09 907 4DT-09
3 6 12" Pipe Length (galvanized) 46DVA-12 906 4DT-1
3 6 24" Pipe Length (galvanized) 46DVA-24 904 4DT-4
3 6 36" Pipe Length (galvanized) 46DVA-36 903 4DT-36
3 6 48" Pipe Length (galvanized) 46DVA-48 902 4DT-48
4 6 8
1
/2" Pipe Extension (galvanized) 46DVA-08A -- 4DT-AJ
4 6 16" Pipe Extension (galvanized) 46DVA-16A -- 4DT-AJ14
5 6 45° Elbow (galvanized) 46DVA-E45 945 4DT-EL45
6 6 90° Elbow (galvanized) 46DVA-E90 990 4DT-EL90
7 6 Adjustable Roof Flashing 0/12 - 6/12 46DVA-F6 943 4DT-AF6
8 6 Storm Collar 46DVA-SC 953 4DT-SC
9 6 1" Firestop 46DVA-FS 963 4DT-FS
9 6 3" Firestop FS3 -- --
10 1 Vinyl Siding Standoff 46DVA-VSS 950 4DT-VS
11 1 Restrictor Disk 45D0551 45D0551 --
1 Attic Insulation Shield 46DVA-IS -- --
7 6 Steep Roof Flashing 7/12 - 12/12 46DVA-F12 943S --
8 Horizontal Termination with 1" restop BHRT/8 -- --
8 Flex Adapter Starter DVFA/8 -- --
