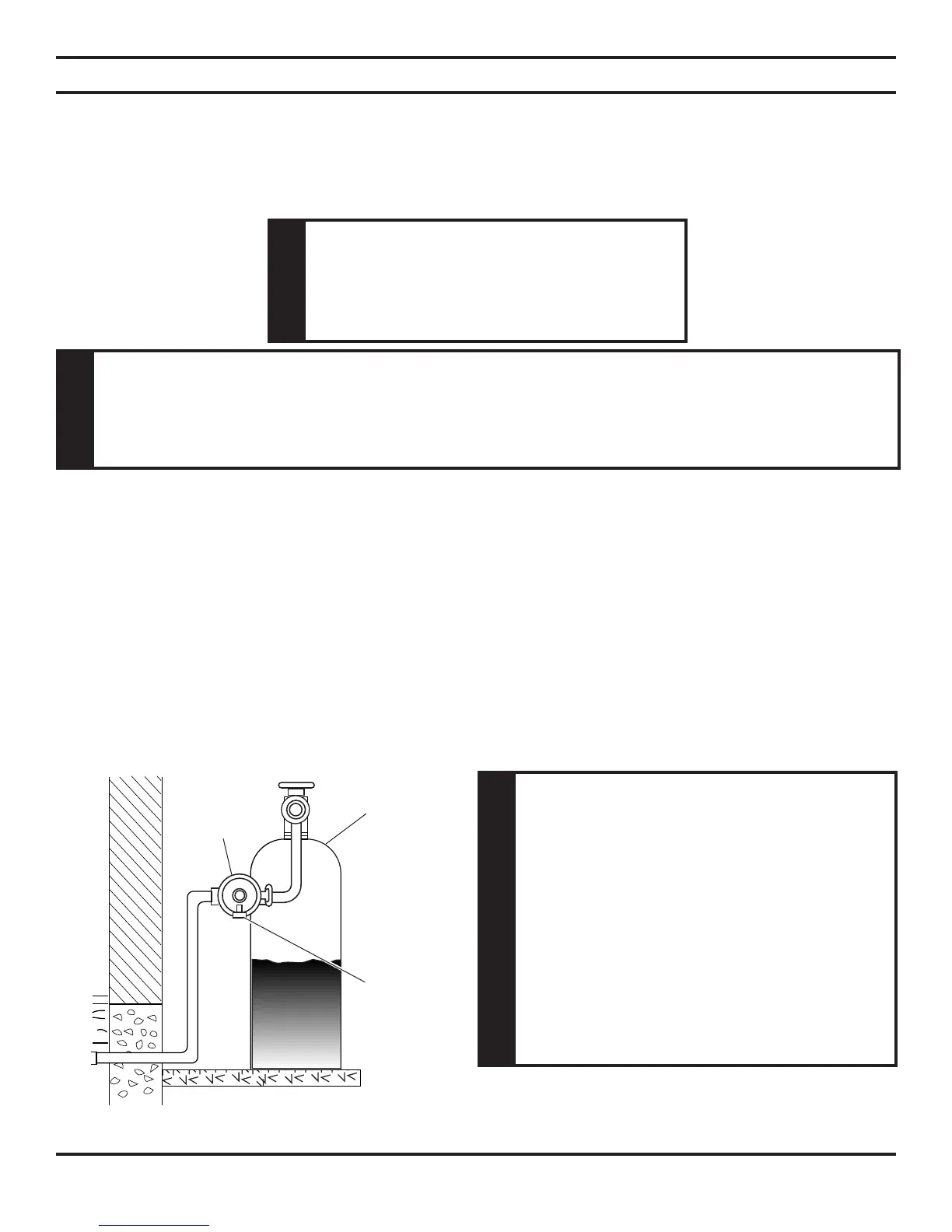

Figure 40 - External Regulator with Vent Pointing
Down (Propane/LP Only)
CDV Series Gas Fireplace
FIREPLACE INSTALLATION
CHECK GAS TYPE
Use proper gas type for the replace you are installing. If you have conicting gas type, do not install replace.
See dealer where you purchased the replace for proper replace for your gas type or conversion kit.
INSTALLATION ITEMS NEEDED
Before installing replace and burner system, make sure you have the items listed below.
• External regulator (supplied by installer) • Piping (check local codes) •
Sealant (resistant to propane/LP gas) • Equipment shutoff valve* • Test gauge connection* •
Sediment trap (recommended)
• Tee joint • Pipe wrench
• approved exible gas line with gas connector (if allowed by local codes — not provided)
* A CSA design-certied equipment shutoff valve with 1/8" NPT tap is an acceptable alternative to test gauge
connection. Purchase the CSA design-certied equipment shutoff valve from your dealer.
For propane/LP connections only, the installer must supply an external regulator. The external regulator will reduce
incoming gas pressure. You must reduce incoming gas pressure to between 11 and 13 inches of water. If you do
not reduce incoming gas pressure, burner system regulator damage could occur. Install external regulator with
the vent pointing down as shown in Figure 40. Pointing the vent down protects it from freezing rain or sleet.
External
Regulator
100 lb. (min)
Propane/LP
Supply Tank
Vent
Pointing
Down
When using copper of ex connectors use only ttings
approved for gas connections. The gas control inlet is
3/8" NPT.
WARNING
Follow all local codes.
CAUTION
other appliance.
CAUTION
Internally tinned copper or copper
Fuel Code, section 2.6.3, providing
loss will occur if the pipe is too
To Next Page
