CDV Series Gas Fireplace
VENT INSTALLATION
A Minimum of 3" Clearance
to the Top Is Required Along
Horizontal Length until Flue
Pipe Penetrates Outside Wall.
A Minimum 1"
Clearance to
Combustibles
Permitted All
Around Flue
at Outside
Wall

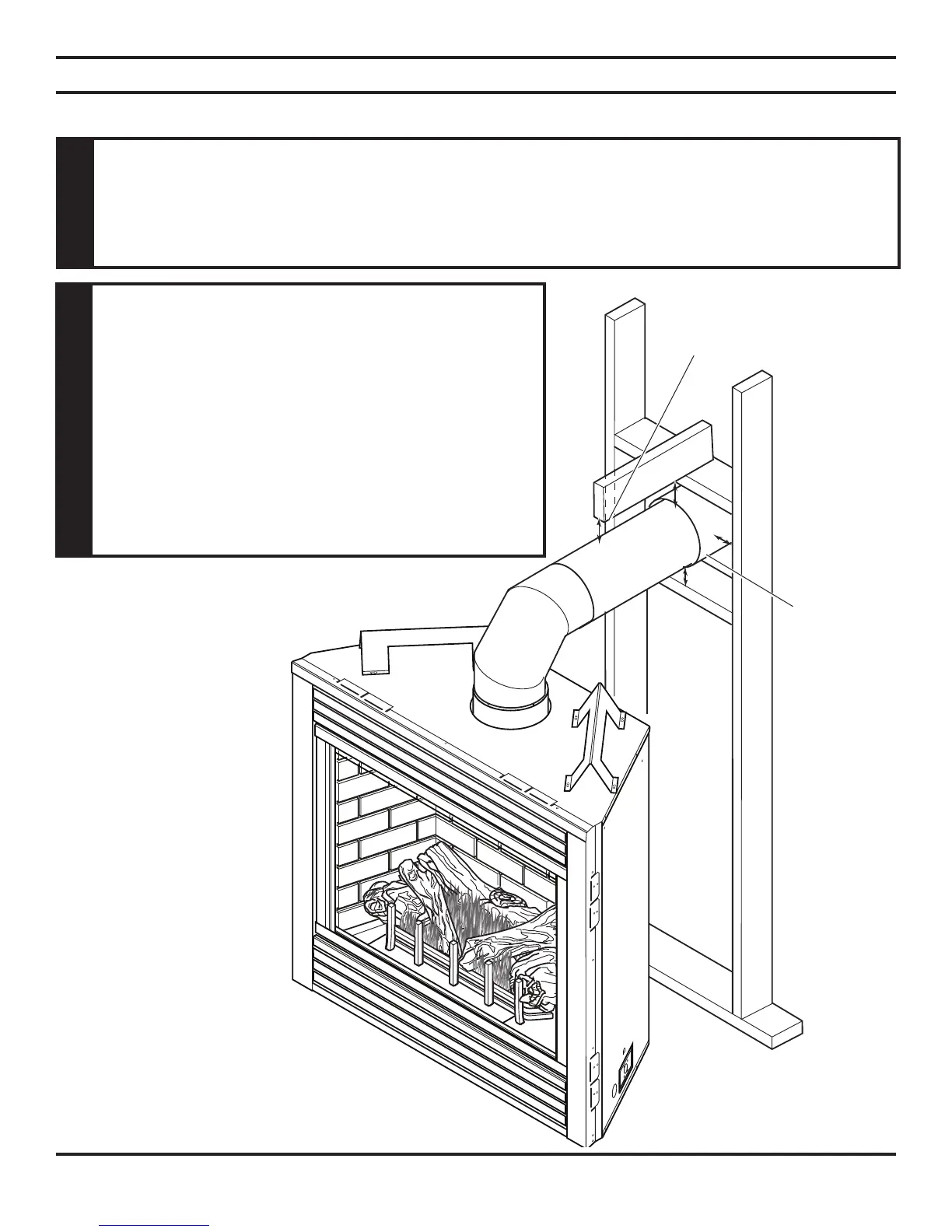

Figure 10 -
Combustible Clearances for Vent Pipe - CDVT Series
TOP VENT INSTALLATION
WARNING
until the ue penetrates the outside wall.
rise is 7
1
2 feet or higher when top venting, the
sides of the pipe.
WARNING
To Next Page
