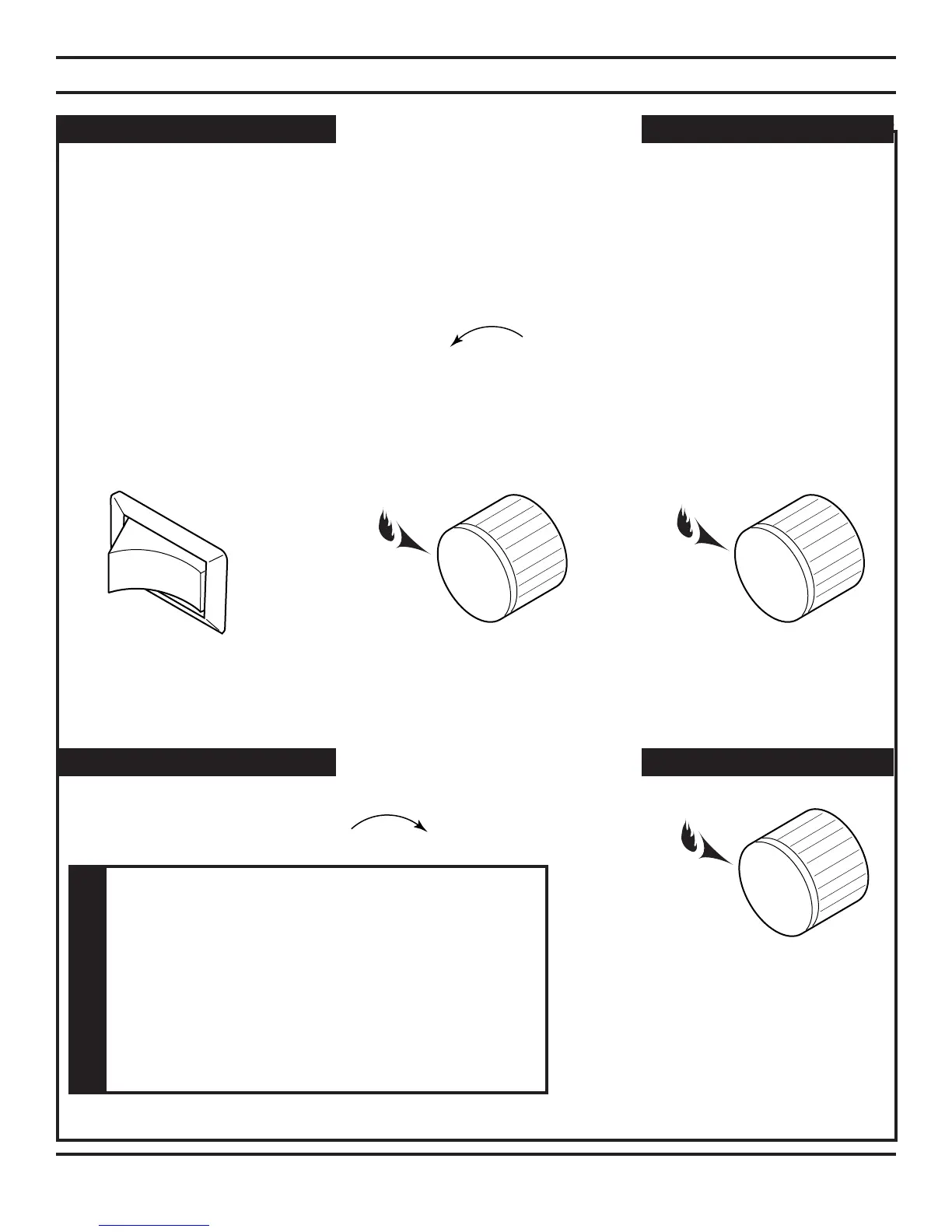

MHSC CDVR33 - Lighting Burner; To Turn off Gas

69D0023 39
T
P
I
L
O
T
O
F
F
P
I
L
O
T
O
N
O
F
F
P
I
L
O
T
O
N
P
I
L
O
T
Figure 54 - On Position
P
I
L
O
T
O
F
F
P
I
L
O
T
O
N
Figure 53 -
On/Off/RS Switch
O
F
F
O
N
RS
CDV Series Gas Fireplace
MILLIVOLT OPERATING INSTRUCTIONS
LIGHTING BURNER
MAIN BURNER SWITCH
The “ON/OFF/RS” switch for the main burner can be found behind door of the replace. This switch
allows you to turn on and to turn off the main burner without using the gas valve knob. Make sure
the button is in the “ON” position to light the main burner. Figure 53
LIGHTING THE BURNER
Depress and turn the knob counterclockwise to the “ON” position. Figure 54. It will take
less than four (4) seconds for the burner to ignite.
PILOT POSITION
Depress and turn knob to pilot position to keep burner off while maintaining the pilot light. Figure
55
Depress and turn knob clockwise to “OFF” position. Figure 56
TO TURN OFF GAS
Figure 56 - Off Position
Figure 55 - Pilot Position
WARNING

device which prevents unsafe ignition of the

   

    


