CDV Series Gas Fireplace
GLASS REMOVAL
GLASS FRAME REMOVAL
1. Remove upper and lower louvers.
2. Release two clamps on bottom of re-
place. Figures 48 and 49.
3. Tilt glass frame out and lift glass frame
up until it clears the hook on top of the
frame.
4. Set glass frame aside.

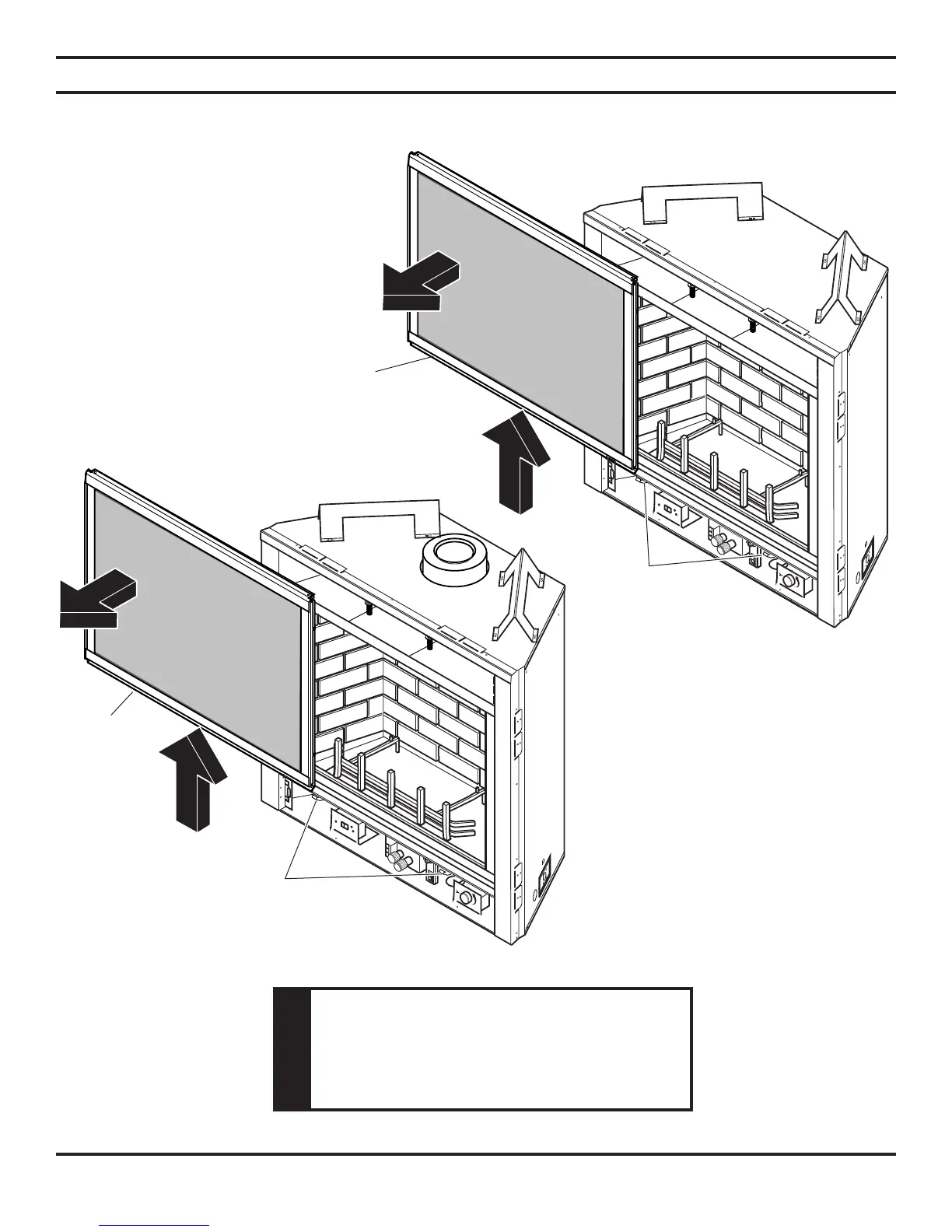

Figure 48 - Removing Glass Frame
- CDVR Series
Glass
Frame
Figure 49 -
Removing Glass Frame - CDVT Series
Glass Frame
Clamps
Clamps
CAUTION
To Next Page
