MHSC CDVR33 - Securing Fireplace To Floor Or Framing

12 69D0023
Drywall Support Tabs
(Do Not Use for Framing
or Header)
CDV Series Gas Fireplace
The replace must be secured to the oor and/or to framing studs as shown in Figure 8. Use two (2) wood screws
or masonry/ concrete screws to secure replace to the oor. Use four (4) screws to attach replace to framing.
The side nailing anges are 1/2" or 5/8" to accommodate different wall thickness.
SECURING FIREPLACE TO FLOOR OR FRAMING

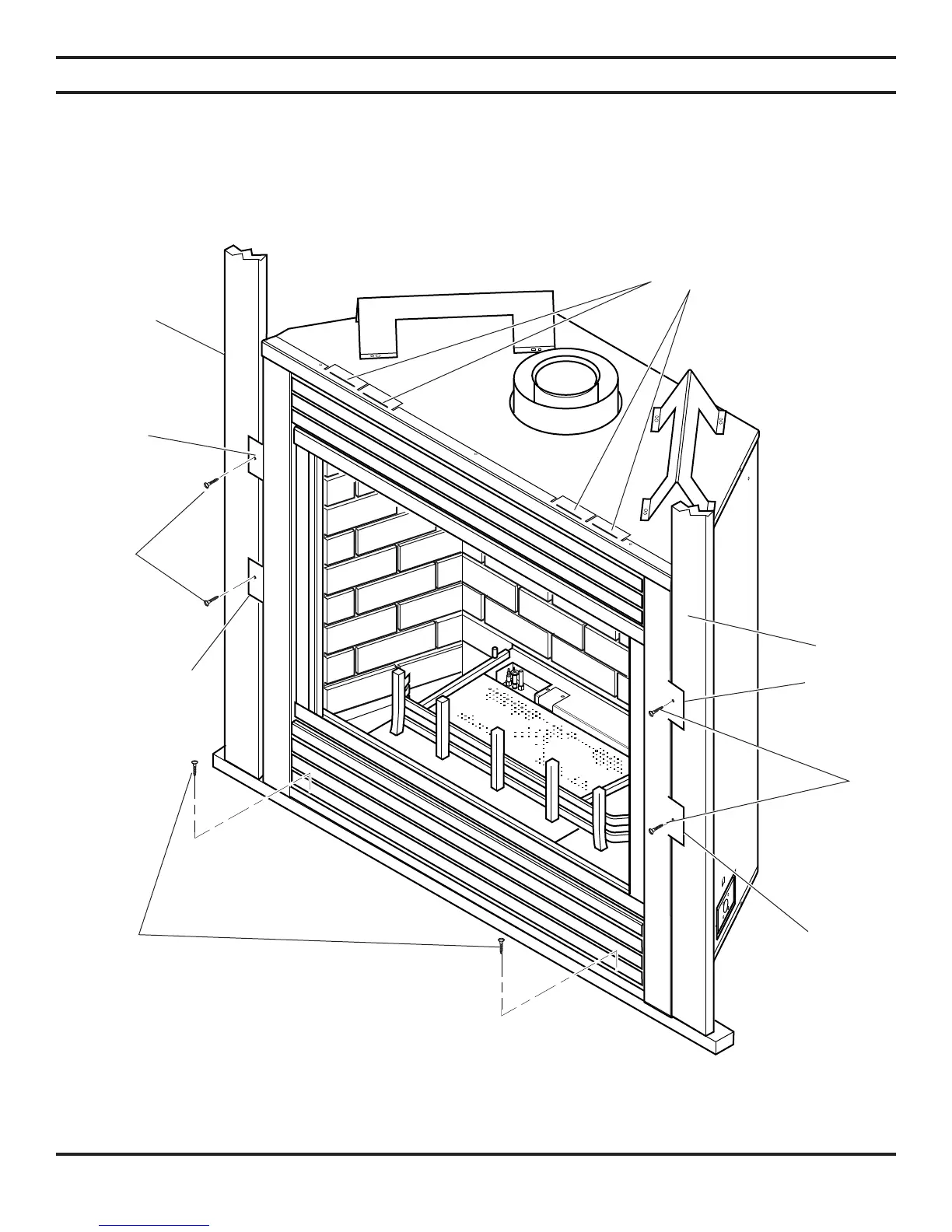

Figure 8 - Securing Fireplace to Floor and Framing Studs (CDVT36 shown)
Screws
Framing
Framing
Nailing
Flange
Nailing
Flange
Screws
Screws
Nailing
Flange
Nailing
Flange
