MHSC CDVR33 - Clearances

69D0023 11
0 - 12"
Maximum
Depth
13” Minimum
71" Minimum
Minimum 6"
CDV Series Gas Fireplace
CLEARANCES
CLEARANCES TO COMBUSTIBLES
MANTEL CLEARANCES
NOTE: The combustible area above the facing must not protrude more than 3/4" from the facing. If it does,
it is considered a mantel and must meet the mantel requirements listed in this manual.

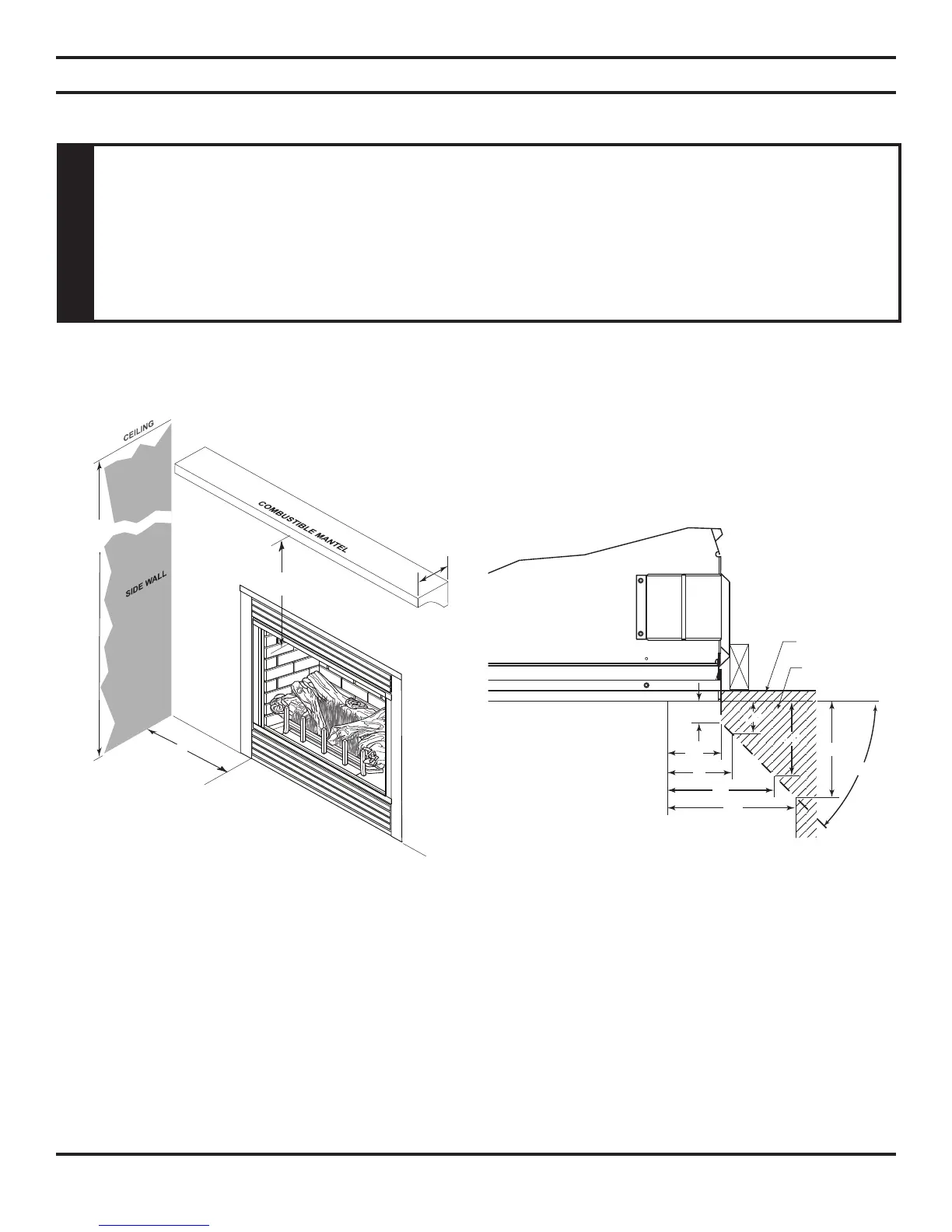

Figure 7 - Clearances from Mantel,
Ceiling and Side Wall
WARNING
Follow these instructions carefully to ensure safe installation. Failure to follow

            


and depth of the appliance.
6"
5"
3"
2.5"
4.5"
45°
3.5"3.5"
1"
1.5"1.5"
Wall
Combustible
Material Area
Figure 7a - Mantel Clearances
