MicroNet SP916NL - 8 Security Settings; Client Filter Settings

8 Security Settings
8.1 Client Filter Settings
You can enable client filter to control LAN computers’ access to some ports
of the Internet：

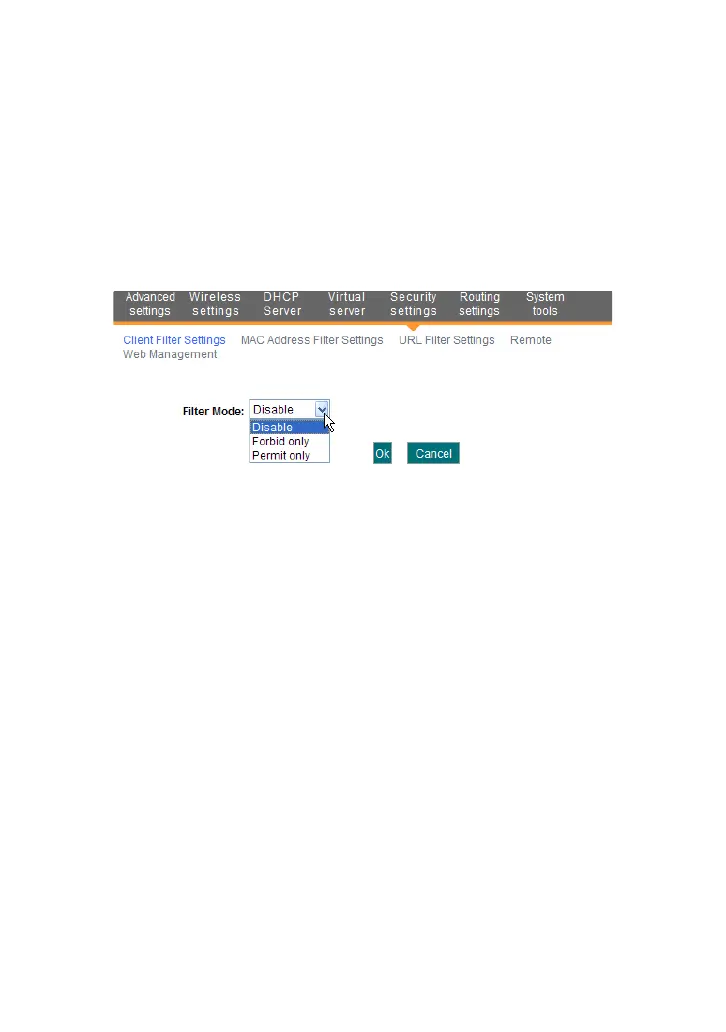

 Filter Mode: You can select either “Permit only” or “Forbid only”.
 Access Policy: Select one number from the drop-down list.
 Remark: A simple description of the configured file. You can also
leave it blank.
 Start/End IP: Enter the start/end IP address.
 Port: Enter the controlled TCP/UDP protocol port. You can specify a
port or port range.
 Type: Select one protocol (TCP/UDP/Both) from the drop-down list.
 Time: Select the time range of client filter.
 Date: Select the day(s) to run the access policy.
 Enable: To enable/disable the access policy (forbid/permit the
packets matched with the access policy to pass through the router.
Example1 Forbid LAN computers at the IP addresses of 192.168.1.100--
192.168.1.120 to access the Internet.
52
