Microsemi SmartFusion2 - Verify Operation Mode; Figure 26 IAP Verification Status; Figure 27 IAP Verification Success

In-Application Programming Using PCIe Interface
DG0584 Demo Guide Revision 5.0 21
2.9.2 Verify Operation Mode
The following steps describe how to verify operation mode:
1. Click Verify in the GUI to verify the SmartFusion2 device FPGA fabric and eNVM contents. The
following figure shows the Verification operation is in progress message.

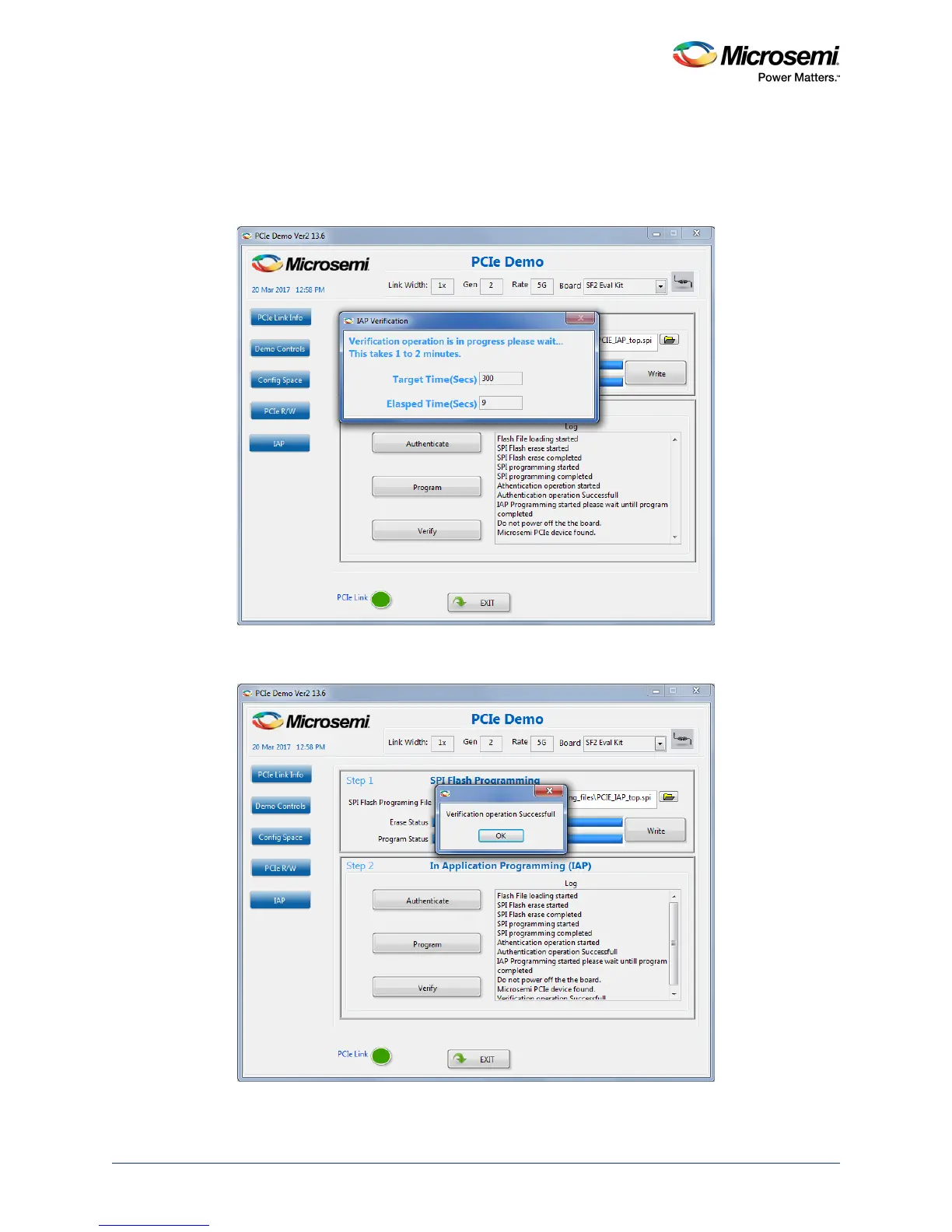

Figure 26 • IAP Verification Status
The following figure shows the Verification operation successful message.
Figure 27 • IAP Verification Success
