Appendix: Implementing Workaround to Access Fabric LSRAM after IAP/ISP Program
Operation
DG0584 Demo Guide Revision 5.0 34

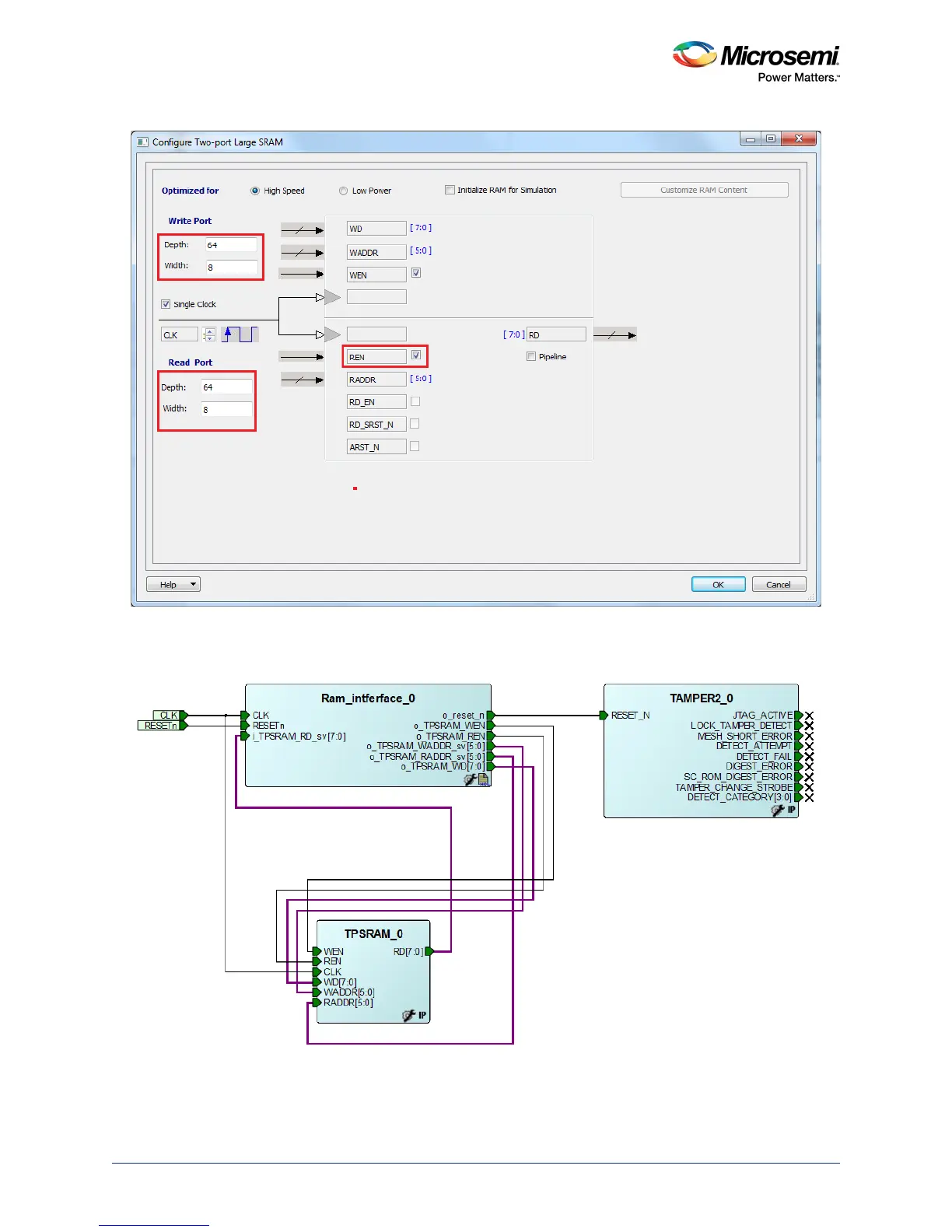

Figure 42 • Two-Port SRAM Configurator Window
7. Connect Tamper Macro, FSM, and TPSRAM, as shown in the following figure.
Figure 43 • Dev_Restart_after_IAP_blk SmartDesign
8. Click the PCIE_IAP_top tab and drag the Dev_Restart_after_IAP_blk component from the Design
Hierarchy to the PCIE_IAP_top SmartDesign canvas.
