Appendix: Hardware Implementation
DG0584 Demo Guide Revision 5.0 28
6.1 Standby Clock Source Configuration
The standby clock source for the MSS in the F*F mode is configured to On-chip 50 MHz RC Oscillator
using the Flash*Freeze Hardware Settings dialog box in the Libero SoC software, as shown in the
following figure. A higher MSS clock frequency is required in the F*F mode to meet the SPI
communication speed requirements.

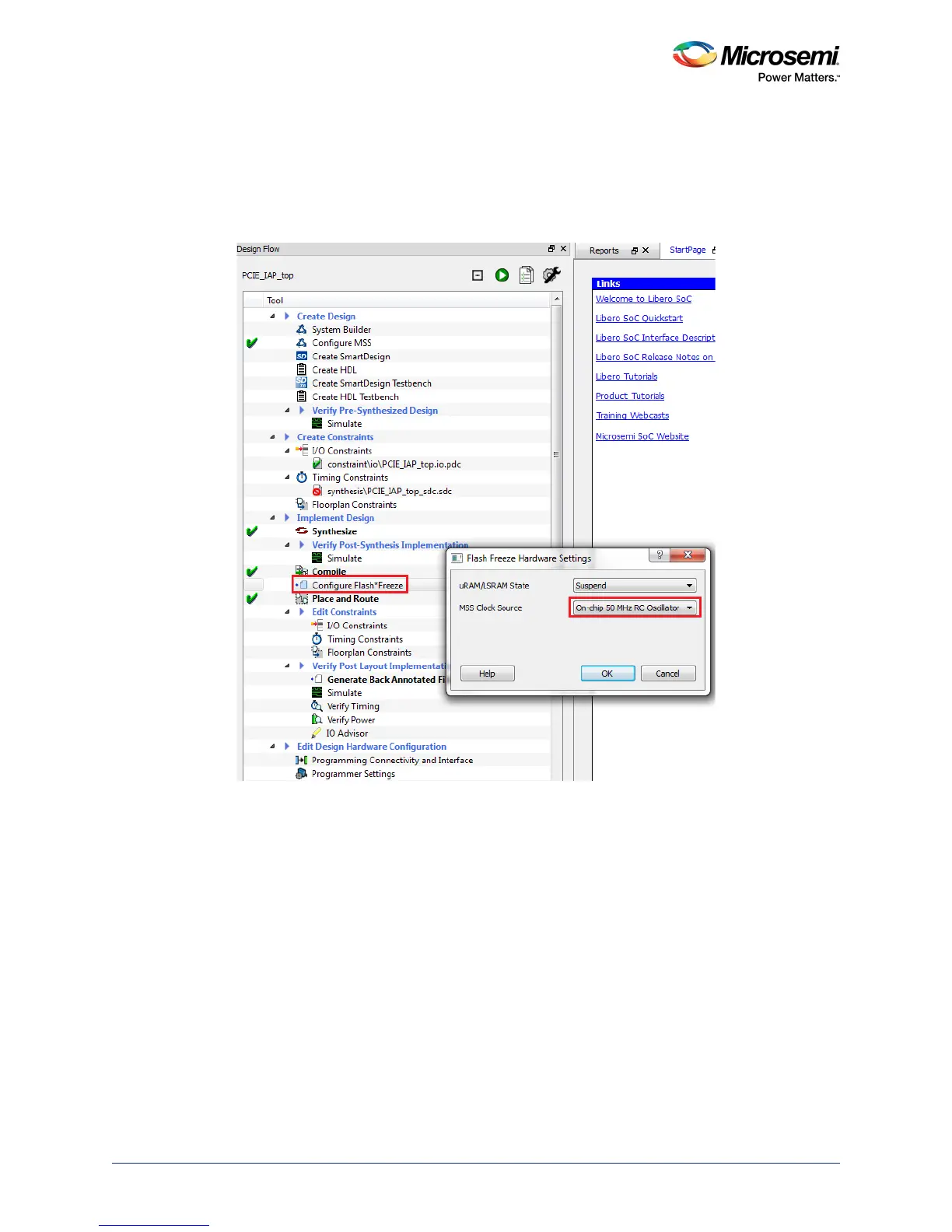

Figure 34 • Flash*Freeze Hardware Settings
