CVA 610/CVA 615 Coffee Systems
5.8 Door Contact Switch (S24) Removal
1. Remove the lid; see Section 5.1.
2. Open the door.
3. Disconnect the door switch connections.
4. Press the switch’s locking tabs inward with a small flathead screwdriver.
5. Remove the door switch out towards the front of the appliance.

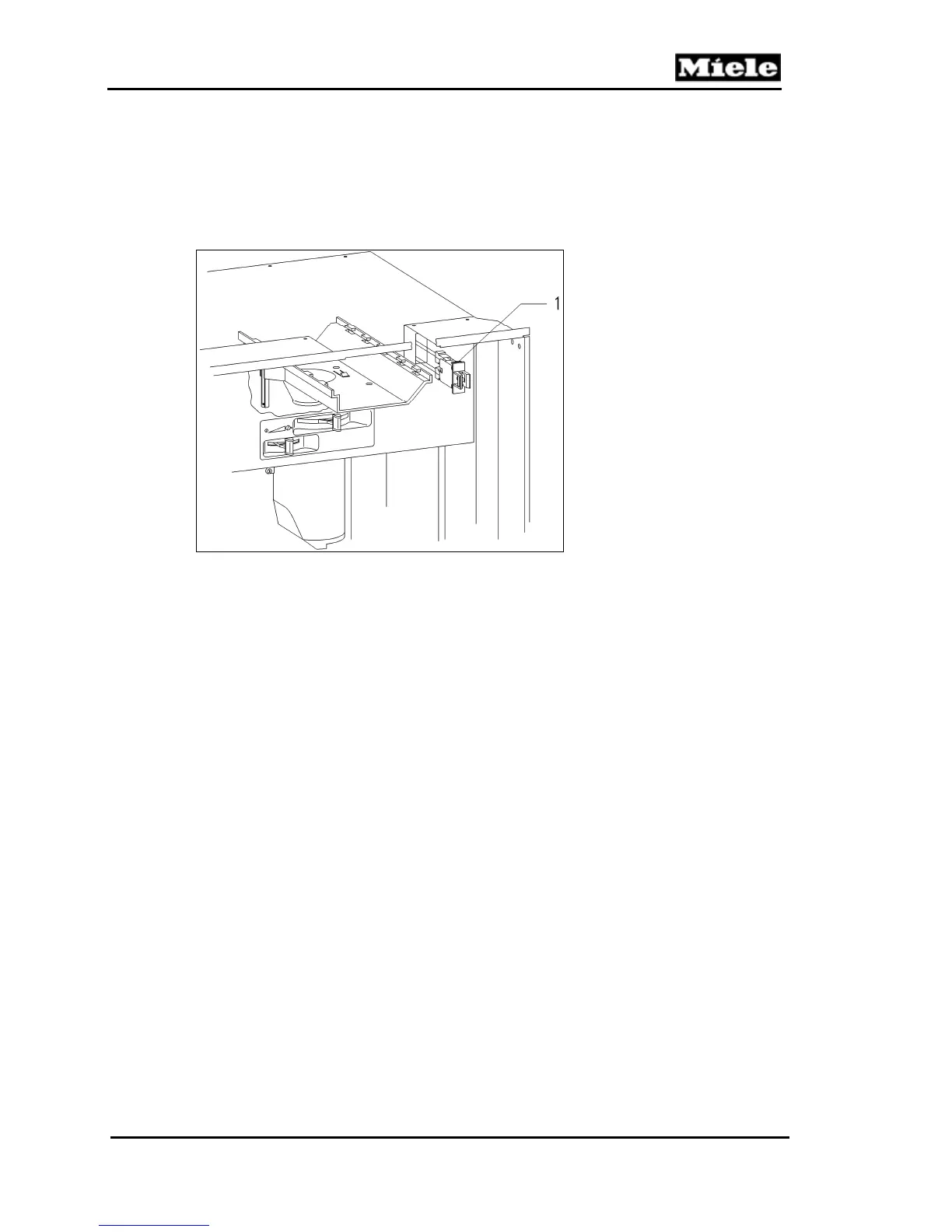

Figure 5-5: Door Switch (Shown with Appliance Door in Open Position)
5.9 Base Plate Removal
1. Remove the lid (Section 5.1), interference suppression filter (Section 5.2) and
rear panel (Section 5.6).
2. Open the door.
3. Remove the waste container.
4. Remove the water tank.
5. Check if water is present in the drip tray with a finger through the opening under
the water container.
6. If water is present, remove it using a suitable device.
7. Remove the brew unit; see Section 5.25.
8. Remove the coffee beans from their container.
9. Remove the base plate retaining screws (Figure 5-6).
10. Tilt the appliance onto its back.
11. Remove the base plate and disconnect the ground wire.
