Technical Information
9
CVA 610/CVA 615 Coffee
Systems
1.2 Technical
Data
1.2.1 Product

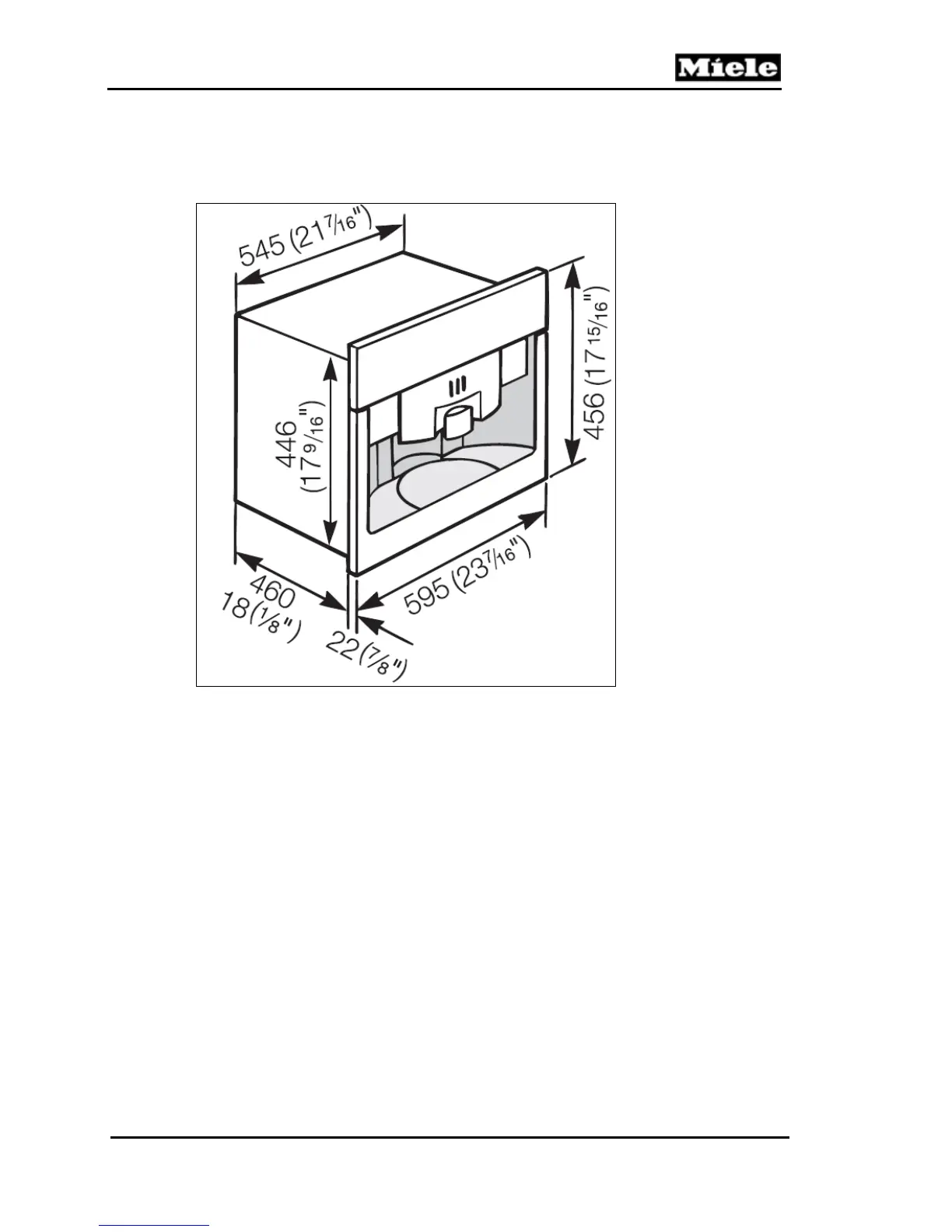

Dimensions
Figure 1-4:
CVA 61x Dimensions
1.2.2 Electrical
Information
The CVA 610 is equipped with a 6’ (1.8m) power cord and a molded NEMA 6-15P
plug for connection to a 240 (208) V, 15A, 60Hz power supply.
The CVA 615 is equipped with a 6’ (1.8m) power cord with a NEMA 5-15P molded
plug for connection to a 120V, 15A, 60Hz power supply.
8
10
Table of Contents
Construction and Design
7
Figure 1-3: Appliance Overview (Interior)
8
Technical Data
9
Component Layouts
10
Cva 615
11
Installation
12
Figure 2-2: Installation Information
13
Commission and Operation
14
Steam Control
15
Adjusting the Coffee Grinder
16
Filling the Water Tank
17
Description of Function
18
Removal from the Appliance
19
Brewing Procedure
20
Figure 4-5: Brew Unit Components
21
Waste Container
22
Water Tank
23
Figure 4-10: Water Level Switch
24
Grinder Assembly
25
Grinder Overload Protection
26
Ground Coffee Dispensing
27
Dispenser Switch
28
Water Pump
29
Flow Meter
30
Figure 4-19: Coffee/Hot-Water Heater (1R1, 1R2)
31
Water Path
32
Water Path – Hot Water
33
Figure 4-22: Water Valve
34
Electronic Assemblies
35
CPU Electronic (CVA 615)
36
CVA 610 CPU Electronic
37
Service and Maintenance
38
CPU Electronic Removal (CVA 610)
39
Adjustment Slide Switch Frame Removal
40
Door Contact Switch (S24) Removal
41
Drip Tray Removal
42
Overflow Switch Actuator Float Removal
43
Fluorescent Light Removal (CVA 610)
44
Light Starter Removal (CVA 610)
45
Rear Door Panel Removal
46
Selector Switch Removal
47
Dispenser Assembly Removal
48
Dispenser Assembly Installation
49
Steam Valve and Steam Valve Switch (S79) Removal
50
Hot-Water Valve (Y12) Removal
51
Brew Unit Removal (in Start/Home Position)
52
Figure 5-20: Brew Unit
53
Brew Unit Installation
54
Brew Unit Filter Cleaning
55
Brew Unit Degreasing Via the Rinse Cycle
56
Brew Unit Lubrication
57
Brew Unit Output Removal
58
Brew Unit Funnel Removal
59
Brew Unit Ram - Service
60
Figure 5-32: Releasing the Ram on the Underside of the Brew Unit
61
Accessing the Brew Unit Drive
62
Cva 615
63
Figure 5-36: Front Plate Assembly with Retaining Screw Locations
64
Figure 5-37: Grinder Retaining Screws
65
Figure 5-39: Upper Front Plate Assembly Retaining Screws
66
Water Tank Float Removal
67
Lower Section of Tank Valve - Removal
68
Beans Container Removal
69
Figure 5-46: Beans Container Guide
70
Figure 5-47: Grinder Disassembly
71
Figure 5-49: Grinder, Disassembled
72
Grinder Assembly and Basic Setting
73
Figure 5-50: Accessing the Grinder for Complete Removal
74
Brew Unit Present Switch Removal
75
Brew Unit Drive – Home Positioning
76
Water Path Leakage Test
77
Closing Water Path Connections
78
Fault Diagnosis
79
Table 6-2: Service Mode Functions
80
Displayed Messages
81
Fault Diagnosis
82
Technical Service Bulletins
83
CVA & French Roast Coffee
84
