Technical Information
71
CVA 610/CVA 615 Coffee Systems

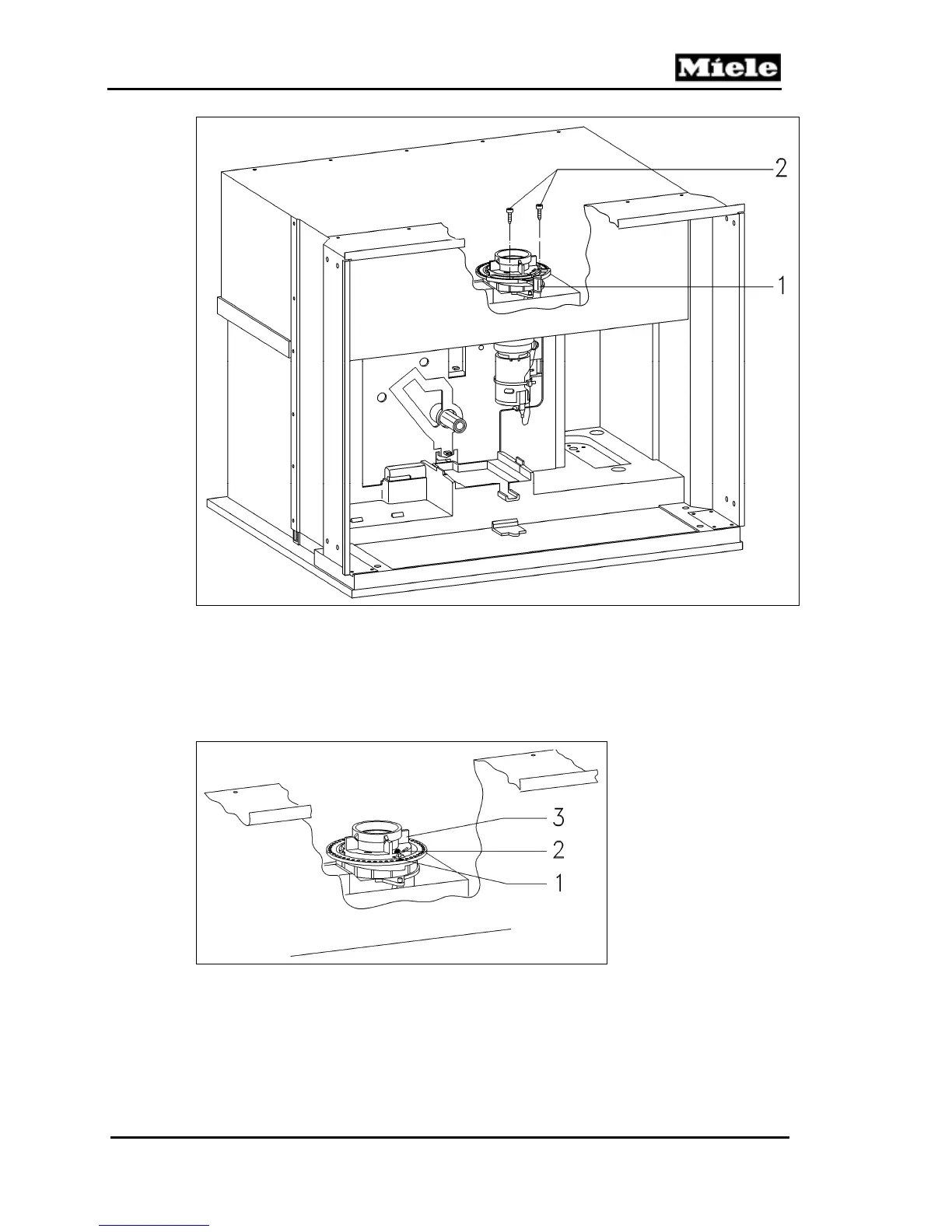

Figure 5-47: Grinder Disassembly
9. Take off the gasket.
10. Turn the adjustment ring (Figure 5-48, Item 1) counterclockwise until the blue
marking aligns with the blue marking on the carrier (Figure 5-48, Item 2).
11. Remove the bracket (Figure 5-48, Item 3).
12. Remove any coffee residue, e.g., with a vacuum cleaner.
Figure 5-48: Grinder
13. Remove the grinding cone retaining screw (Figure 5-49, Item 1) by turning it
clockwise (left-hand thread!).
14. Remove the intake worm gear (Figure 5-49, Item 2).
15. Remove the washer (Figure 5-49, Item 3).
1 Bracket
2 Carrier
3 Adjustment ring
