OM-291865 Page 24
5-6. Connecting 120 VAC Input Power
Installation must meet all National
and Local Codes—have only quali-
fied persons make this installation.
NOTICE – Do not modify the power cord.
The power cord plugs will work with standard
NEMA receptacles. Use only the power
cords supplied with this unit. Modifying the
power cord (s) and/or plugs, or using cords
not intended for use with this product will
void warranty.
For 120 volts AC input power, a 15 or 20 am-
pere individual branch circuit protected by
time-delay fuses or circuit breaker is
required.

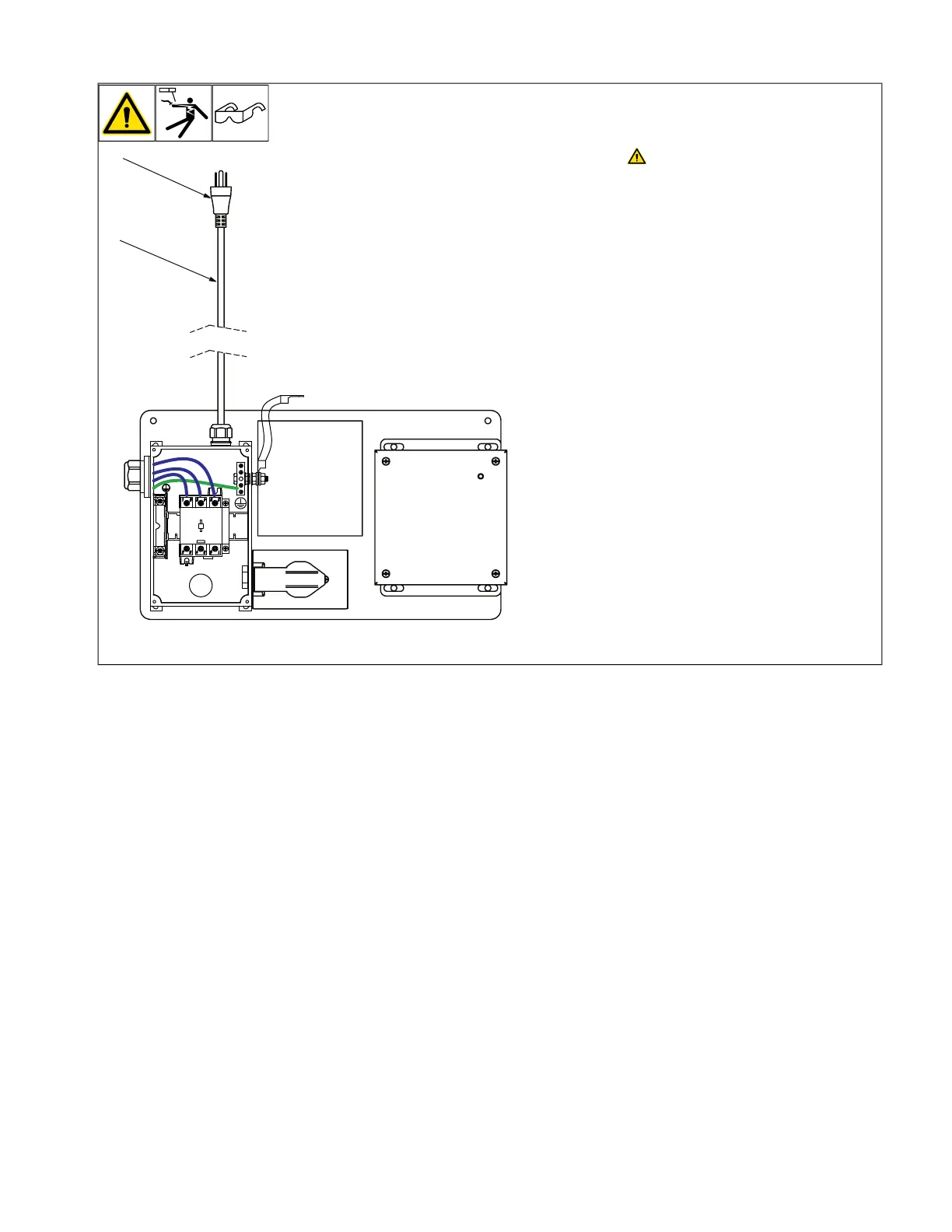

1 Power Cord, 120 VAC
120 VAC cord with NEMA type 5-15P plug
and SDG plug.
2 Plug - NEMA Type 5-15P
3 Receptacle - NEMA Type 5-15R (Not
Shown)
Connect plug to receptacle.
