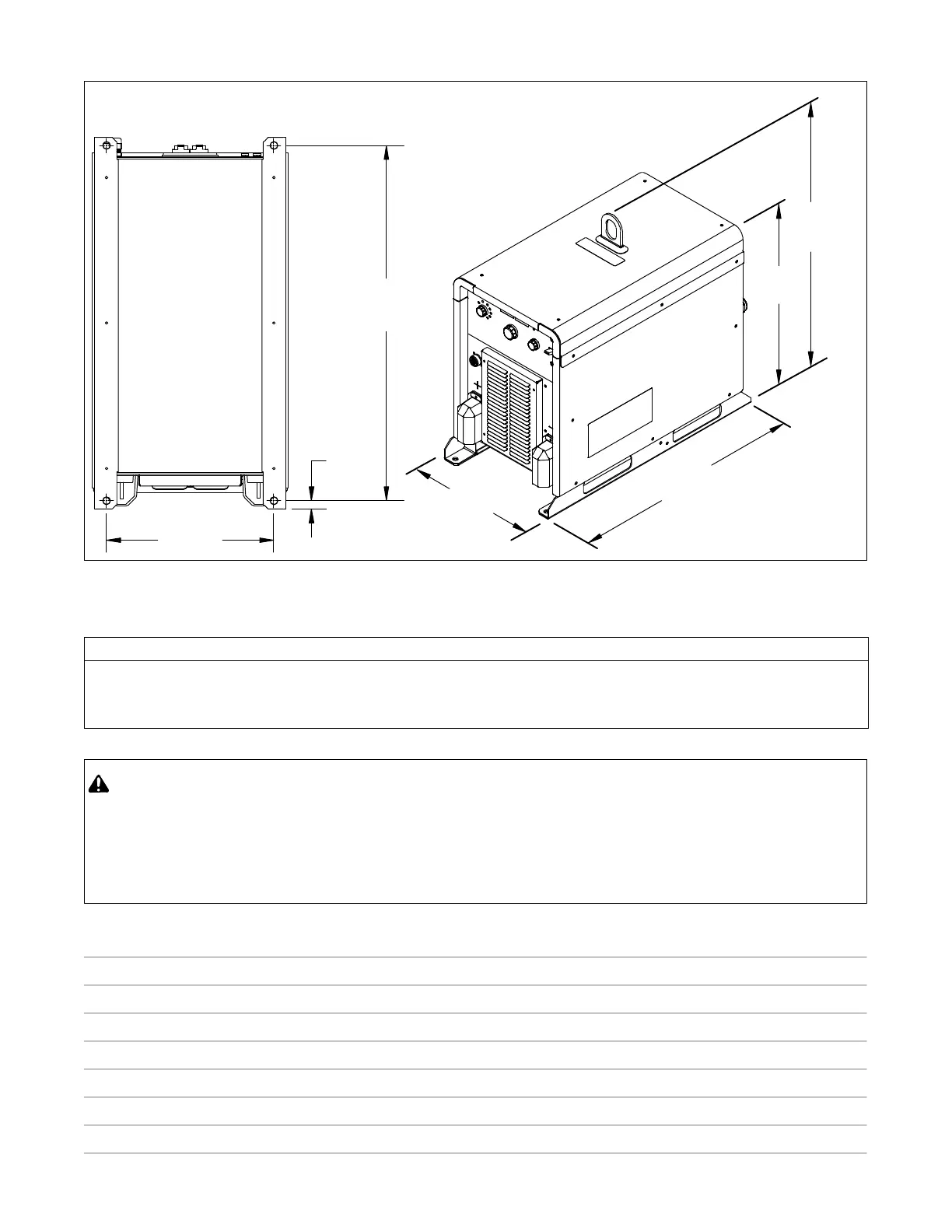

3-5. Dimensions and Weight
269 320-A / / 269 319-
Weight
168 lb (76.2 Kg)
30-1/4 in.
(768 mm)
14-1/4 in.
(362 mm)
11/16 in.
(17 mm)
28-3/16 in.
(716 mm)
24-3/16 in.
(614 mm)
31-5/8 in.
(803 mm)
16-11/16 in.
(406 mm)
3-6. Environmental Specifications
A. IP Rating
IP Rating
IP23
This equipment is designed for outdoor use. It may be stored, but is not intended to be used
for welding outside during precipitation unless sheltered.
IP23 2014−06
B. Information On Electromagnetic Compatibility (EMC)
! This Class A equipment is not intended for use in residential locations where the electrical power is provided by the public low−
voltage supply system. There can be potential difficulties in ensuring electromagnetic compatibility in those locations, due to con-
ducted as well as radiated disturbances.
This equipment complies with IEC61000-3-11 and IEC 61000−3−12 and can be connected to public low-voltage systems provided that the public
low-voltage system impedance Z
max
at the point of common coupling is less than 14.74 mW (or the short−circuit power S
sc
is greater than
10,854,131 VA). It is the responsibility of the installer or user of the equipment to ensure, by consultation with the distribution network operator
if necessary, that the system impedance complies with the impedance restrictions.
ce-emc 1 2014-07
