SECTION 5 − GENERAL OPERATION

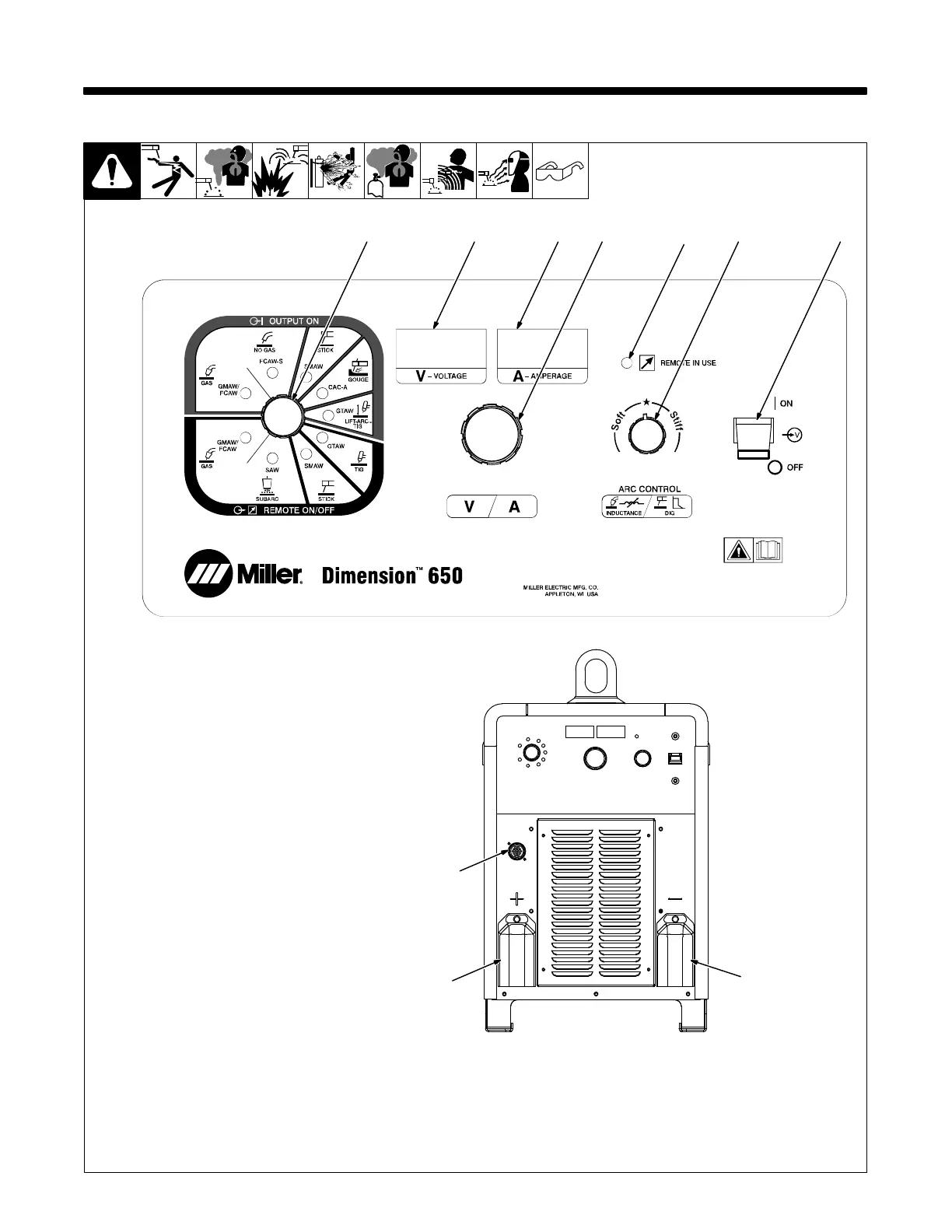

5-1. Front Panel
. Weld process operation sections de-
scribe functionality of the identified items
(See Sections 6-1 thru 8-4).
1 Remote 14 Receptacle
2 Left Display
3 Right Display
. The meters display the actual weld output
values after arc initiation and remains dis-
played for approximately three seconds
after the arc is broken.
4 Adjust Control
5 Power Switch
6 Arc Control
7 Remote In Use Indicator
8 Mode Switch
9 Weld Output Terminal (−)
10 Weld Output Terminal (+)
263561-B / Ref. 269321-B
110
10 9
8234 6
7
5
1
