OM-272476 Page 17

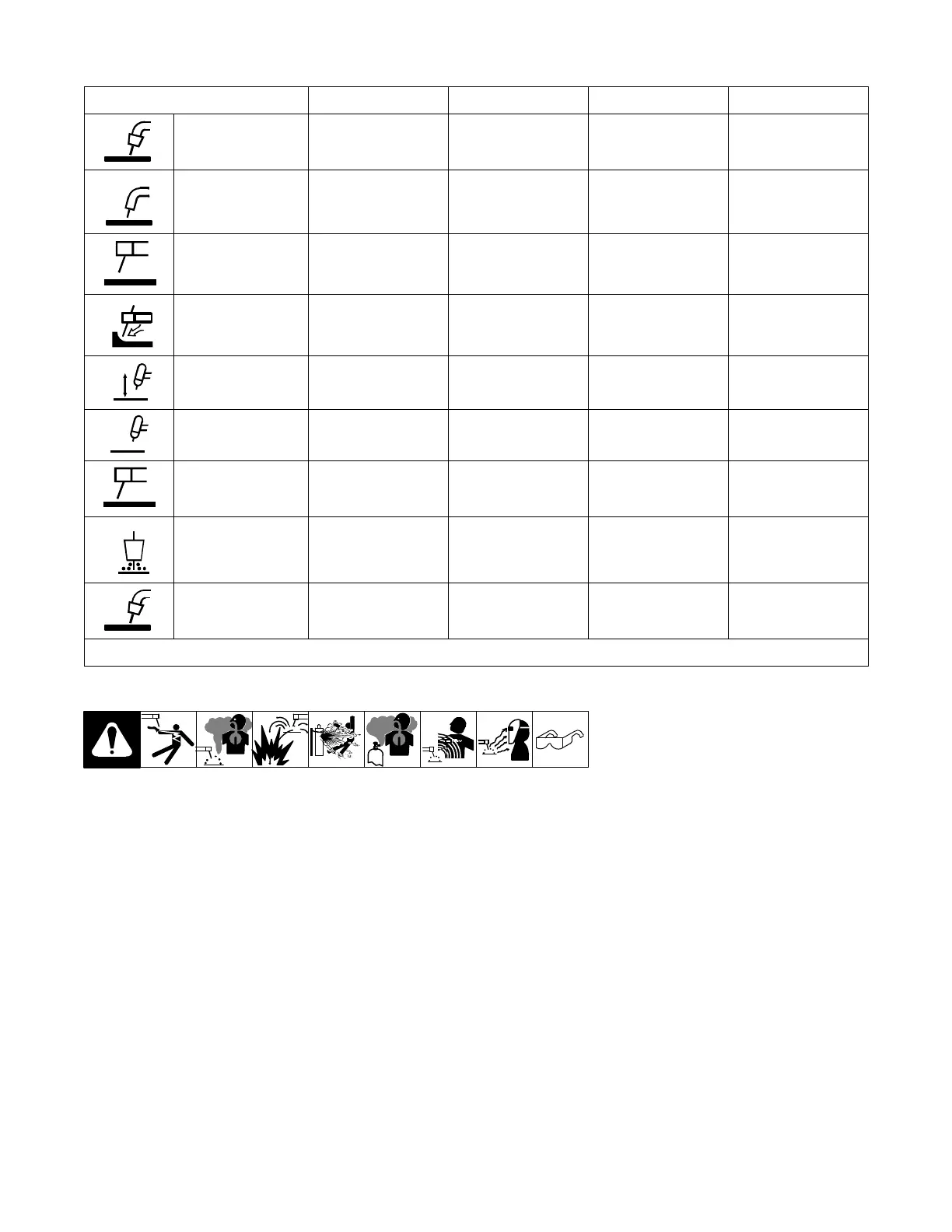

5-2. Mode Switch Settings
Switch Position
Process Output Control Panel Adjust Remote Adjust
MIG−Gas GMAW/FCAW Output On Volts Volts
MIG−No Gas FCAW−S Output On Volts Volts
Stick SMAW Output On Amps
No Remote Adjust -
Panel Only*
Gouge CAC−A Output On Amps
No Remote Adjust -
Panel Only*
Lift-Arc TIG GTAW Output On Amps % Panel Amps
TIG GTAW Remote 14 Amps % Panel Amps
Stick−Remote SMAW Remote 14 Amps % Panel Amps
Subarc SAW Remote 14 Volts Volts
MIG GMAW/FCAW Remote 14 Volts Volts
*See Section 5-4 For Alternate Configuration Functions.
5-3. Optional Low Open Circuit Voltage (OCV) Welding Modes
Low OCV Operation
The unit can be optionally configured for low open circuit voltage (OCV) operation in Stick Remote, Stick Output On, TIG Remote and Gouge
modes. When the unit is configured for low OCV operation, a low sensing voltage (approximately 12 VDC) is present between the electrode and
the workpiece prior to the electrode touching the workpiece. Consult a Factory Authorized Agent for information regarding how to configure unit
for low OCV welding operation.
