Miller Dimension 650 - GTAW Operation; Typical Connection for GTAW

OM-272476 Page 19
SECTION 6 − GTAW OPERATION

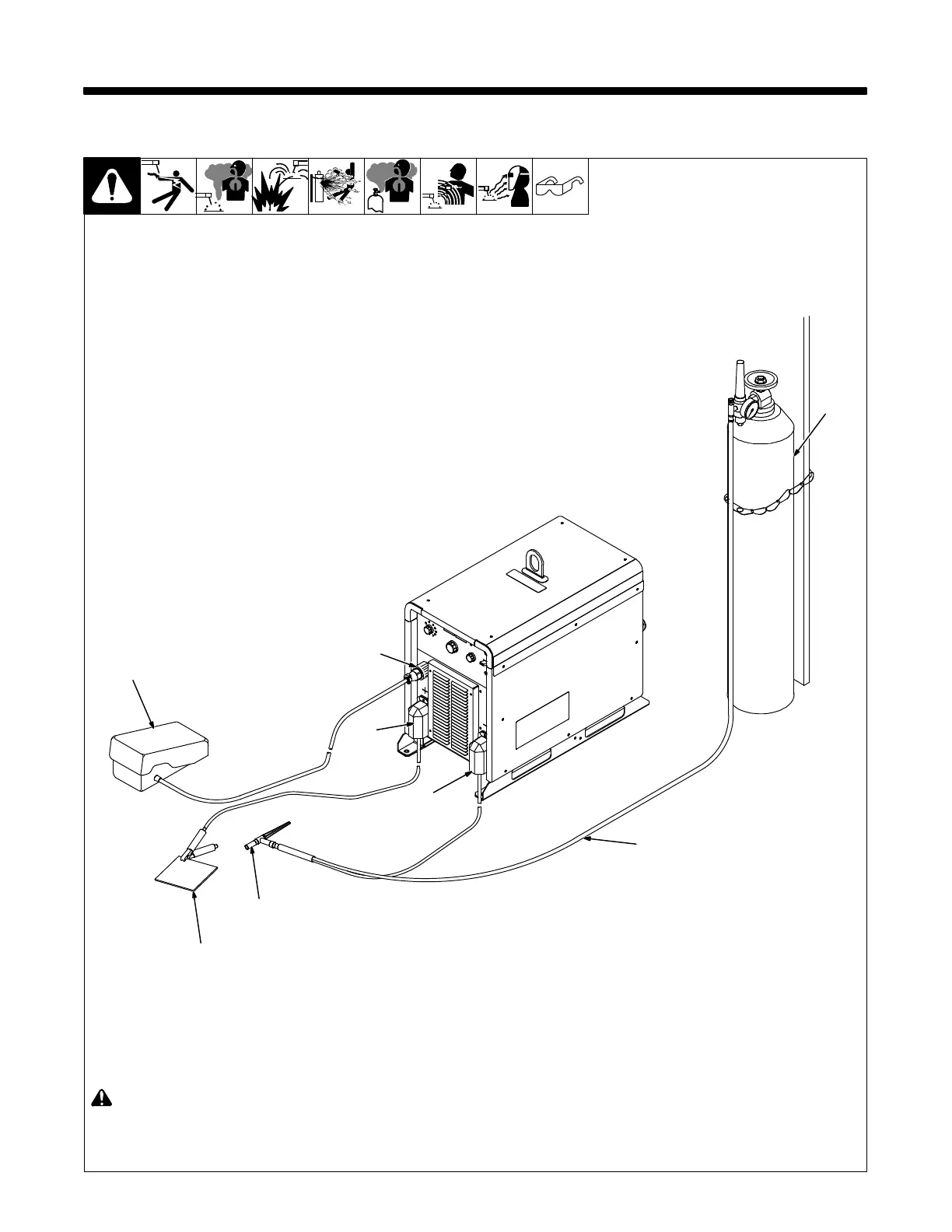

6-1. Typical Connection For GTAW Process
! Turn off power before making con-
nections.
1 Foot Control
2 Positive (+) Weld Output Terminal
3 Remote 14 Receptacle
Connect desired remote control to Remote
14 receptacle if required.
4 Gas Cylinder
5 Gas Hose
6 Negative (−) Weld Output Terminal
7 TIG Torch
8 Workpiece
269 325-A
1
2
3
4
5
6
7
8
