OM-272476 Page 32
9-2. Subarc Welding Mode − SAW Process
! Weld terminals are energized
through the remote control in Sub-
arc welding mode.

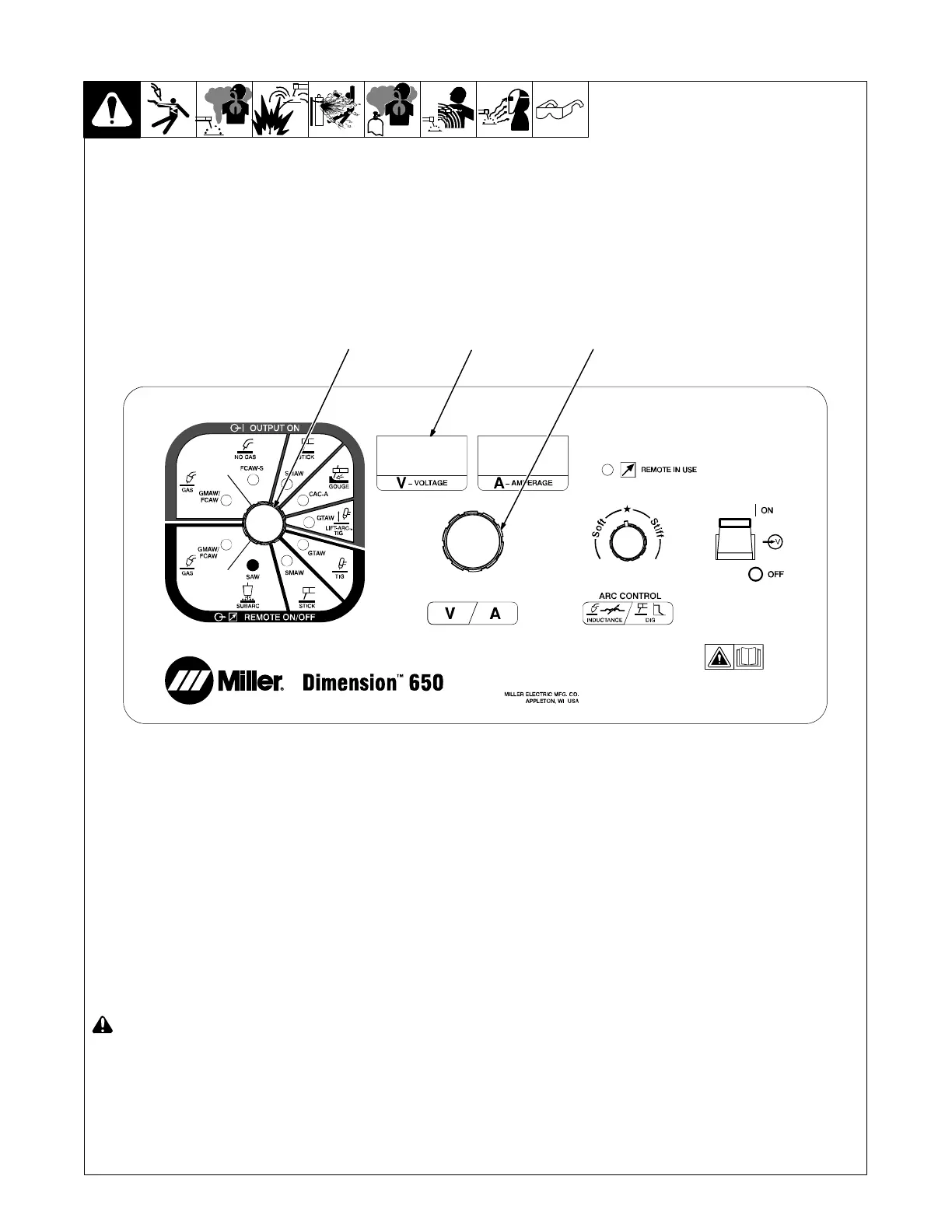

1 Mode Switch
2 Left Display
3 Adjust Control
Setup
For typical system connections refer to
Section 9-1.
Welding Power Source
Rotate Mode Switch to Subarc position as
shown.
The preset voltage is shown in the Left Dis-
play.
SAW Controller
When using Miller Electric HDC DX con-
troller, select Dimension 652 or SubArc DC
650 for power source selection.
. This product is not compatible with
digital series of subarc equipment.
Operation
Adjust preset voltage remotely at the SAW
controller. This voltage control will override
the Adjust Control of preset voltage on the
welding power source. The Remote In Use
indicator will be lit. See SAW controller
Owner’s Manual for additional information.
263 561-B
2
25.0
13
