8-4. Gouge Mode - CAC-A Process
! Weld terminals are energized at all
times in Gouge mode.

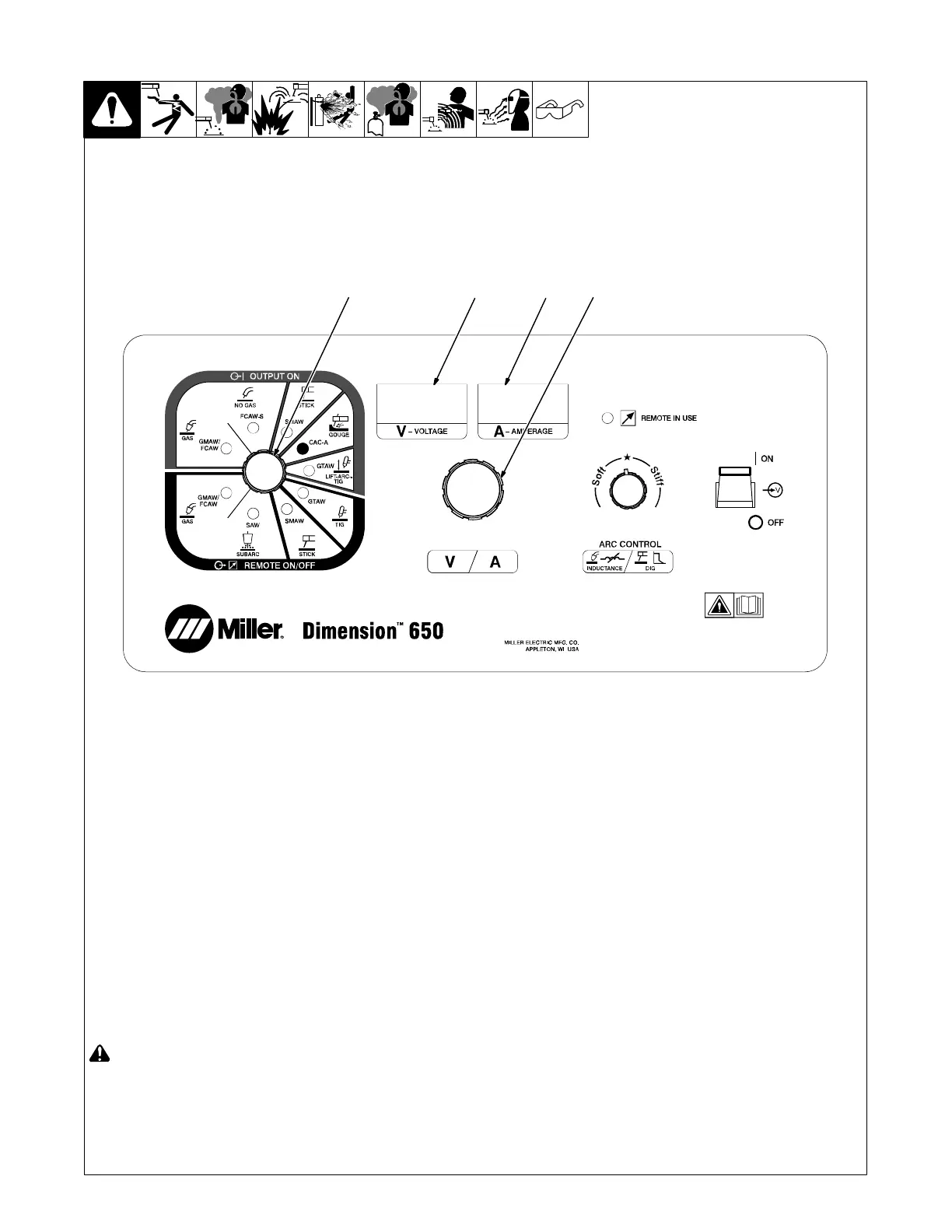

1 Mode Switch
2 Left Display
3 Right Display
4 Adjust Control
Setup
For typical system connections refer to
Section 8-1.
Rotate Mode Switch to Gouge position as
shown.
The open circuit voltage is shown in the Left
Display and the preset amperage is shown
in the Right Display.
Operation
The Adjust Control is used to set desired
preset amperage.
65.0
350
263 561-B
3
14
2
