Miller Dimension 650 - GMAW;FCAW Operation; Remote Control Feeder Connection

OM-272476 Page 22
SECTION 7 − GMAW/FCAW OPERATION

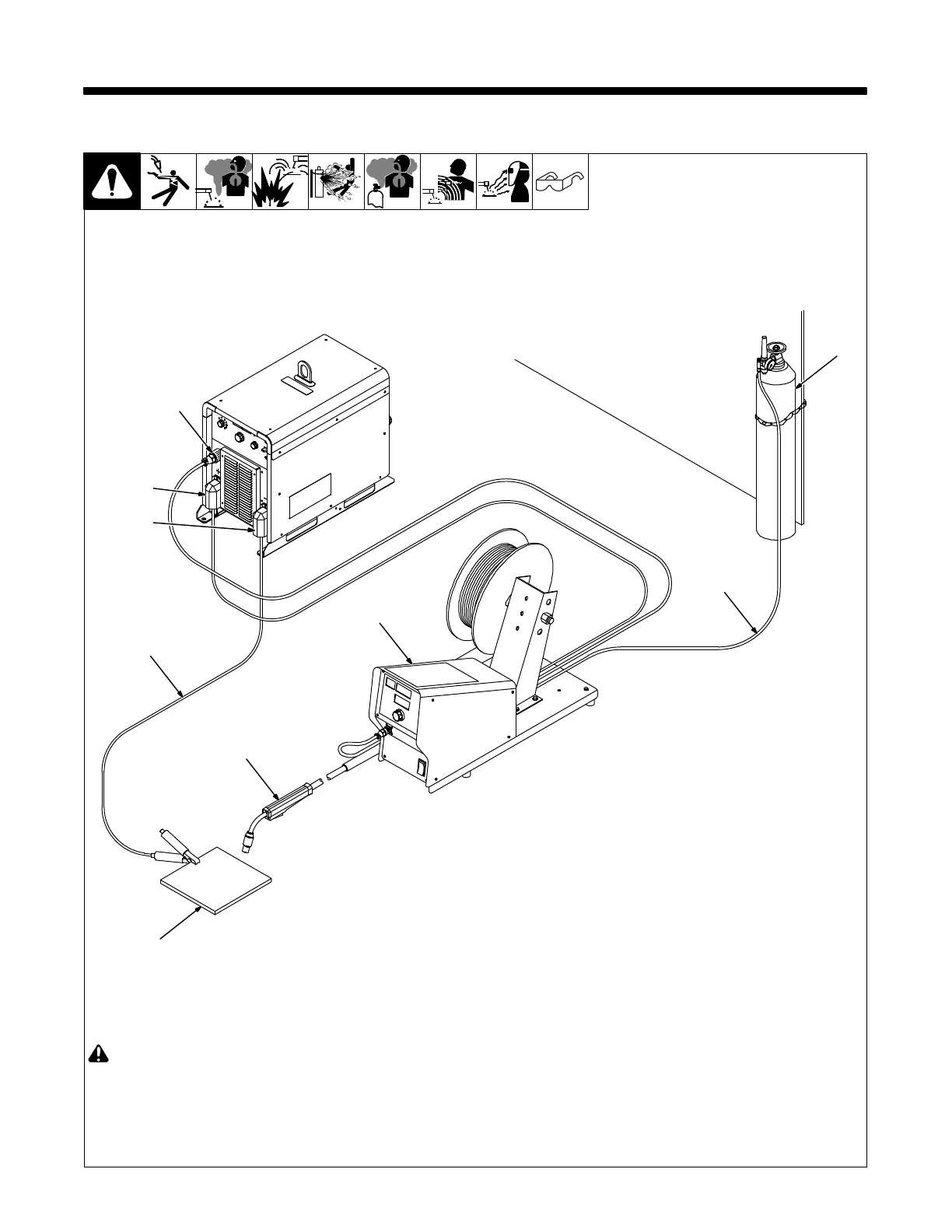

7-1. Typical Connection For Remote Control Feeder GMAW/FCAW Process
! Turn off power before making
connections.
1 Remote 14-Receptacle
2 Positive (+) Weld Output Terminal
3 Negative (−) Weld Output Terminal
4 Ground Cable to Workpiece
5 Workpiece
6 Gun
7 Wire Feeder
8 Gas Hose
9 Gas Cylinder
Use of shielding gas is dependant on Wire
Type.
. The connection diagram illustrates
DCEP (reverse polarity) suitable for all
wires except self-shielded FCAW. The
majority of self-shielded FCAW wires
require DCEN (straight polarity).
269 323-A
1
2
3
4
5
6
7
8
9
