OM-272476 Page 31
SECTION 9 − SAW OPERATION

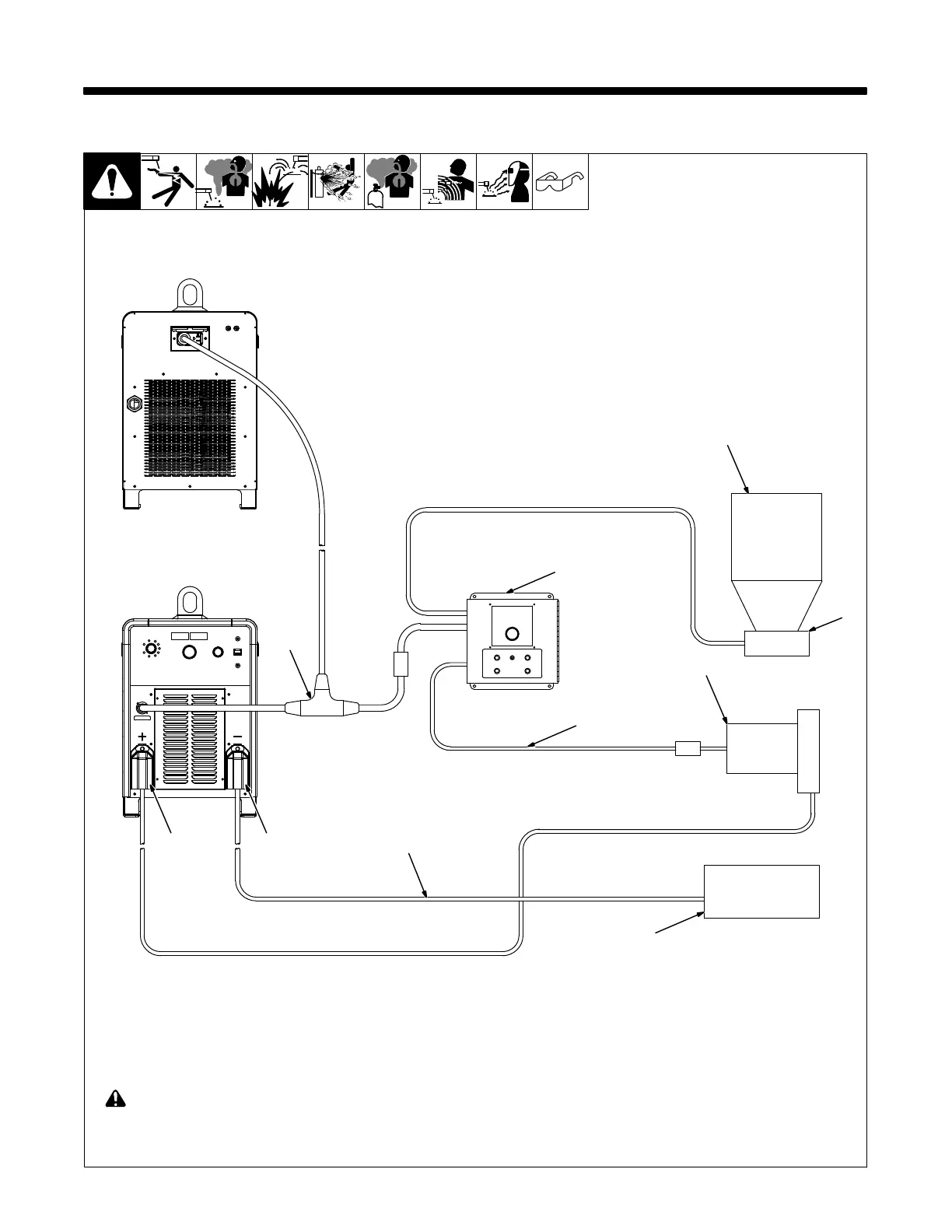

9-1. Typical Connection For SAW Process
! Turn off power before making con-
nections.
1 Positive (+) Weld Output Terminal
2 Negative (−) Weld Output Terminal
3 Ground Cable to Workpiece
4 Workpiece
5 Wire Drive Assembly
6 10 Pin Motor Control Cord
7 Saw Control
8 Flux System
9 Flux Valve
10 14 Pin/115V Y−Cord
1
2
3
4
5
6
7
8
9
10
269 792-A
Power Source
Back View
Power Source
Front View
To Next Page
