SECTION 4 – INSTALLATION

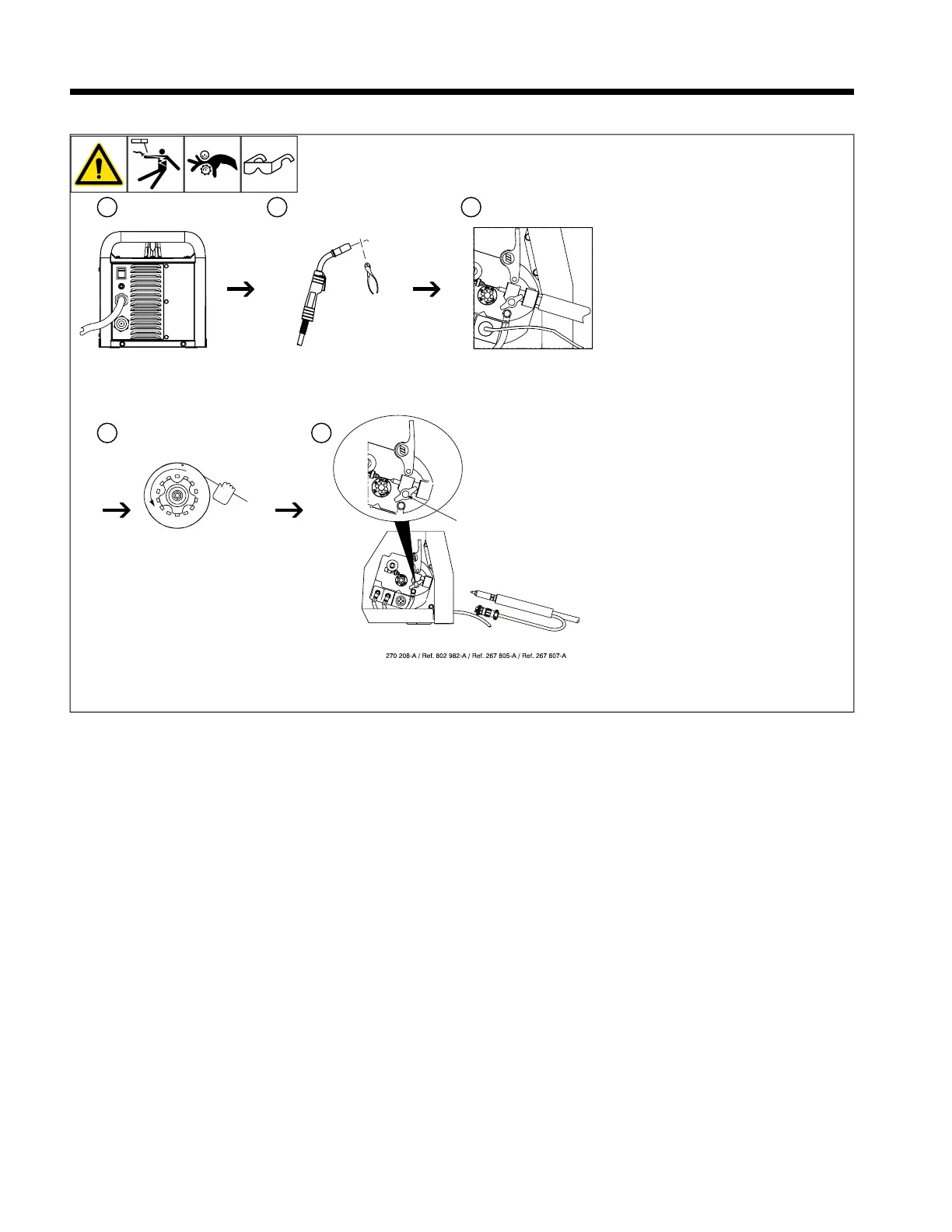

4-1. Removing MIG Gun From Welding Power Source
1
4
1
2
3
5
Step 1. Turn off power.
Step 2. Cut off end of wire.
Step 3. Open pressure assembly.
Step 4. Rewind wire onto spool. Fasten end
of wire to spool.
F
Hold wire tightly to keep it from
unraveling.
1 Knob
Step 5. Loosen knob, disconnect gun trigger
plug, and pull gun from unit.
