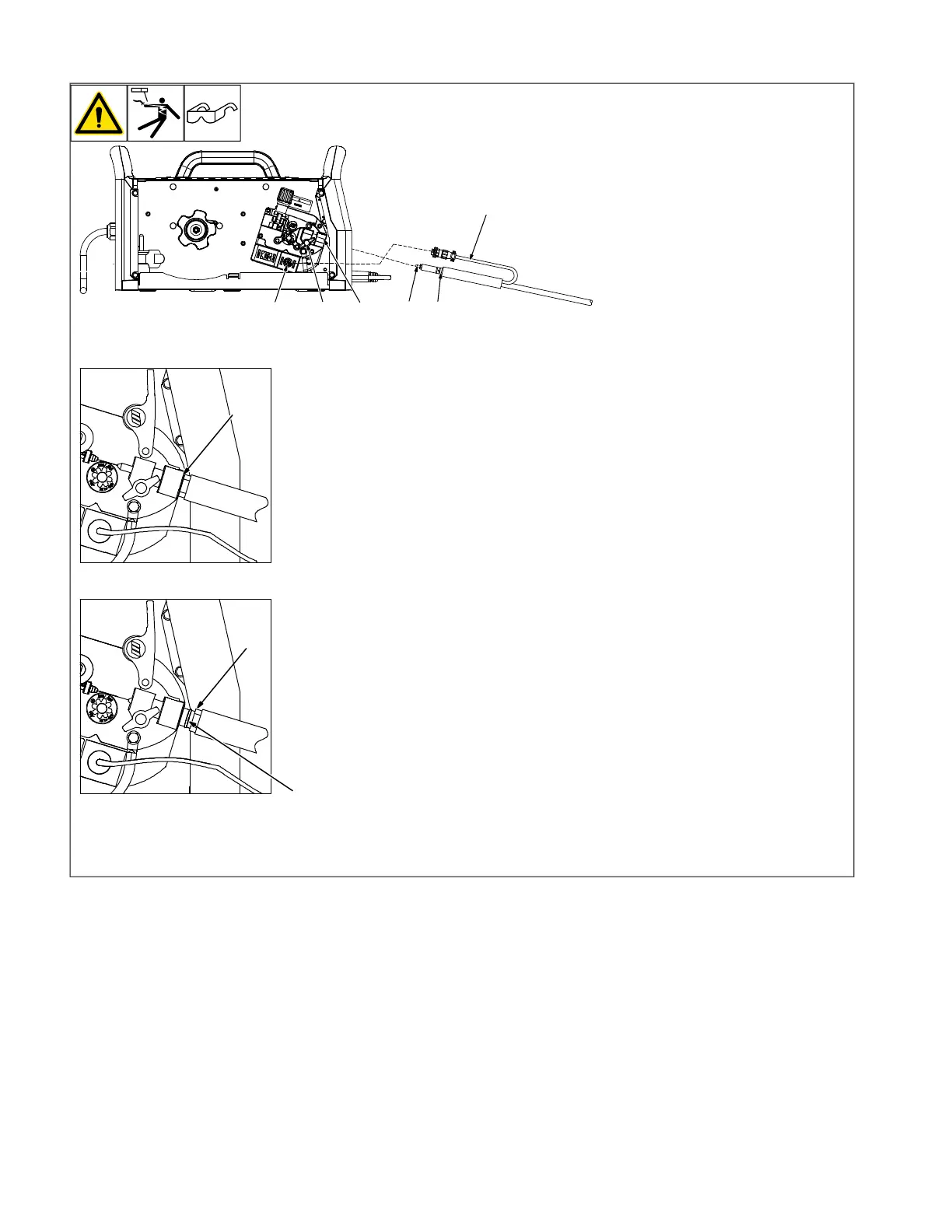

4-5. Connecting Spool Gun To Multimatic 215
Ref. 267807A / 275167A
3
7
4
2 41
Correct: Gun Fully Seated
Incorrect: Gun Not Seated
1 Gun Securing Knob
2 Gun Block
3 Gun Outlet Wire Guide
4 Trigger Control Cable
5 Gun End
6 Exposed O-rings
Loosen knob. Insert end of gun through
opening in front panel until gun end bot-
toms against gun block. Tighten knob.
F
Be sure that gun end is tight against
drive assembly.
F
Exposed O-rings will cause shielding
gas leakage.
7 Four Pin Trigger Control Cable
Receptacle
Route trigger control cable through MIG gun
hole.
Connect plug on end of cable to four pin re-
ceptacle inside unit.
To make proper polarity connection, see
welding power source Owner’s Manual.
To Next Page
