Miller Spoolmate 150 - 4-6. Installing Wire Spool And Threading Welding Wire

OM-272384 Page 16

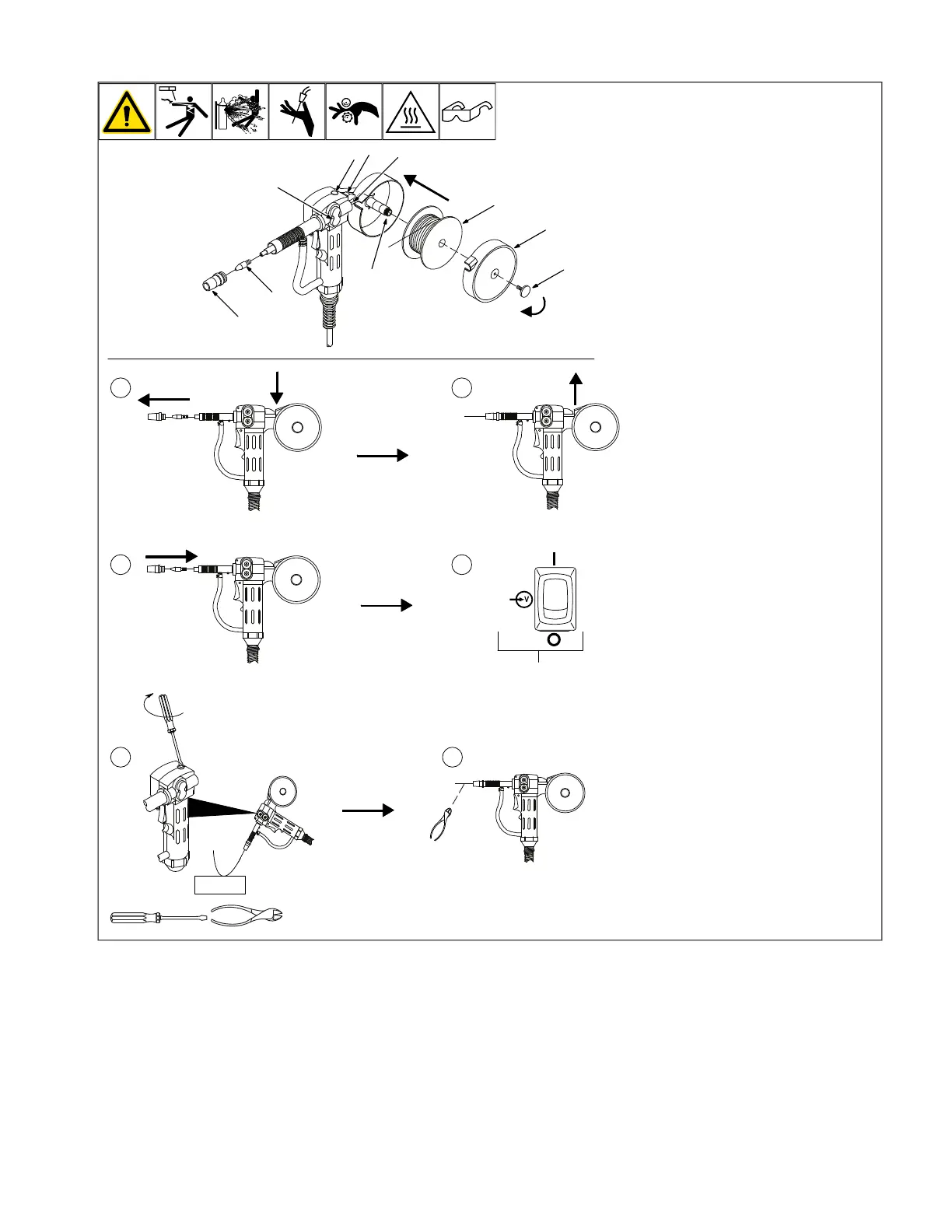

4-6. Installing Wire Spool And Threading Welding Wire
804 985-A
Wood
4
1
5
6
7
8
10
9
3
2
1 2
3
4
6
5
OM-222 Page 1
allen_wrench
NGO’s
tools/
flathead philips head wrench
pliers
knife
heavy-duty workclamp light-duty workclamp wirecutter frontcutter
allen_set
needlenose
steelbrush nutdriver
chippinghammer
solderiron
stripcrimp
drill
torque wrench
socket wrench
hammer awl file
crimper
paintbrush
feelergauge flashlight ruler
toothbrush
greasegun
qtip (swab)
vicegrip
handream
punch
filterwrench
strapwrench
airgun
solvent pinextractor eprompuller pipewrench
torque screwdriver
cr
escent wrench
OM-222 Page 1
allen_wrench
NGO’s
tools/
flathead philips head wrench
pliers
knife
heavy-duty workclamp light-duty workclamp wirecutter frontcutter
allen_set
needlenose
steelbrush nutdriver
chippinghammer
solderiron
s
tripcrimp
drill
torque wrench
socket wrench
hammer awl file
crimper
paintbrush
feelergauge flashlight ruler
toothbrush
greasegun
qtip (swab)
vicegrip
handream
punch
filterwrench
strapwrench
airgun
solvent pinextractor eprompuller pipewrench
torque screwdriver
crescent wrench
1 Thumb Screw
2 Spool Cover
Remove thumb screw and spool cover.
3 Hub Tension Nut
4 Wire Spool
Install spool so wire feeds from top. Turn hub
tension nut just so a slight drag is felt on the
wire spool.
5 Push Roll/Lower Drive Roll
6 Drive Roll Pressure Adjustment Opening
7 Drive Roll Release Lever (Red)
8 Wire Inlet Guide
9 Contact Tip
10 Nozzle
Step 1. Remove nozzle and contact tip.
Push and hold red lever. Thread wire
through inlet guide, past push roll/drive roll,
and out end of gun 2 inches (50 mm).
Step 2. Release red lever.
Step 3. Install contact tip and nozzle. Rein-
stall spool cover and thumb screw.
Step 4. Turn On welding power source
power.
Step 5. Press gun trigger to feed wire to
check drive roll pressure. Turn screw enough
to prevent slipping.
F
Drive roll pressure is preset for .030/
.035 aluminum wire. Rotating screw
clockwise decreases drive roll pressure
and counterclockwise increases
pressure.
Step 6. Cut off wire.
