Miller Spoolmate 150 - 4-4. Connecting Spool Gun To Multimatic 200 (Starting w;SN MF364047 N)

OM-272384 Page 14

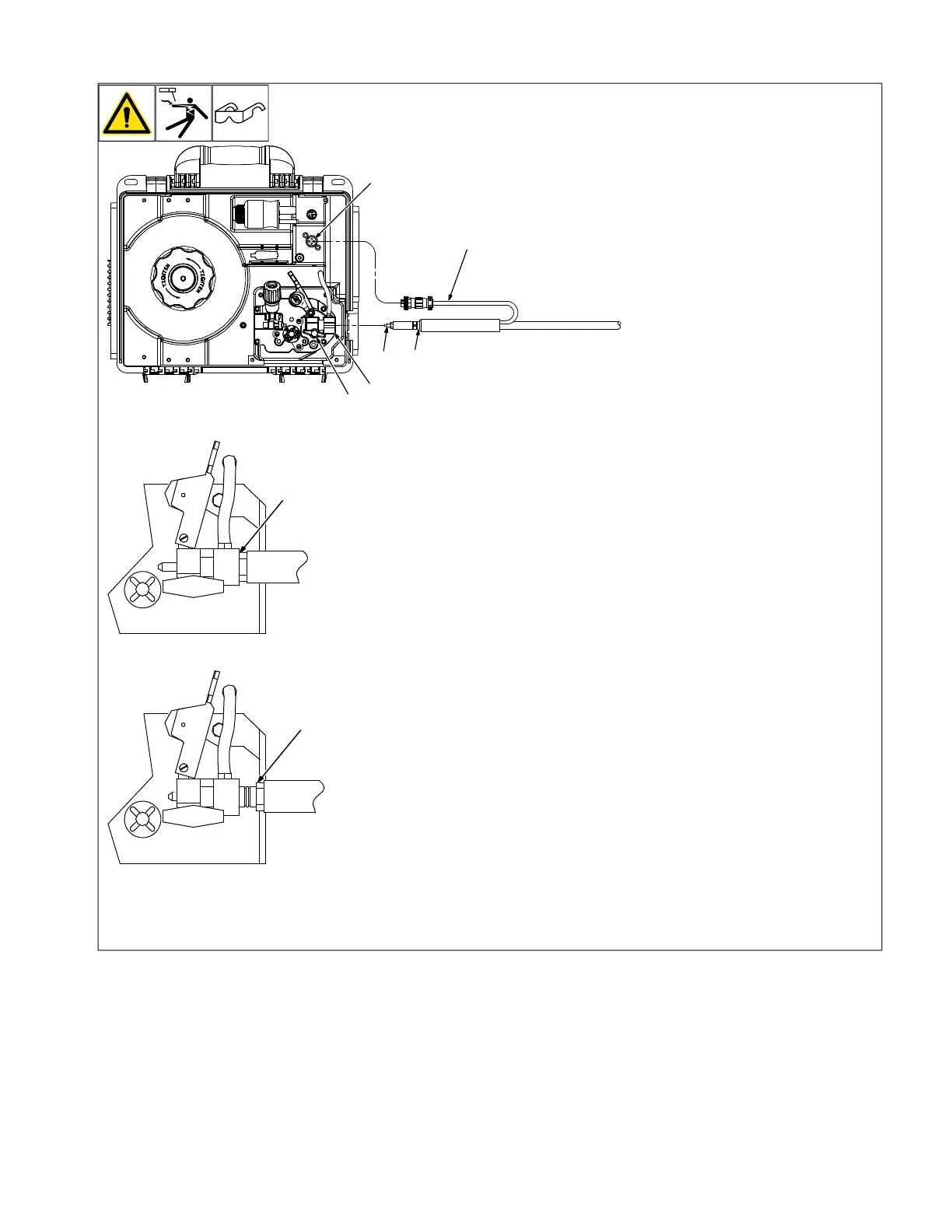

4-4. Connecting Spool Gun To Multimatic 200 (Starting w/SN MF364047N)
Ref. 254 249-C
3
6
5
2
1
4
Correct: Gun Fully Seated
4
Incorrect: Gun Not Seated
4
Ref. 801 987
1 Gun Securing Knob
2 Gun Block
3 Gun Outlet Wire Guide
4 Gun End
Loosen knob. Insert end of gun through
opening in front panel until gun end bot-
toms against gun block. Tighten knob.
F
Be sure that gun end is tight against
drive assembly.
F
Exposed O-rings will cause shielding
gas leakage.
5 Trigger Control Cable
6 Four Pin Trigger Control Cable
Receptacle
Route trigger control cable through MIG gun
hole.
Connect plug on end of cable to four pin re-
ceptacle inside unit.
To make proper polarity connection, see
welding power source Owner’s Manual.
