Miller Spoolmate 150 - 4-2. Connecting Spool Gun To Millermatic 211

OM-272384 Page 12

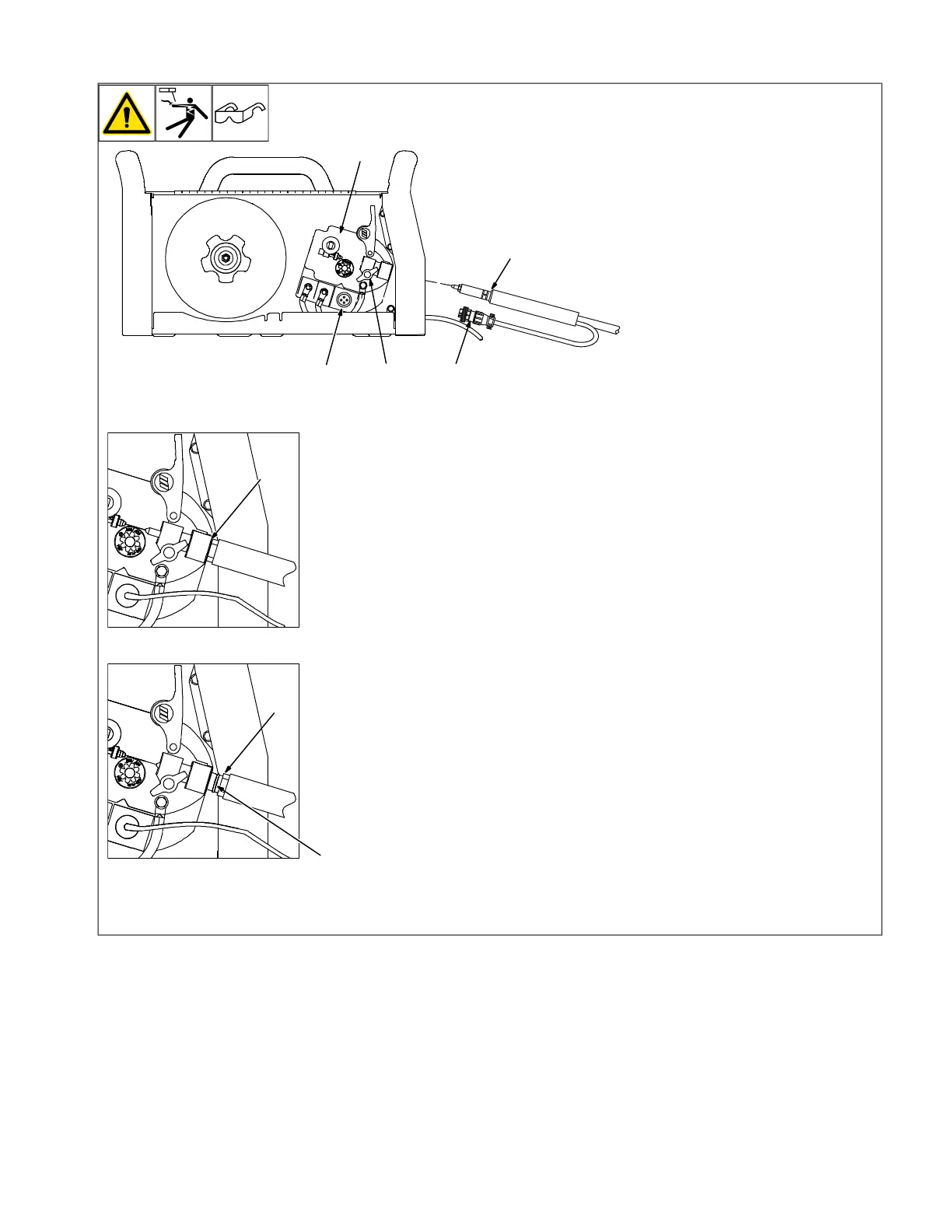

4-2. Connecting Spool Gun To Millermatic 211
Ref. 267805-A / 267807-A
2
5
4
1
3
Correct: Gun Fully Seated
5
Incorrect: Gun Not Seated
5
6
1 Drive Assembly
2 Gun Trigger Plug
3 Gun Trigger Receptacle
Route gun trigger plug through front panel.
Insert plug into receptacle, and tighten
threaded collar.
F
Be sure that gun end is tight against
drive assembly. Incorrect installation
will have adverse effects on gas flow.
F
Exposed O-rings will cause shielding
gas leakage.
4 Gun Securing Knob
5 Gun End
6 Exposed O-rings
Loosen knob. Insert end of gun through
opening in front panel until it bottoms
against drive assembly. Tighten knob.
Close door.
