OM-272384 Page 19
5-3. Controls For Multimatic 200 (Starting w/SN MF364047N)
OM-272 384 Page 6

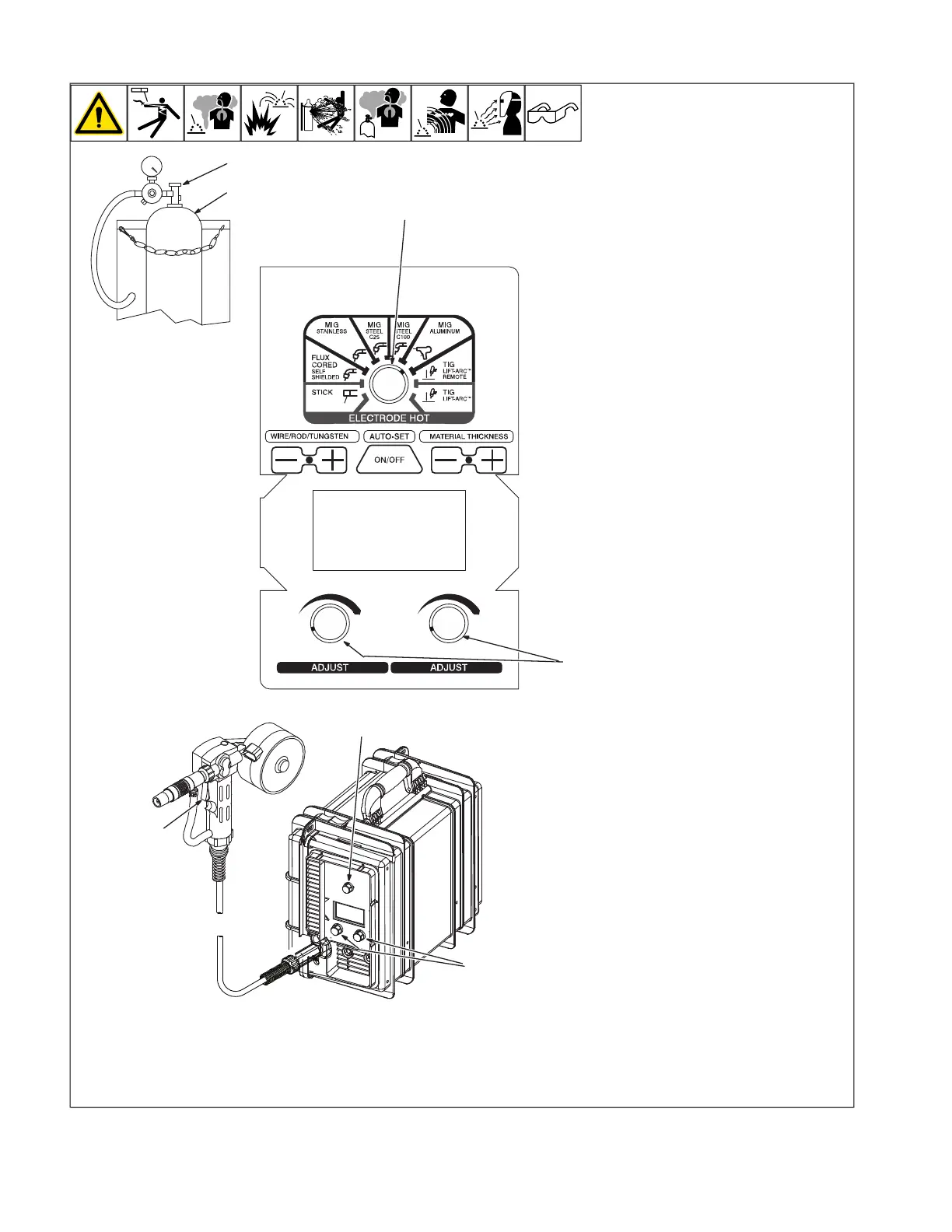

2-3. Controls For Multimatic 200 (Starting w/SN MF364047N)
Ref. 235 125-B / Ref. 804 986-A
1
2
5
3
6
3
6
1 Shielding Gas Cylinder
For shielding gas connections, see welding
power source Owner’s Manual.
2 Valve
Open valve on cylinder just before welding.
Close valve on cylinder when finished
welding.
3 Process Switch
Turn process switch to MIG ALUMINUM
(Spool Gun).
4 Perform Motor Calibration
See Multimatic 200 Owner’s Manual for
Spoolmate Motor Calibration procedure.
5 Trigger
Press trigger to energize welding power
source contactor, start shielding gas flow,
and begin wire feed.
6 Adjust Knobs
Voltage and wire feed speed are controlled
by welding power source adjust knobs (see
welding power source Owner’s Manual or
door chart for appropriate setting).
To Next Page
