In pattern B, the tool is installed with tilted. Pattern B has to be adjusted so that horizontal lines and
vertical lines are arranged in a straight line respectively along X- and Y-axes.
Pattern B
Sample pattern
How to adjust Input a positive value as “B” that Input a negative value as “B” that
corresponds to a half of the distance corresponds to a half of the distance
between the two lines. between the two lines.
Adjustment of the
θθ
θθ
θ angle
The rotating angle of the roller is adjusted.
Eliminate the difference in rotating angle between the plotted pattern and the marked pattern.
One pattern is used for adjustment.

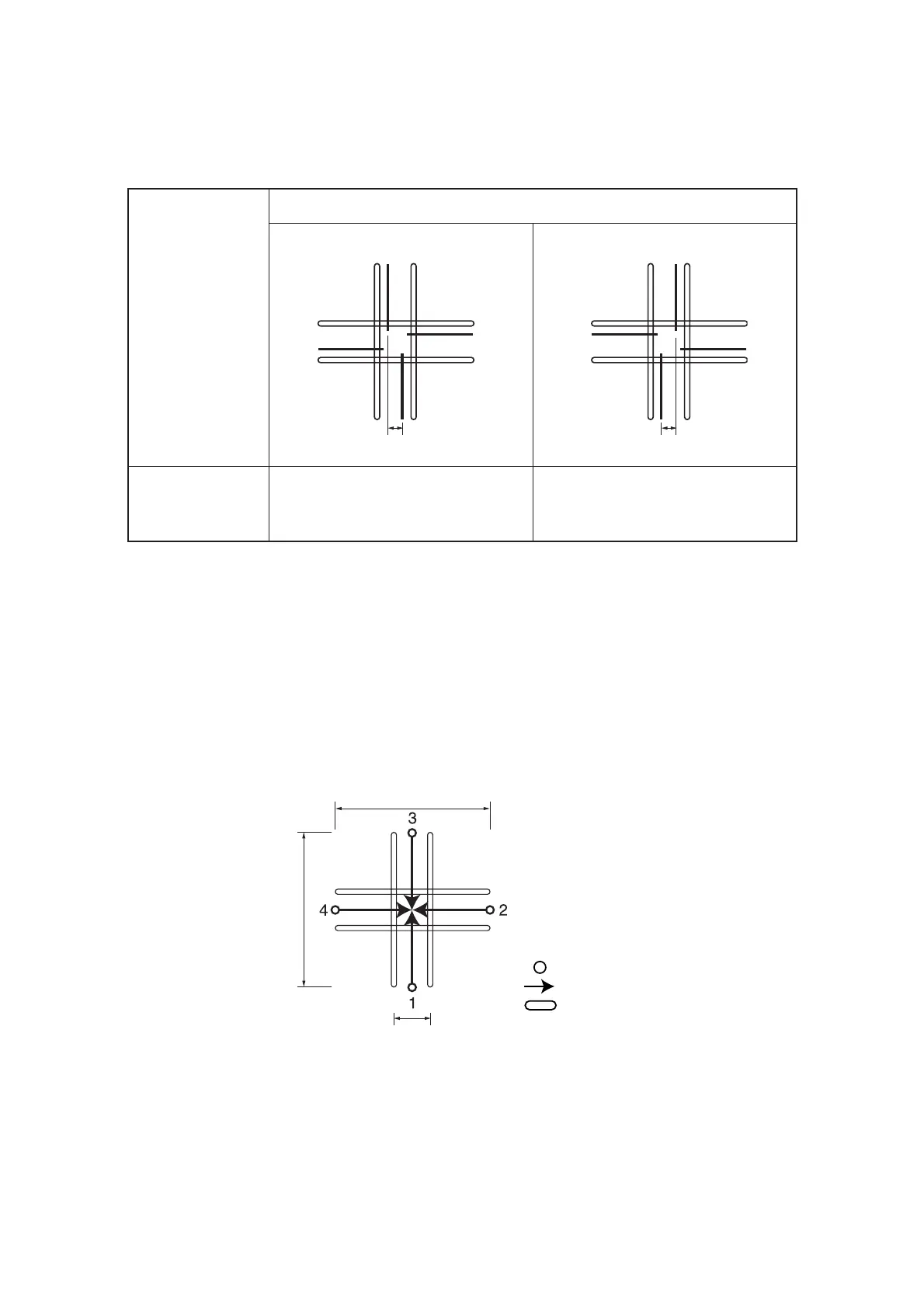

The illustration below gives the size of the pattern and the cutting order.
: Point from which marking starts
: Direction of marking
: Pen
Pattern 1
200 mm
200 mm
2 mm
To Next Page
