MIMAKI CG-60SRIII - How to Place the Roll Sheet (CG-60 SRIII)

2-17
1
2
Basic Operations
4
5
6
Setting a sheet
6
Press the jog key or to select number of
pinch rollers to be used. (CG-130SRIII)
• When [ROLL. SELECT] is set to [ON], select the number of pinch
rollers to be used.
( P.3-56)
7
Start detecting the sheet.
• When [DUMMY CUT] is set to [ON], after completing the sheet
detection, the plotter performs dummy cutting operation ( P.3-
83) .
• This plotter cannot detect the leaf sheet of longer than 5m.

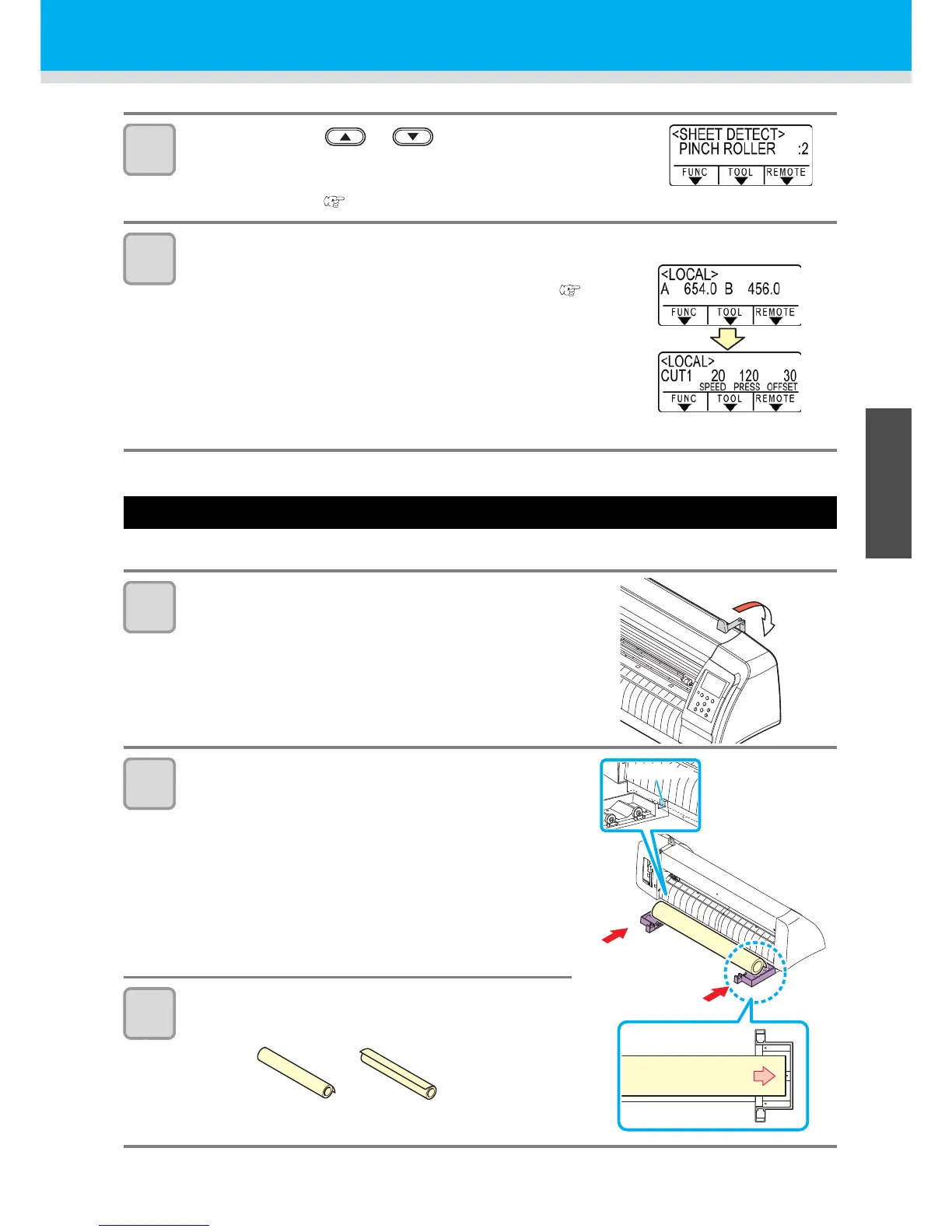

How to Place the Roll Sheet (CG-60SRIII)
If you want to use the roll sheet, you must mount the roll-placing table.
1
Move down the clamp lever to the rear.
2
Lay down the roll-placing table, fitting to the width
of the roll sheet.
• As the roll-placing table has a magnet, just attach it to the
device and it is fixed.
• Fix the roll-placing table 2 to 3mm away from the sheet width.
Pressing the both ends hard may cause the roll not to be
rotated, resulting in no sheet feeding.
3
Lay up the roll sheet on the roll-placing table.
• Be careful about the sheet direction.
Unit : mm
Displays the detected
size of the leaf sheet.
Displays the current settings
of tool conditions.
To slightly hit.
Convex part
O K N G
