Maintenance Manual > Workflow > Cut Head Carriage > Replacement of the Auto Cutter Assy
Model CJV30/TPC Issued 2008.08.04 Revised 2008.09.17 F/W ver. 1.20 Remark
1.1
Rev.

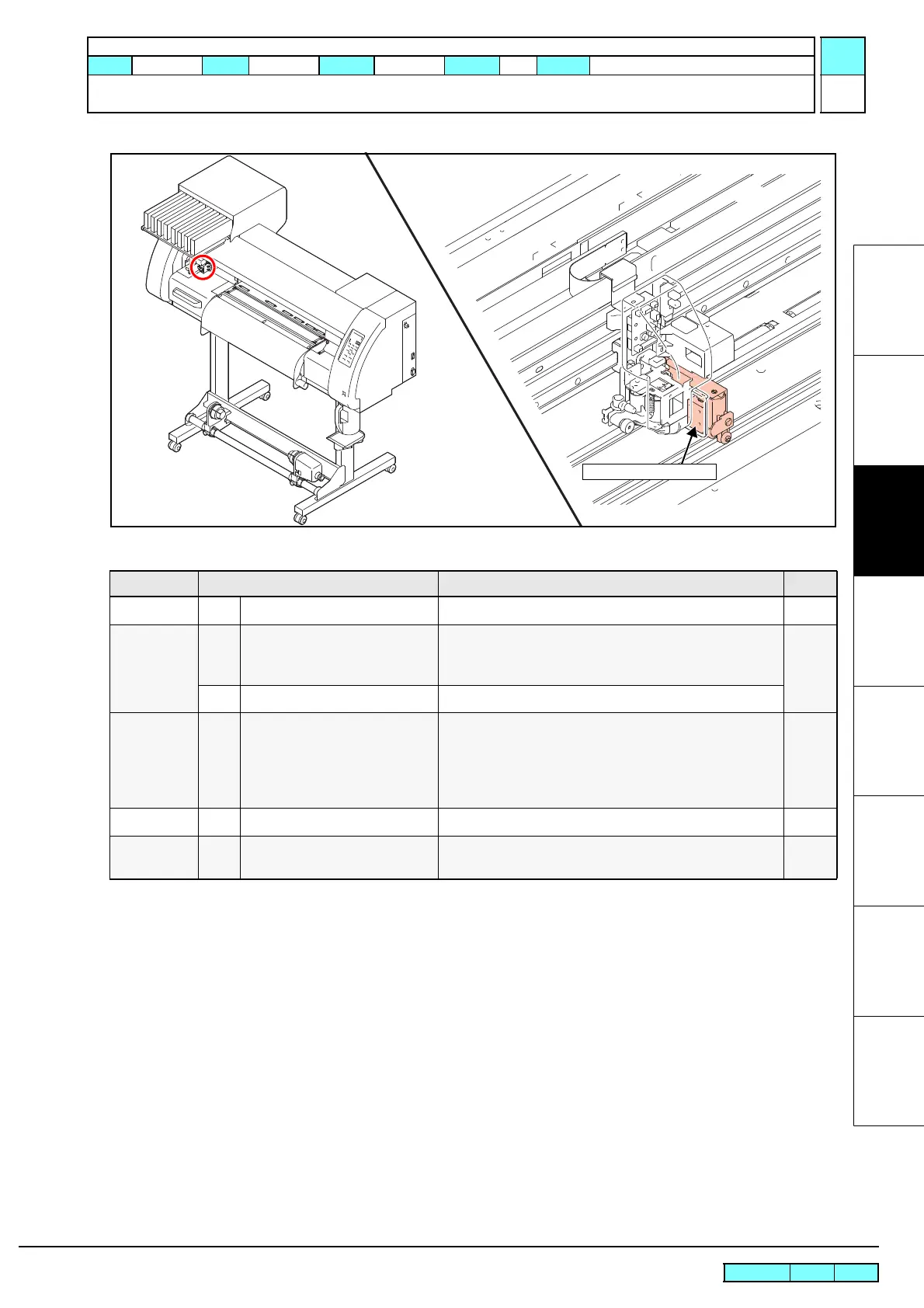

3.2.2 Replacement of the Auto Cutter Assy
 List of replacement procedures
Item Work operation Description Ref.
Covers
1.

Removal of covers, etc. Remove the C head cover, CY cover F and S guide. 6.1.1
Auto Cutter
Assy
2. 
Removal of the auto cutter assy. Be sure not to change the direction of the hook of the baffle
SP. If its direction is changed, the pen pressure and landing
are also changed.
6.3.1
3.

Mounting of the auto cutter assy. Mount the auto cutter assy.
Adjustment
4. 
Adjustment of the mounting
location of the cutter
Hold down the clamp lever and adjust the mounting location
so that the distance between the auto cutter assy and the
platen is set at 8.8 mm.
(If necessary, check to see if the magnet catcher and magnet
BKT are in contact with each other.)
4.3.2
Check
5.

Check the performance. Check the cutting position.
Covers
6. 
Mounting of the covers Mount the covers that have been removed.
Install the S guide while pushing it to the left.
6.1.1
Auto Cutter Assy

MIMAKI CJV30 Series Specifications

General

Cutting Function	Yes
Interface	USB 2.0, Ethernet
Power Supply	AC 100-240 V, 50/60 Hz
Print Head	Piezoelectric Inkjet
Resolution	1440 dpi
Print Resolution	Maximum 1440 dpi
Printing Technology	Solvent Inkjet
Print Speed	Up to 17.5 m²/h
Ink Type	Solvent Ink
Ink Colors	CMYK, White
Maximum Print Width	1610 mm (CJV30-160 model)
Media Width	1372 mm (54 inches)
Media Thickness	Maximum 1.0 mm
Cutting Force	500 g
Weight	180 kg (CJV30-160 model)
