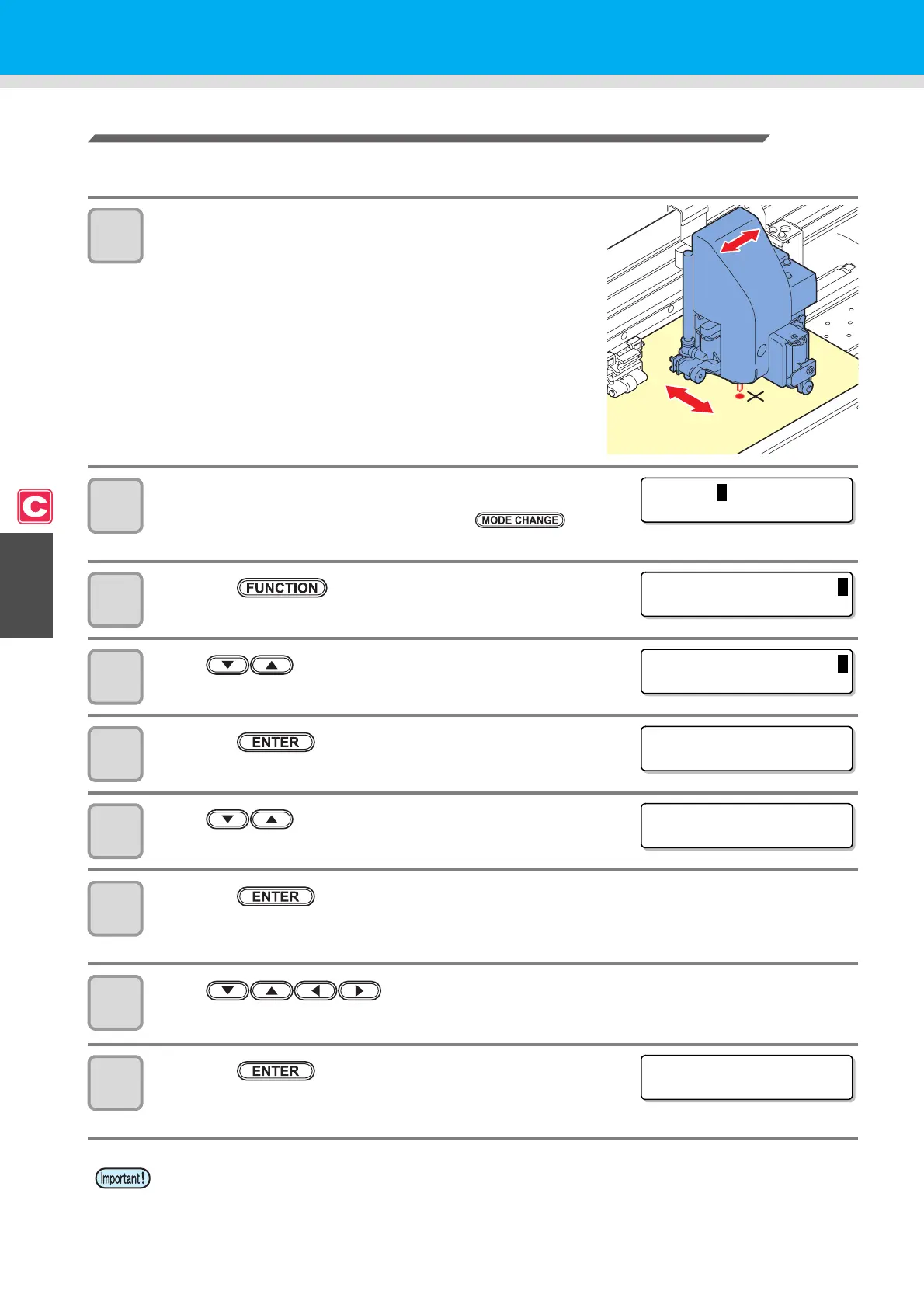

Correcting the Light Pointer Position
If the cutter unit fails to recognize any register mark properly, the possible cause is an error in the positional
relationship between the mark sensor and the light pointer. In this case, correct the position of the light pointer.
1
Install a water-based ballpoint pen
in the tool holder.
• When making an adjustment, use a special pen for the cutter
unit to reduce the fudge factor. Any pen color works for the
adjustment. You can order the special pen from the distributor
in your region.
2
Make sure that the machine is in cutting mode.
• If the machine is in printer mode, press the key to
switch the mode to cutting mode.
3
Press the key.
4
Press to select [MAINTENANCE].
5
Press the key twice.
6
Press to select [POINTER OFFSET].
7
Press the key.
• A 10 mm by 10 mm cross pattern will be plotted with a pen.
• The light pointer turns on and moves to the center of the cross pattern.
8
Press to adjust the light pointer position so that the center of
the light pointer is in alignment with the center of the cross pattern.
9
Press the key.
• The machine will return the screen in Step 1 after registering the
correction value.
• The value registered in the [POINTER OFFSET] is not initialized even by executing P. 4-37 "Initializing
the Settings".
