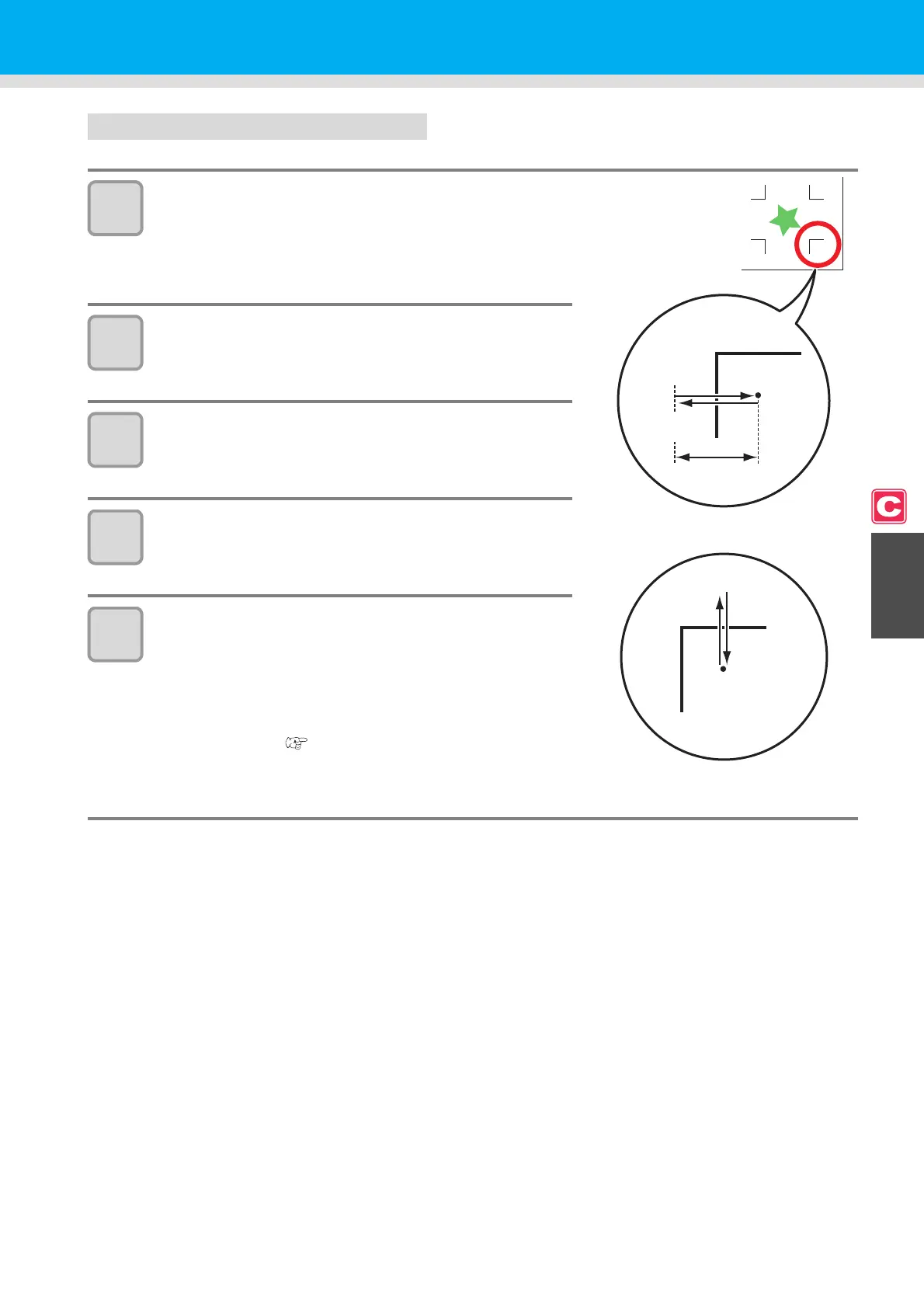

MIMAKI JV5 Series Operating Manual

4-19
Cutting out Data with Register Marks
4
Extended Functions – Cutting –
Detect operation
1
Scan in the X direction (plus direction) to confirm
that the line can be detected.
• The buzzer sounds when the line is detected. If the line is not
detected, the buzzer does not sound.
2
Scan in the X direction (minus direction) to confirm
that the line can be detected.
3
Scan in the Y direction (plus direction) to confirm
that the line can be detected.
4
Scan in the Y direction (minus direction) to confirm
that the line can be detected.
5
Confirm that the buzzer sounds 4 times upon
completion of Steps 1 to 4.
• When the detection behavior completes successfully, the
buzzer sounds 4 times.
• If the cutter unit failed to detect the line, perform "Adjust the
Sensitivity (Light Intensity) of the Mark Sensor LED
(Automatically)" ( P.4-21).
• If the cutter unit cannot detect the line successfully even after
you adjusted the sensitivity, verify the registration conditions
and contact our service office.
Minus
direction
Plus
direction
Mark size
Scan in the Y direction
Scan in the X direction
Plus
direction
Minus
direction
