Medium Size and the Grid Roller (CJV30-100)
The grid roller positions are determined by the size of the medium.
• To feed the medium smoothly, select the grid roller positions so that the medium can be held at equally
spaced intervals.
• When the grid rollers to be used are determined, adjust the pinch roller unit referring to "How to Adjust
the Pinch Roller" of P. 2-17.
• You can use any number of pinch roller units from 2 to 4.
• Adjust the pinch roller of both ends so that they are within the range of 10cm from medium left end and
2cm from medium right end. If adjusting them to the further position, it will remain uncut when cutting
the medium.

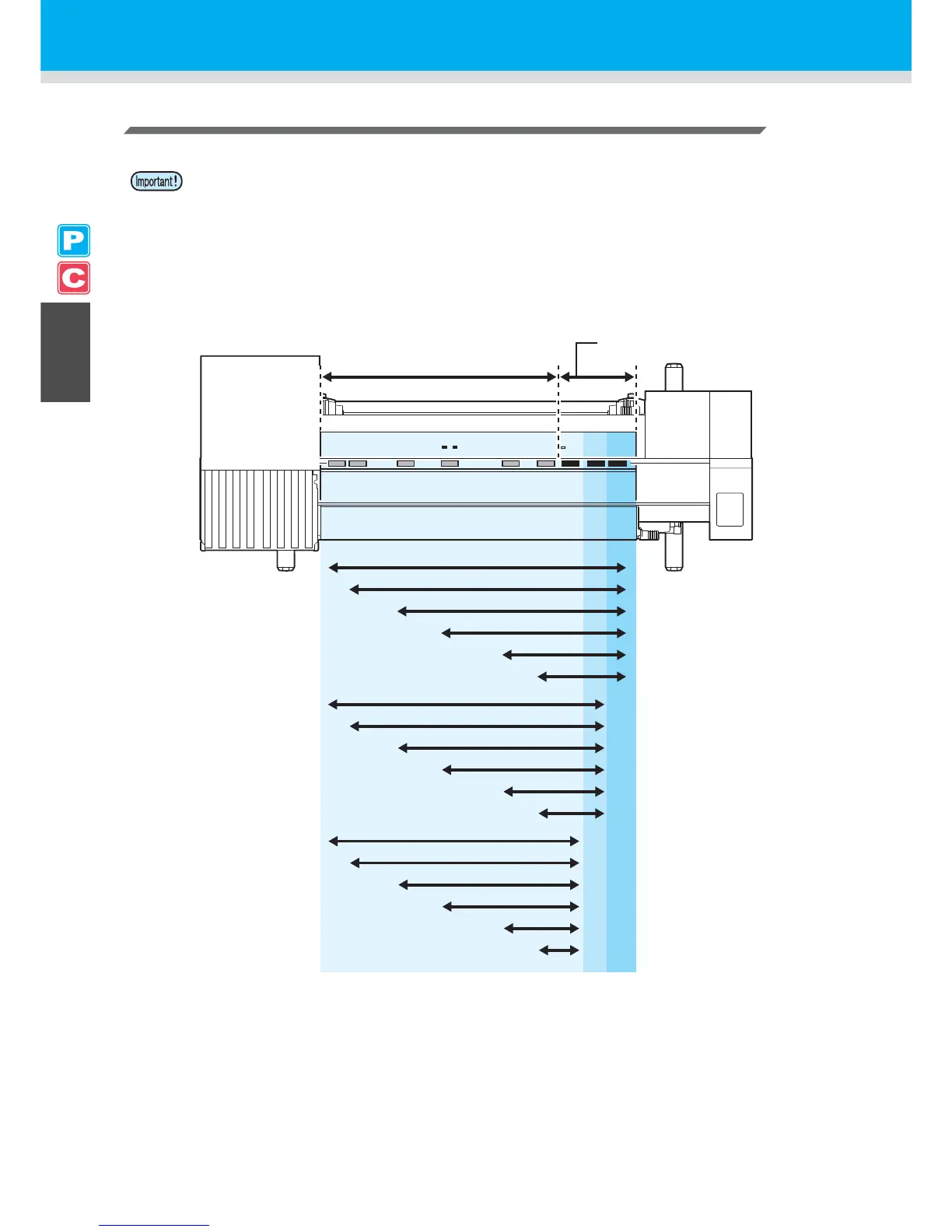

973 ~ 1030mm
973 ~ 1030mm
900 ~ 960mm
900 ~ 960mm
732 ~ 792mm
732 ~ 792mm
576 ~ 644mm
576 ~ 644mm
364 ~ 424mm
364 ~ 424mm
241 ~ 301mm
241 ~ 301mm
897 ~ 957mm
897 ~ 957mm
824 ~ 884mm
824 ~ 884mm
656 ~ 716mm
656 ~ 716mm
500 ~ 568mm
500 ~ 568mm
288 ~ 348mm
288 ~ 348mm
165 ~ 225mm
165 ~ 225mm
809 ~ 869mm
809 ~ 869mm
736 ~ 796mm
736 ~ 796mm
568 ~ 628mm
568 ~ 628mm
414 ~ 480mm
414 ~ 480mm
200 ~ 260mm
200 ~ 260mm
85 ~ 137mm
85 ~ 137mm
GR1
GR1
GR2
GR2
GR4
GR4
GR3
GR3
GR5
GR5
GR6
GR6
GR7
GR7
GR8
GR8
GR9
GR9
Determine the grid rollers to be used
according to the size of the medium.
The right end of the medium
should come within this range.
GR: Grid roller
