Setting a Medium
2
Basic Operations
Medium Size and the Grid Roller (CJV30-60)
The grid roller positions are determined by the size of the medium.
• To feed the medium smoothly, select the grid roller positions so that the medium can be held at equally
spaced intervals.
• When the grid rollers to be used are determined, adjust the pinch roller unit referring to "How to Adjust
the Pinch Roller" of P. 2-17.
• Be sure to prepare two or more pinch roller units.
• Adjust the pinch roller of both ends so that they are within the range of 10cm from medium left end and
2cm from medium right end. If adjusting them to the further position, it will remain uncut when cutting
the medium.

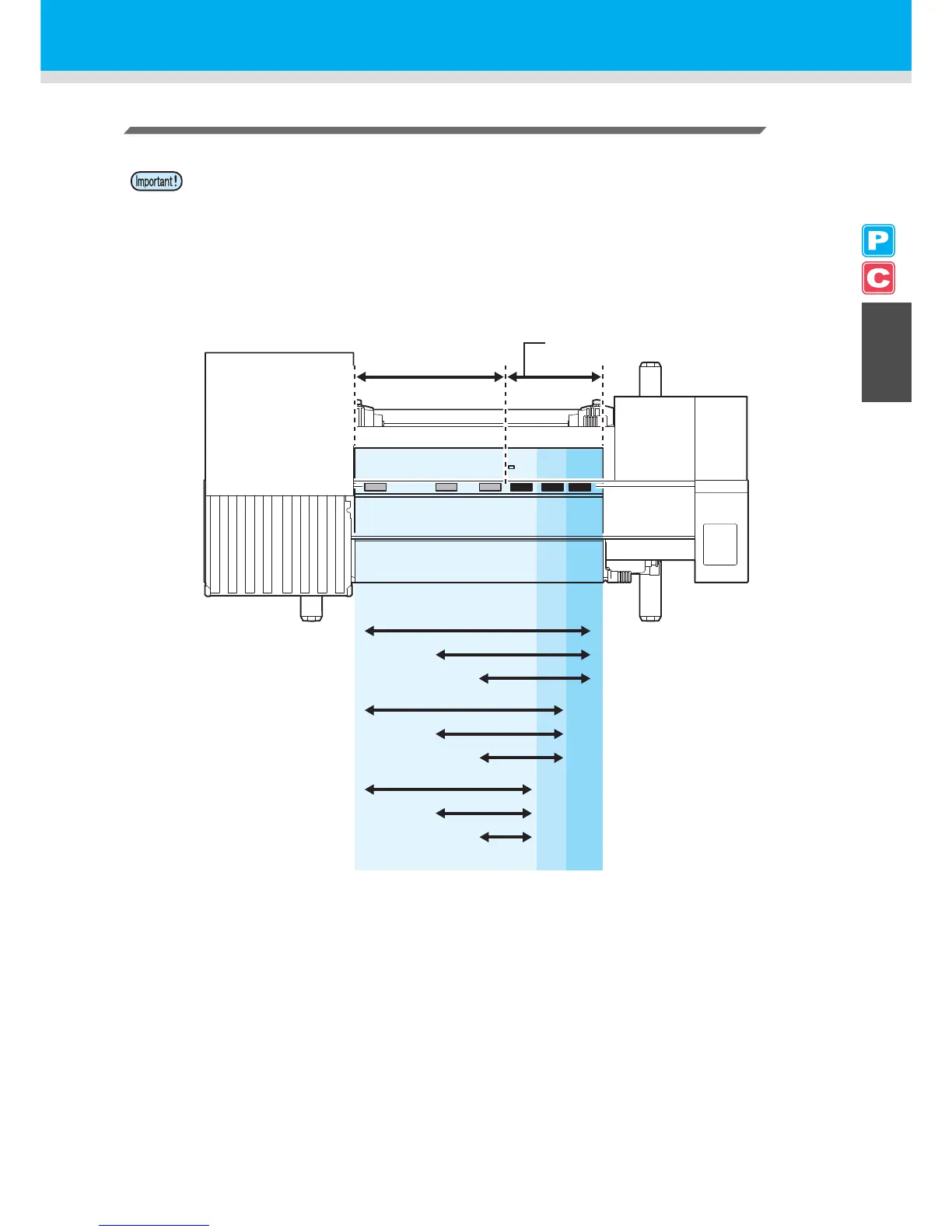

364 ~ 424mm364 ~ 424mm
241 ~ 301mm241 ~ 301mm
563 ~ 620mm563 ~ 620mm
480 ~ 547mm480 ~ 547mm
288 ~ 348mm288 ~ 348mm
165 ~ 225mm165 ~ 225mm
399 ~ 460mm399 ~ 460mm
200 ~ 260mm200 ~ 260mm
85 ~ 137mm85 ~ 137mm
GR1GR1GR2GR2GR4GR4 GR3GR3GR5GR5GR6GR6
Determine the grid rollers
to be used according to
the size of the medium.
The right end of the medium should
come within this range.
GR: Grid roller
