2 Theory of Operation
2.1 Overview
The monitor is intended for spot-check monitoring physiologic parameters, including SpO
2
,
Pulse Rate, NIBP and Temperature, on adult, pediatric, and neonatal patients in healthcare
facilities by clinical physicians or appropriate medical staff under the direction of physicians.

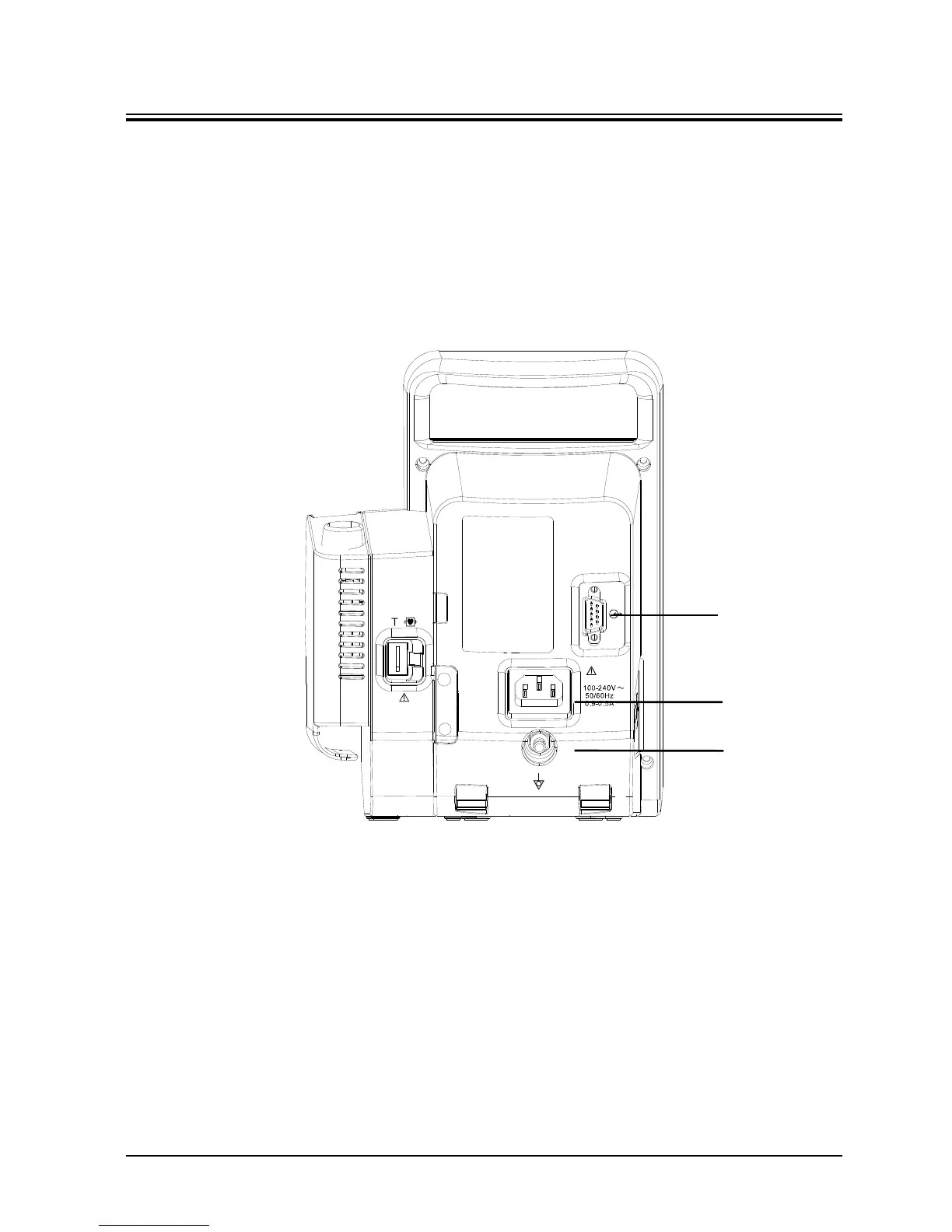

2.2 Connectors for Peripheral Devices
1. Input/Output connector (RS-232 connector)
This connector is used for software upgrade and DIAP communication.
2. AC power input
3. Equipotential grounding terminal:
When the equipment and other devices are to be used together, their
equipotential grounding terminals should be connected together to eliminate the
potential difference between them.
