Accutorr Plus™ Operating Instructions 0070-10-0692-02 2 - 9
Controls and Indicators Rear Panel
2.2 Rear Panel

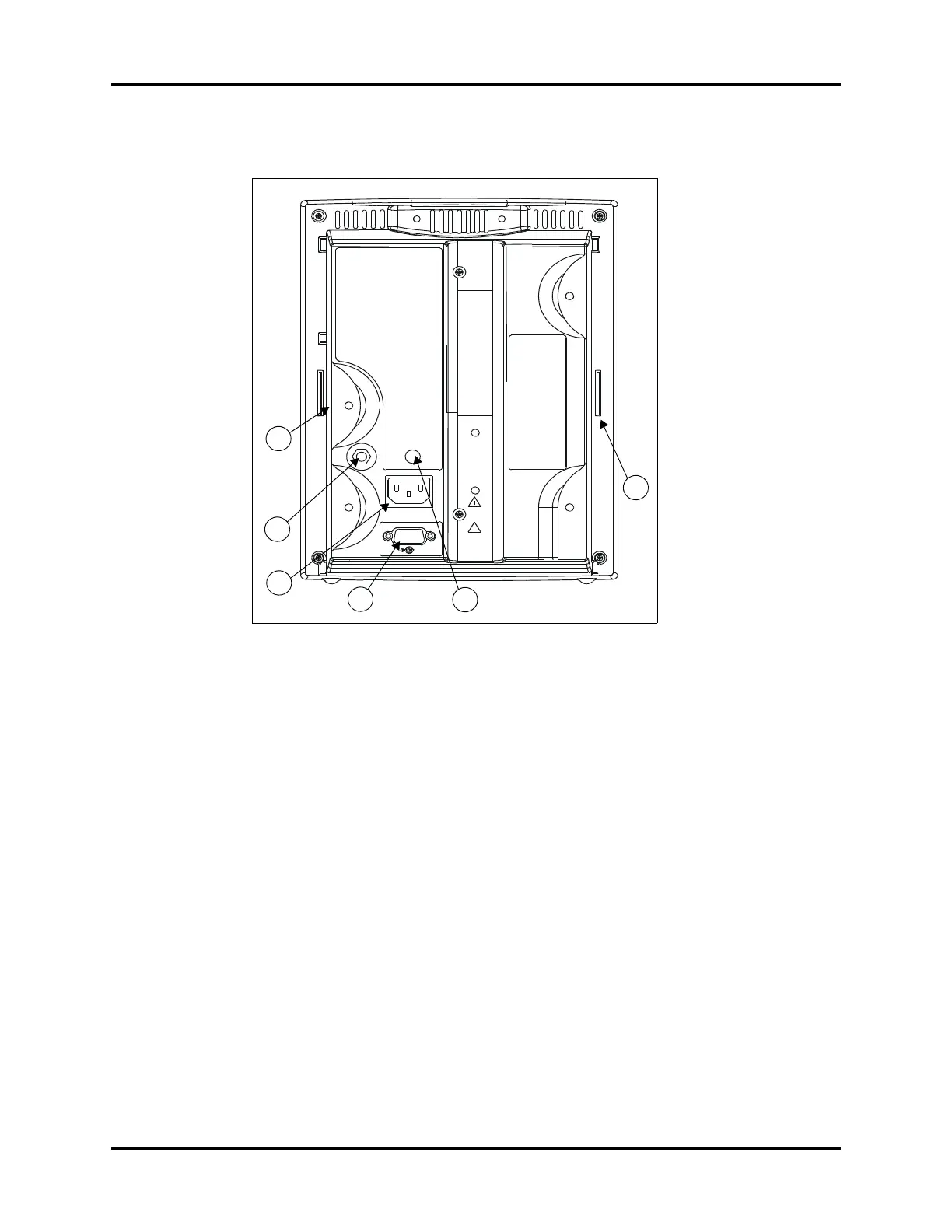

FIGURE 2-2 Rear Panel - All Units
41. Thermometer Module Connector
Used to attached one of the optional thermometer modules (PTM or AccuTemp IR).
42. Equipotential Lug
Provides equipotential bonding between hospital equipment.
43. AC Power Connector
Allows for A.C. power cord connection.
44. Communications Connector
Provides compatible communications to external devices and hospital’s nurse call and
information system.
CAUTION: The Communications Connector on the Accutorr Plus is only
for use with IEC 60601-1 compliant equipment.
45. Service Connector
Used by Technical Service Personnel.
46. Recorder Module Connector
Used to connect the optional recorder module.
