How to Attach Optional Thermometer and Recorder Modules Operation
3 - 38 0070-10-0692-02 Accutorr Plus™ Operating Instructions
3.17 How to Attach Optional Thermometer and Recorder
Modules
The Accutorr Plus can be configured with a Recorder Module and Thermometer Module.
3.17.1 To Attach the Recorder Module:
Looking at the rear panel of the unit, the Recorder Module is attached to the right side of the
Accutorr Plus.
1. Insure that the Accutorr Plus is OFF.
2. Insert the tab on the Recorder Module into the Recorder Module Connector (48) on the
Accutorr Plus. Push firmly to seat properly.
3. Use the 2 screws provided to secure the Recorder Module to the Accutorr Plus.
3.17.2 To Attach the Thermometer Module:
Looking at the rear panel of the unit, the Thermometer Module is attached to the left side of
the Accutorr Plus.
1. Insure that the Accutorr Plus is OFF.
2. Insert the tab on the Thermometer Module into the Thermometer Module Connector (42)
on the Accutorr Plus. Push firmly to seat properly.
3. Use the 2 screws provided to secure the Thermometer Module to the Accutorr Plus.

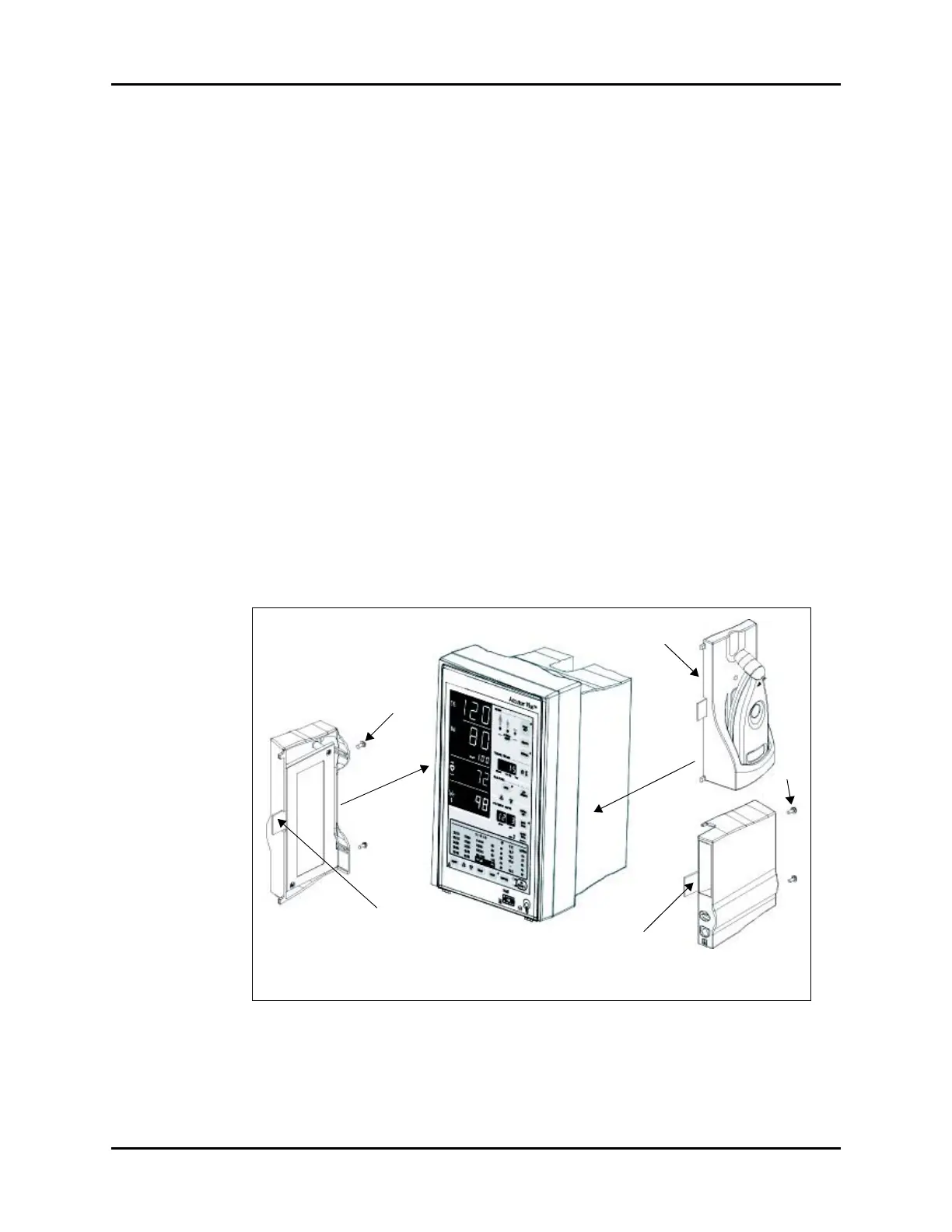

FIGURE 3-14 Attaching Optional Modules
Accutorr Plus with Trend
Screen and SpO
2
Tab
Screw
AccuTemp
Thermometer
Module
--OR--
Screw
Predictive
Thermometer
Module
Recorder
Module
Tab
