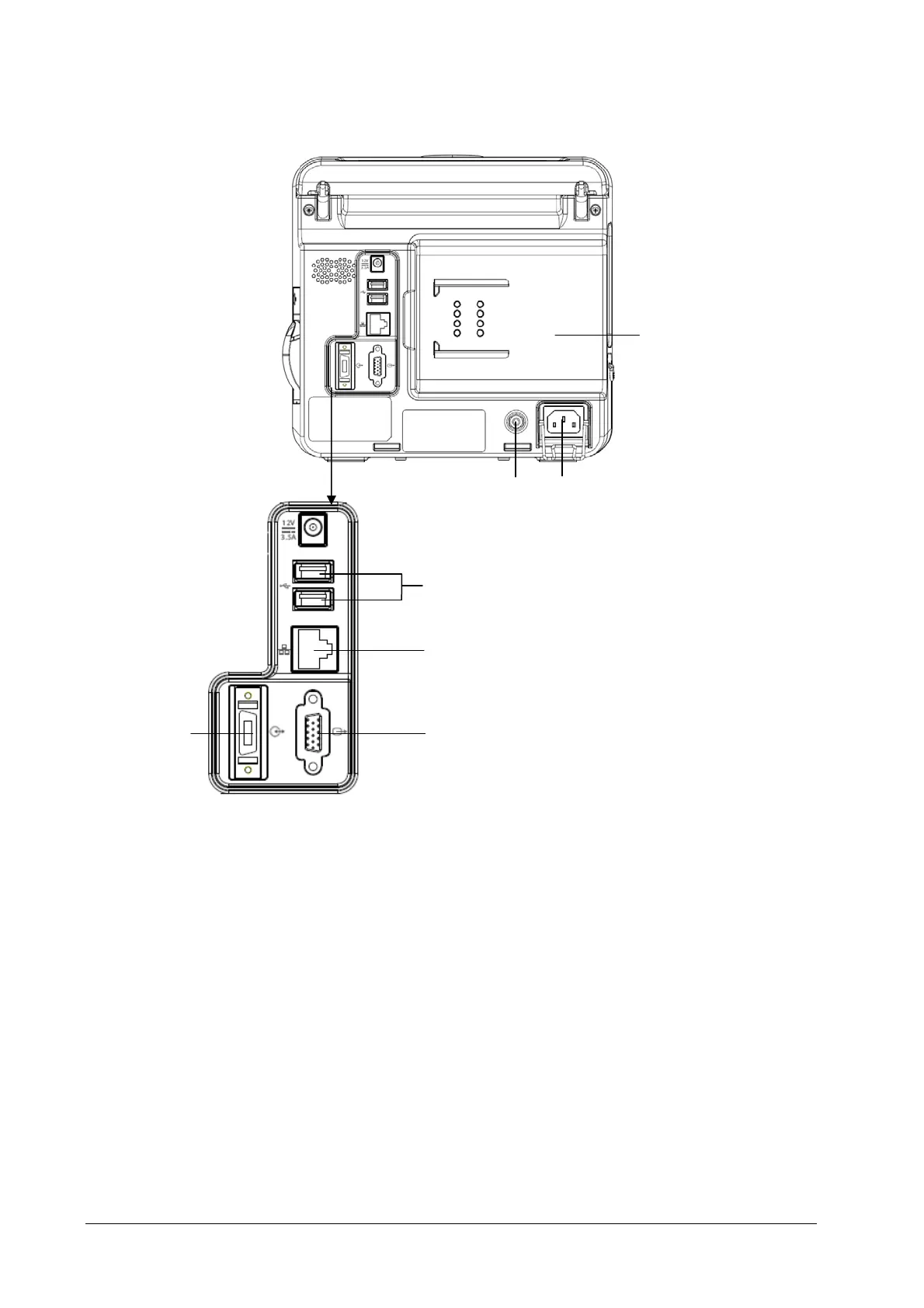

Passport 8/cPM 8 Rear View
1. Equipotential terminal: used to connect the equipotential terminal of other equipment.
2. AC power input: used to connect an AC power source (100 to 240 VAC, 50/60 Hz).
3. Parameter Module slot: used to connect the parameter module.
4. Multifunctional connector:
 Used to connect external devices and output defibrillator synchronization signals, nurse call signals, analog
output signals, measurement numerics, and alarm limits of parameter modules.
 Communicates with external devices via Datascope Improved ASCII Protocol (DIAP) protocol.
5. DC power input
6. General USB Connector: used to connect any USB-compatible peripheral device.
7. Network Connector: an RJ45 connector, used to connect an Ethernet network or a PC.
8. VGA Connector: used to connect a secondary display.
