8.2.4 Multi-parameter Assembly

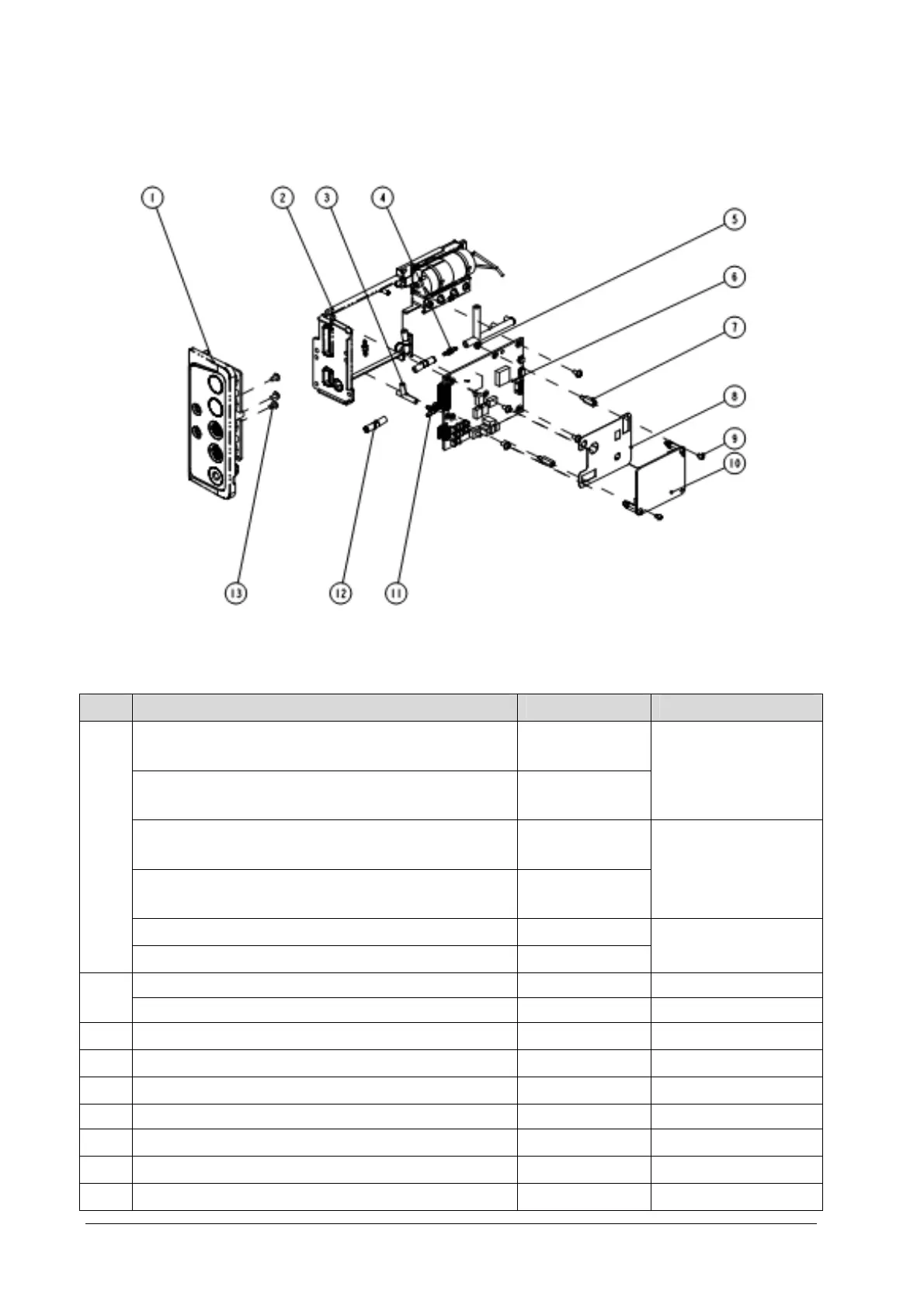

8.2.4.1 Exploded View
8.2.4.2 Parts List
SN Description FRU part number Remarks
1 Parameter connector assembly (Nellcor SpO
2
) 115-010794-00/
115-048882-00
For Passport 8 and cPM 8
Parameter connector assembly (Masimo SpO
2
) 115-010795-00/
115-048883-00
Parameter connector assembly (Passport 12, Nellcor SpO
2
, IBP) 115-010835-00/
115-048888-00
For Passport 12
Parameter connector assembly (Passport 12, Masimo SpO
2
, IBP) 115-010836-00/
115-048889-00
Parameter connector assembly (cPM 12, Nellcor SpO2) 115-010832-00 For cPM 12
Parameter connector assembly (cPM 12, Masimo SpO2) 115-010833-00
2 NIBP gas valve 082-000864-00 /
NIBP pump 801-9261-00040-00 /
3 3-way silicone tube / /
4 Plastic connector / /
5 Hexagon plastic nut, M3×0.5P, PC / /
6 Passport multi-parameter board PCBA (5-Lead, complete) 051-001063-01 /
7 Plastic hexagon bolt / /
8 SpO
2
board insulator / /
9 Screw, pan head Phillips, M3×4 / /
To Next Page
