4.1.2 Hardware Upgrade Method
4.1.2.1 Upgrading the Parameter Modules
The external parameter modules are ready for use once properly installed into the module slot on the back of the
monitor.
4.1.2.2 Upgrading Wireless Network Function
1. Install the Wi-Fi module onto the main board and then connect the Wi-Fi antennas as described in 7.4.2
Removing the Wi-Fi Module.
2. Select [Main Menu] → [Maintenance >>] → [User Maintenance >>] → enter the required password→
[Network Setup >>], and then set the [Network Type] to [WLAN]. Correctly set the monitor and connect to a
nearby wireless network as described in Network Connection in Passport 12/Passport 8 Patient Monitor
Operator’s Manual to confirm that the Wi-Fi function is available on the monitor.
4.1.2.3 Installing Hooks
For Passport 12/cPM 12 Patient Monitors

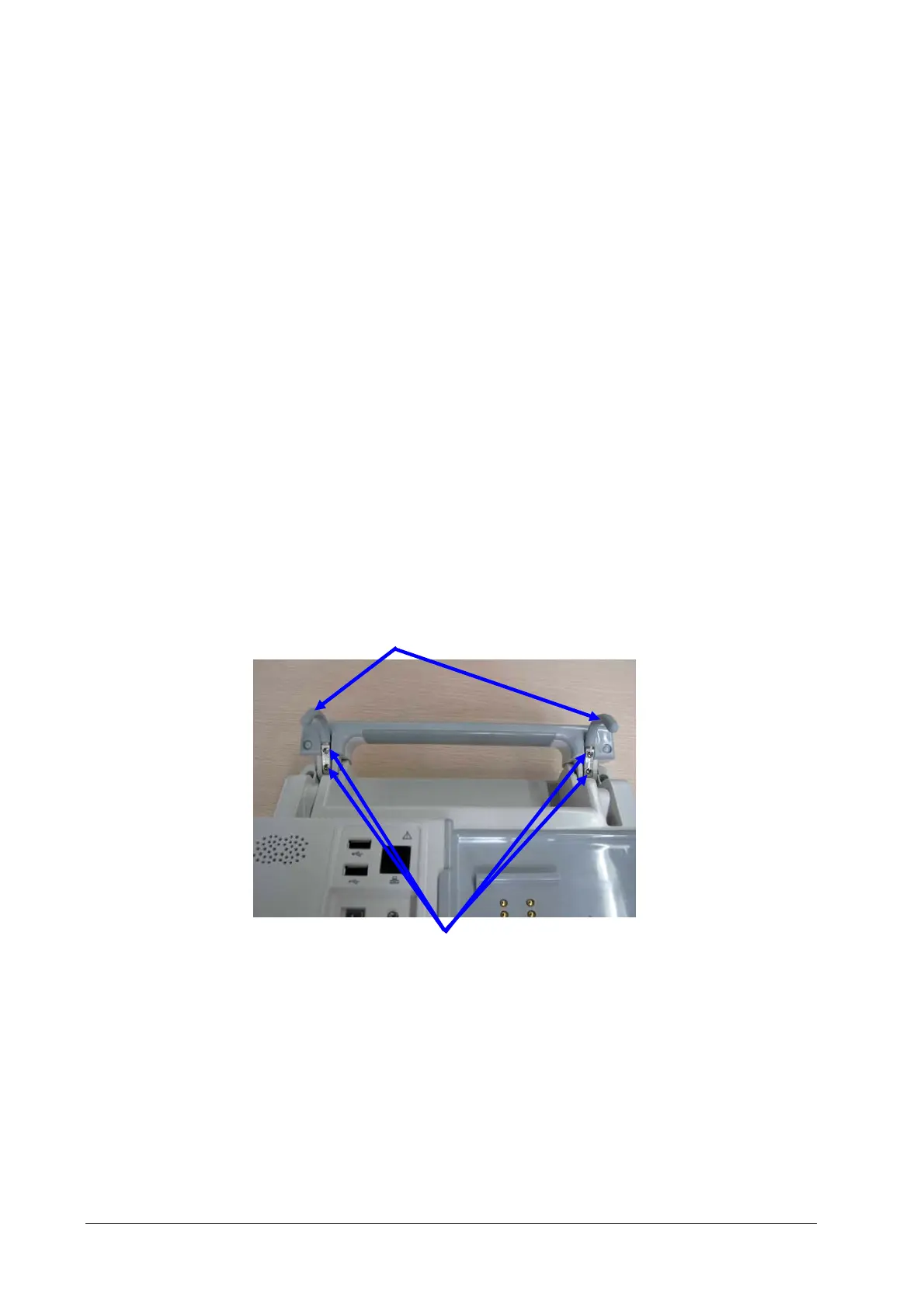

Fasten the two hooks on to the handle with four M3×10 screws with the hook facing downward, as shown below:
For Passport 8/cPM 8 Patient Monitors
1. Remove the handle shield, and install the hook to the handle as shown below. Then insert the positioning pin
into the corresponding hole on the hook assembly. Fasten the hook with two M3×6 screws.
2. Install and fasten the other hook onto the patient monitor as described.
Screw, Pan head with washer, Phillips M3×10
Hook
